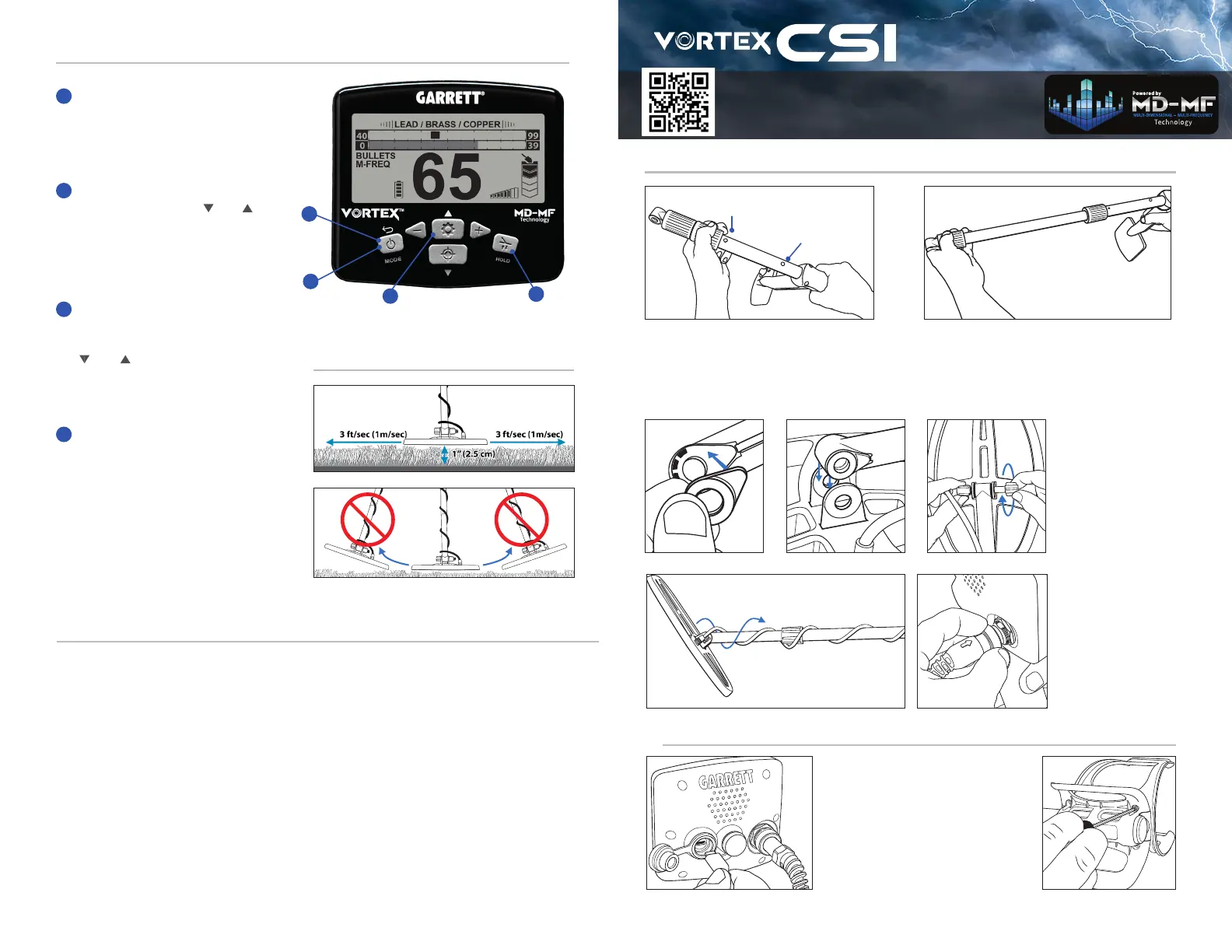

Quick Start Guide

ASSEMBLY

CHARGING

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.

Changes or modifications not expressly approved by

the party responsible for compliance could void the user’s

authority to operate the equipment.

This device complies with Industry Canada license-exempt

RSS standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including

interference that may cause undesired operation of the

device.

Ce produit est conforme aux normes RSS exemptes de

licence d’Industry Canada. Son fonctionnement est soumis

aux deux conditions suivantes: (1) ce dispositif ne peut pas

provoquer d’interférences et (2) ce dispositif doit accepter

toute interférence, y compris celles pouvant entraîner un

dysfonctionnement.

Z-Lynk Specications

Audio Delay: 17 ms

Audio Bandwidth: 30-18,000 Hz

Operating Frequency: 2406-2474 MHz

Transmit Power: 9 dBm EIRP

Certications: FCC, CE, UK, CA, IC, AS/NZ

Detector Specications

Operating Frequency: 5-25 kHz

Transmit Power: 41 dBuA/m at 10 m

Certications: FCC, CE, UK, CA, IC, AS/NZ

Loosen upper camlock and extend stem until

pin locks into rst pin position. (Note: Bypass

dive pin position beneath arm cu, not pictured.)

Hand-tighten upper camlock. (Note: Second pin

position can be used to extend stem length.)

2nd

Pin

1st

Pin

 Insert rubber washers

(raised side out) in end

of stem, place searchcoil

on at surface, connect

stem to searchcoil as

shown (stem extended

toward searchcoil tail), and

hand-tighten wingnut.

REGULATORY INFORMATION / INFORMACIÓN NORMATIVA / INFORMATIONS RÉGLEMENTAIRES

1561900 Rev A EC-11543 Jan. 2026 © Garrett Electronics, Inc.

 Unscrew battery charging port

cap. Insert USB-C cable into charge

unit. Use 10W (2A) or greater power

source for fastest charging time. Lower

wattage source will take longer. It is

recommended to charge your new

VortexCSI fully before rst use.

Adjust arm cu, if needed. 

Recommend that dust covers be secured when no charger cable or wired headphones are in use.

Loosen lower camlock and extend stem to

desired operating length. Hand-tighten lower

camlock. (Note: Do not tighten camlocks

without a stem inserted into them.)

 Wrap cable around

stem and attach it to

back of control box.

(Note: Before attaching,

align prong holes of

cable tip with prongs

in port.)

QUICK START STEPS

Power On

Press Mode/Power button for 1

second and release. Vortex™ CSI

powers on in last mode used and

is ready to search.

1

1

2

3

4

2

3

4

Select Mode

Tap Mode button and and to

select a dierent detection Mode,

if desired. Plus (+) and Minus (-)

buttons enable right and left

navigation in this context.

Adjust Settings

Press Menu button to access all

settings. Scroll up and down using

andarrows. Tap Plus (+) or

Minus (-) button to adjust selected

setting.

Ground Balance

Press and hold Ground Balance

button while bouncing coil above

ground until ground response

disappears or becomes as small as

possible.

CORRECT SWING

Visit garrett.com to download the full-length

Vortex

™

CSI User Manual.
