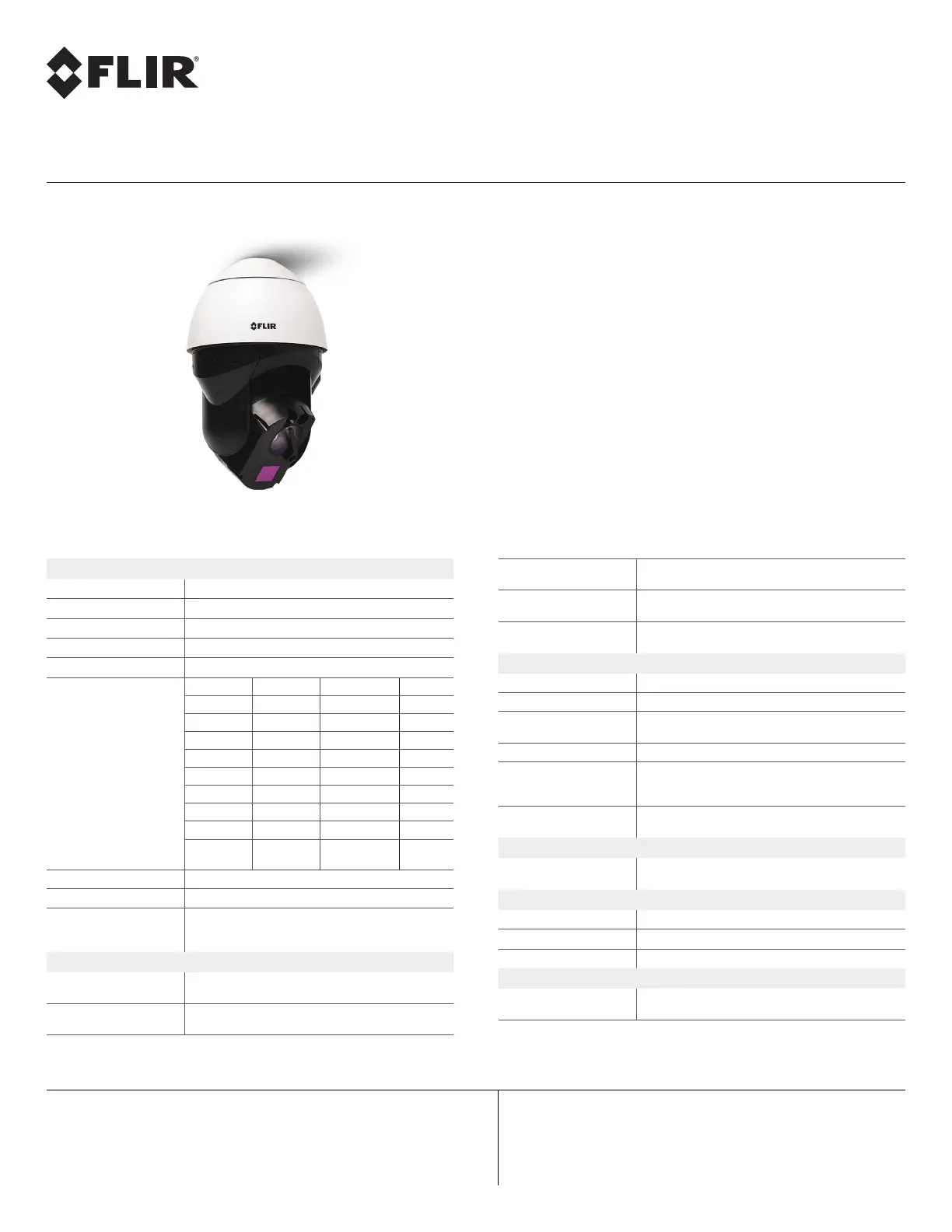

FLIR ELARA

TM

DX-SERIES

Multi-Spectral PTZ Camera

Key Features:

• Integrated thermal and visible sensors capture sharp video where

other PTZ cameras cannot

• Thermal sensor provides complete awareness in rain, snow, light

fog, and total darkness

• Built to handle the challenges of critical infrastructure sites and

other demanding locations

• Optional thermal zoom up to 5x with 15 mm to 75 mm zoom lens

• Enhanced cybersecurity measures safeguard system

from developing threats

• Easy-to-use web interface simplies set-up

across all FLIR security cameras

www.ir.com/security

For more information contact: Sales@TeledyneFLIR.com

or to find your local support number, visit: flir.com/contactsupport

www.teledyneflir.com

SPECIFICATIONS

This product is subject to United States export regulations and may require US authorization prior to

export, reexport, or transfer to non-US persons or parties. Diversion contrary to US law is prohibited.

For assistance with conrming the Jurisdiction & Classication of Teledyne FLIR, LLC products, please

contact exportquestions@ir.com. ©2023 Teledyne FLIR, LLC. All rights reserved.

Revised 05/12/23

Elara DX_Datasheet-LTR 23-0328

Specications subject to change. For the most up-to-date specications, please visit ir.com.

Thermal Sensor & Optics

Array Format640 × 480 and 320 × 240 pixels

Thermal Sensitivitiy< 50 mK@ 25°C

Detector TypeLong-life, uncooled VOx microbolometer

Pixel Pitch12 µm

Thermal Frame RateNTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz

Optical Characteristics

ModelFOVFocal LengthF#

DX-35050° × 38°4.3 mmF/1.0

DX-32424° × 18°9.1 mmF/1.0

DX-31212° × 9°18 mmF/1.0

DX-3066° × 5°36 mmF/1.0

DX-65050° × 38°8.7 mmF/1.0

DX-62424° × 18°18 mmF/1.0

DX-61212° × 9°36 mmF/1.0

DX-6088° × 6°55 mmF/1.0

DX-606z30° × 23° to

6° × 3°

15 mm to 75 mmF/1.2

E-ZoomContinuous E-zoom to 4×

Spectral Range7.5 μm to 13.5 μm

Focus RangeAthermalized, focus-free

[DX-606z: motorized continuous zoom; autofocus with minimum

focus range of 7 m (wide) to 18 m (narrow)]

Video

Video CompressionThermal: one channel of H.264 & M-JPEG

Visible: two independent channels of H.264 & M-JPEG

Streaming ResolutionThermal: QVGA to VGA

Visible: VGA to 4k

Thermal Image SettingsAuto AGC, Dynamic Detail Enhancement (DDE), Brightness,

Sharpness, Contrast

Thermal AGC Region of Interest

(ROI)

Default, Presets and User Denable to ensure optimal image

quality on subjects of interest

Image Uniformity Optimization

Automatic Flat Field Correction (FFC) - thermal and temporal

triggers

System Integration

Ethernet10/100/1000 Mbps

Network APIsFLIR SDK, FLIR CGI, ONVIF Prole S

Digital I/OInput: 4 Sets / 5 V 10 kΩ pull up

Output: 2 Set / Relay output, max. 130 mA 24 VDC/AC

Audio I/OBi-directional audio - connection - terminal block

IlluminationUp to 200 m NIR illumination

Distance: up to 200 m (656 ft) | 6° / 30 / 90°

Peak emission wavelength: 850 nm

Wiper

Wiper is standard and camera is compatible with a washer

accessory

Network

Supported ProtocolsIPV4, HTTP, UPnP, DNS, NTP, RTSP, RTP, TCP,

UDP, ICMP, IGMP, DHCP, ARP

Pan / Tilt Performance

Pan Angle / SpeedContinuous 360°- 0.1° to 90° /sec

Tilt Angle / Speed-10° to 190° - 0.1° to 60°/sec

Programmable Presets256

General

Input Voltage24 VAC (±10%)

Universal POE injector
