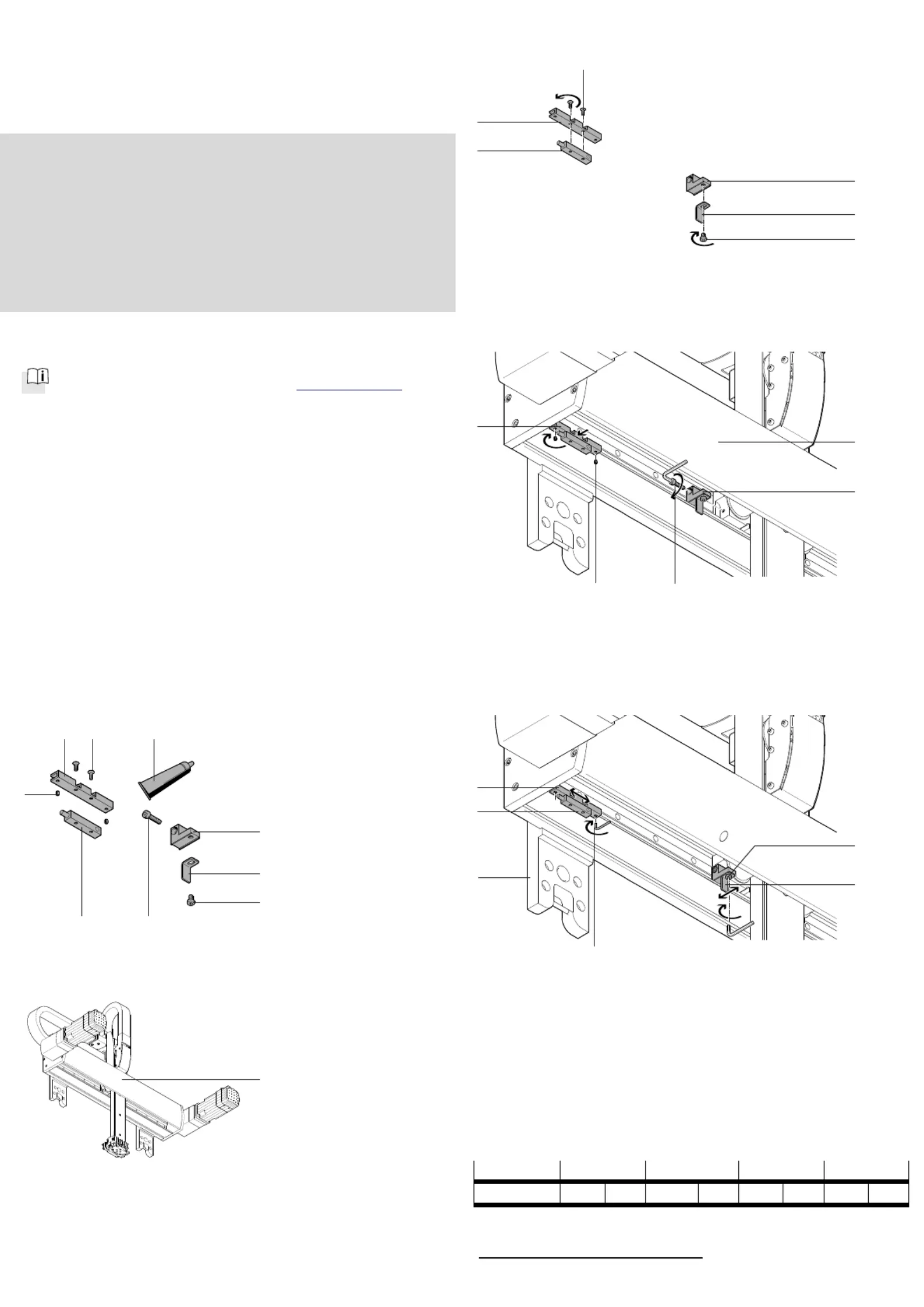

Assembly instructions (Original instructions)

8079064

2017-09a

[8079066]

†‡

Sensing kit

EAPR-E17-S

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

1.Further applicable documents

All available documents for the product www.f

esto.com/pk

Observe further applicable documents:

Description of the linear gantry aJ

Operating instructions for the proximity sensor 5

2.Safety

Switch off power supply and compressed air before mounting work.

Comply with tightening torques ( Table).

Secure mounting components 34, , 689 and with adhesive .

Observe the safety data sheet of the adhesive 9 from the original

manufacturer.

3.Use for intended purpose

Sensing kit EAPR-E17-S:

Mounting for the proximity sensor 5 as limit switch on the Y-axis of the

linear gantry aJ.

4.Scope of delivery

22055d_1

1Retainer

2Switch lug

3Screw

4Screw

5Proximity sensor

SIES-Q8B

6Threaded pin

7Adapter

8Screw

9Adhesive

LOCTITE 243

(1x)

(1x)

(1x)

(1x)

(1x)

(2x)

(1x)

(2x)

(1x)

5.Not in scope of delivery

22055d_2

aJLinear gantry

EXCT

(1x)

6.Mounting

22055d_3

Att

ach switch lug 2 with the screw 3 to the retainer 1.

Place the proximity sensor 57 on the adapter .

Cable of the proximity sensor 5 is not in the working space.

Mount the proximity sensor 58 with the screws .

22055d_4

Place the reta

iner 1 to the left or right on the slide of the Y-axis of

the lineargantry aJ.

Mount the retainer 14 with the screw .

Place the adapter 7 on the rail of the Y-axis on the linear gantry aJ.

Attach the adapter 76 with the threaded pins .

22055d_5

Push switc

h lug 2 against the proximity sensor 5.

Adjust switch lug 2.

Sensing distance ≤ 1 mm

Tighten screw 3.

Position the proximity sensor 5 at the required location.

Tighten threaded pins 6.

Adapter 7 is clamped.

Attach the cable of the proximity sensor 5, e. g. in the profile slot or to

the mounting plate (A).

7.Screw sizes and tightening torques M

A

1)

EAPR-E17-S 3

3

3

33 [Nm]4

4

4

44[Nm] 6

6

6

66[Nm]8

8

8

88[Nm]

M4x6 2.9 M4x16 2.9 M3x4 1 M3sx80.8

1)

Tolerance for tightening torqueM

A

without indication of tolerance± 20 %

3

2

1

4

5

6

7

8

aJ

9

5

1

2

3

7

8

7

6

4

1

aJ

2

3

5

7

6

A
