ALUMINIUM HOUSED RESISTOR; PROFILE 40 x 20, 20 x 40– PHBH/PHBV
B-51, Electronic Complex, ECIL PO, Hyderabad, India 500062. This publication provides indicative information. A contract Errors and omissions excepted (E & OE).
Telephones ++91 (0)40 27120283, 27126228 Fax 27126221. for supply or purchase should be jointly agreed to separately. Specifications are subject to change.
Email sales@peccomponents.com
Website afted/Revised Date: - 22/12/2022 www.peccomponents.com Dr
All dimensions are in mm
GENERAL SPECIFICATION
Working Voltage
690 VAC / 1100 VDC.
Dielectric Strength
3500VAC @ 1 min.
Isolaon Resistance
> 20 MΩ.
Resistance Tolerance
5%, 10%
Operang Temperature
-40°C to + 70°C
Temperature Coefcient
< ± 200ppm
Cable- Standard
300mm, AWG 18 AWG 14. –
Cable Variants
We can supply specied dierent cables lengths with
connectors or ferrule ends.
Type
Power
@
40°C,
W
Temp
Rise at
Rated
Power,
°C
Width
(W) ± 1
Height
(H) ± 1
Length
(L) ± 1
Pitch
(P) ± 1
Slot
Width
(S) ± 0.2
Lateral
Distance
(D ) ± 0.2
Res Ω
±10%
PHBH100
PHBV100
60
230
40
20.6
100
82
4.3
8
0.5- 300
PHBH150
PHBV150
80
230
40
20.6
150
132
4.3
8
0.5- 500
PHBH165
PHBV165
100
240
40
20.6
165
147
4.3
8
1.0- 750
P H210 HB
PHBV210
125
240
40
20.6
210
192
4.3
8
1.0- 1000
PHBH240
PHBV240
150
250
40
20.6
240
222
4.3
8
1.0- 1000
PHBH300
PHBV300
180
250
40
20.6
300
282
4.3
8
1.0- 1000
PHBH360
PHBV360
200
250
40
20.6
360
342
4.3
8
2.0- 1000
The PHBH/PHBV series of aluminium housed
compact braking resistor are electrically insulated
and small in size. They are carefully designed to
withstand high pulse loads, as compared to their
average power rang. These resistors are
protected against dust accumulaon due to the
all-round metal casing. They are typically rated at
IP54.These resistors are ideally used as power
breaking resistors for power drive systems,
industrial robots, elevators and cranes.
CACR-LE2-6-W60-V | 8198088 2023-06 [8198089]
` Precision Electronic Components Mfg. Co.
Premium Grade Components
For Original, Innovative and Cost- Effective Solutions to demanding Specifications
ALUMINIUM HOUSED RESISTOR; PROFILE 40 x 20, 20 x 40– PHBH/PHBV
B-51, Electronic Complex, ECIL PO, Hyderabad, India 500062. This publication provides indicative information. A contract Errors and omissions excepted (E & OE).
Telephones ++91 (0)40 27120283, 27126228 Fax 27126221. for supply or purchase should be jointly agreed to separately. Specifications are subject to change.
Email sales@peccomponents.com
Website afted/Revised Date: - 22/12/2022 www.peccomponents.com Dr

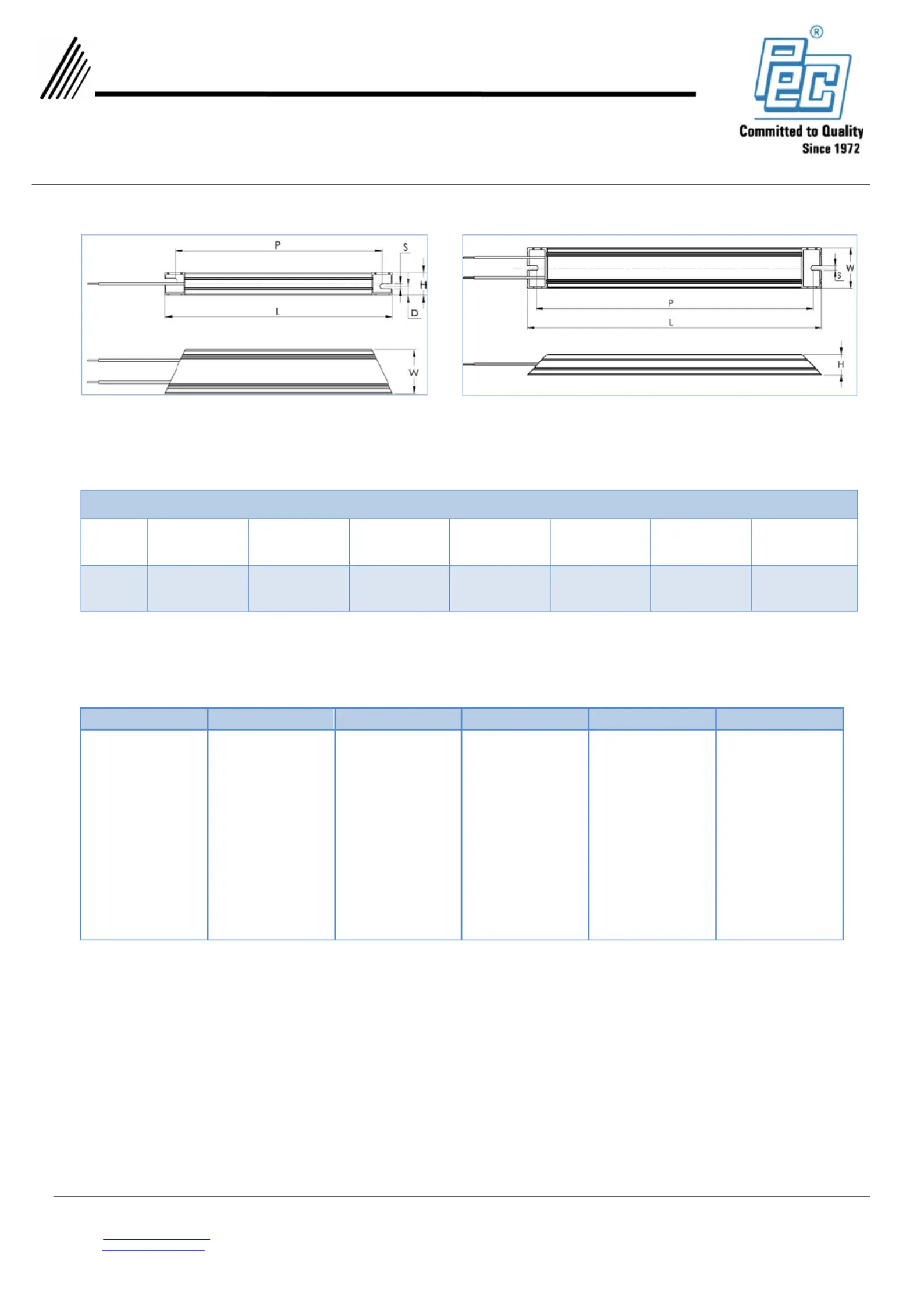

COMPONENT DRAWING:
PHBV TYPE PHBH TYPE
*These overload factors are valid for a total cycle me of maximum 120s
ORDERING CODE:
PEC Type
Ohmic Value
Tolerance
Voltage
Termination
UL Rating
PHBH/PHBV100
PHBH/PHBV150
PHBH/PHBV165
PHBH/PHBV210
PHBH/PHBV240
PHBH/PHBV300
PHBH/PHBV360
0.5 Ω » 0 R5
10 Ω » 10R
1000 Ω »1K0
5% » J
10% » K
Standard » S
1000V » M
Cable C »
Special » M
Non UL » X
FULL PART NUMBER: PHBH300-4R7-JS CX
SHORT TERM OVERLOAD
Duty
Cycle
60%
40%
25%
15%
6%
3%
1%
Over load
Factor
1.5
2.2
3.0
4.2
8.2
13
22
CACR-LE2-6-W60-V | 8198088 2023-06 [8198089]
` Precision Electronic Components Mfg. Co.
Premium Grade Components
For Original, Innovative and Cost- Effective Solutions to demanding Specifications
ALUMINIUM HOUSED RESISTOR; PROFILE 40 x 20, 20 x 40– PHBH/PHBV
B-51, Electronic Complex, ECIL PO, Hyderabad, India 500062. This publication provides indicative information. A contract Errors and omissions excepted (E & OE).
Telephones ++91 (0)40 27120283, 27126228 Fax 27126221. for supply or purchase should be jointly agreed to separately. Specifications are subject to change.
Email sales@peccomponents.com
Website afted/Revised Date: - 22/12/2022 www.peccomponents.com Dr
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Precision Electronic Components Mfg. Co., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “PEC”),
disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to this
product.
PEC makes no warranty, representation, or guarantee regarding the suitability of the products for any particular purpose or the continuing
production of any product. To the maximum extent permitted by applicable law, PEC disclaims (i) any and all liability arising out of the
application or use of any product, (ii) any and all liability, including without limitation special, consequential, or incidental damages, and (iii) any
and all implied warranties, including warranties of fitness for particular purpose, non-infringement, and merchantability.
Statements that are regarding the suitability of products for certain types of applications are based on PEC’s knowledge of typical requirements
often placed on PEC products in generic applications. Such statements are not binding statements about the suitability of products for a
particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product
specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different
applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer
application by the customer’s technical experts. Product specifications do not expand or otherwise modify PEC’s terms and conditions of
purchase, including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, PEC products are not designed for use in medical, life-saving, or life-sustaining applications or for use
in any other application in which the failure of the PEC product could result in personal injury or death. Customers using or selling PEC
products not expressly indicated for use in such applications do so at their own risk. Please contact authorized PEC personnel to obtain written
terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document or by any conduct of
PEC. Product names and markings noted herein may be trademarks of their respective owners.
RoHS Statement
Precision Electronic Components Mfg. Co. hereby certifies that all its products that are identified as RoHS-Compliant fulfil the definitions and
restrictions defined under Directive 2011/65/EU of the European Parliament and of the Council of June 8, 2011 on the restriction of the use of
certain hazardous substances in electrical and electronic equipment (EEE) recast, unless otherwise specified as non-compliant.–
