IMPORTANT:

Go to www.extron.com for the

complete user guide

, installation

instructions, and specifications.

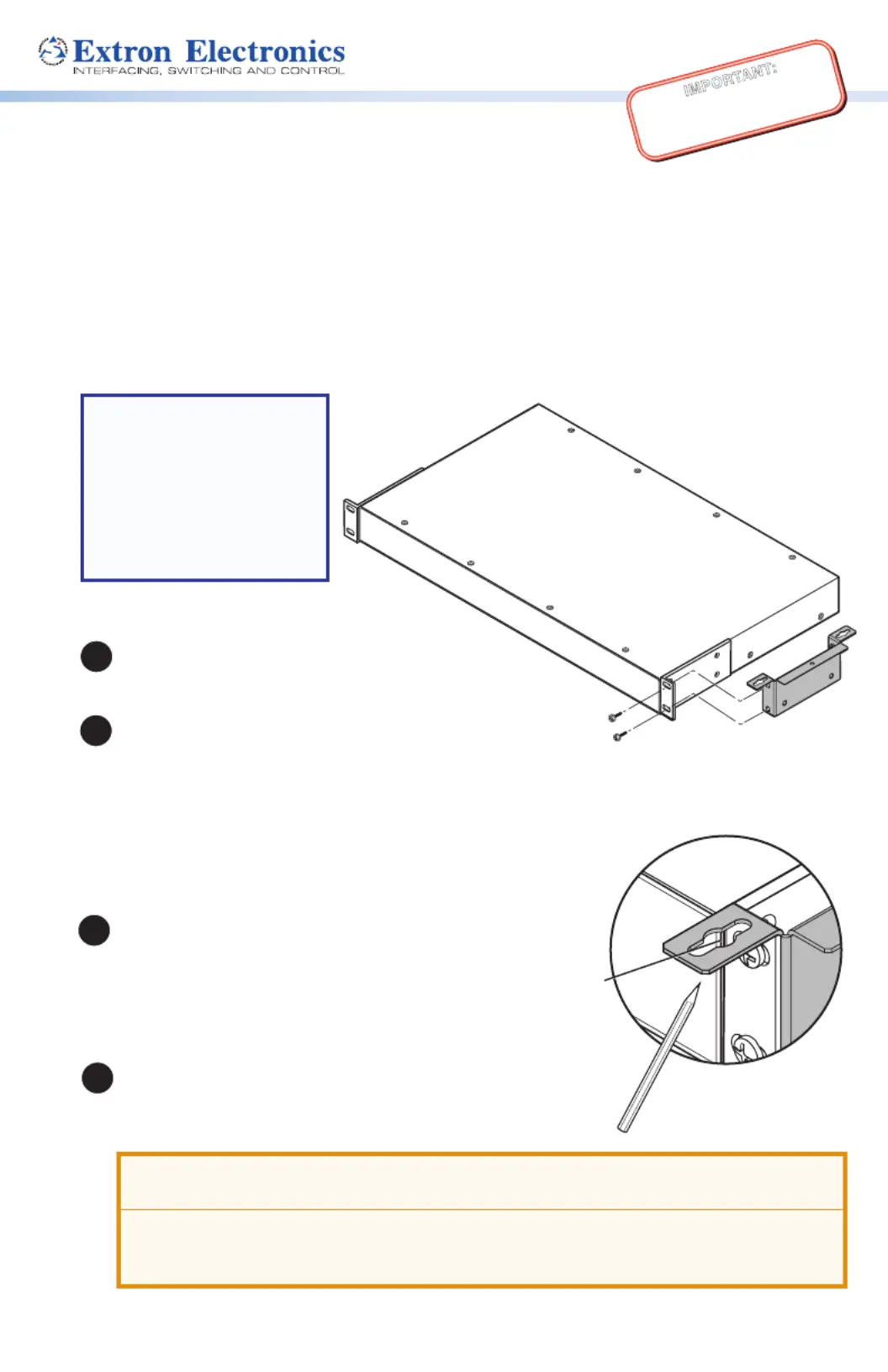

UTM 100 and UTM 150 • Installation Guide

The Extron UTM 100 and UTM 150 under-table mounts accommodate 1U and 2U full rack

width products. Follow the steps below to assemble and install the UTM 100 and UTM 150

under a desk or table.

Installing the UTM 100 (Primary Mount) on the Product

Mounting the UTM 100 Assembly

Follow the steps below to attach the UTM 100 mounts to the primary product. Attach a UTM on

each rack ear (left and right).

NOTE:Rack mounts or

rack shelf kits may be

purchased separately

for products that do

not have rack ears (see

www.extron.com

for models and part

numbers).

ATTENTION:Do not drill through the table or furniture. If the table is too thin or of

a different material for the supplied screws, use an appropriate type and length.

ATTENTION :Ne perçez pas à travers la table ou le meuble. Si la table est trop

ne ou faite dans un matériau différent de celui pour lequel les vis fournies sont

prévues, utilisez un type de matériau et une longueur appropriés.

Use the screws provided with the rack-mounted product to

attach the UTM 100.

1

2

Align the holes of the UTM 100 with the holes of the

rack ear, as shown at right.

Mounting

Hole

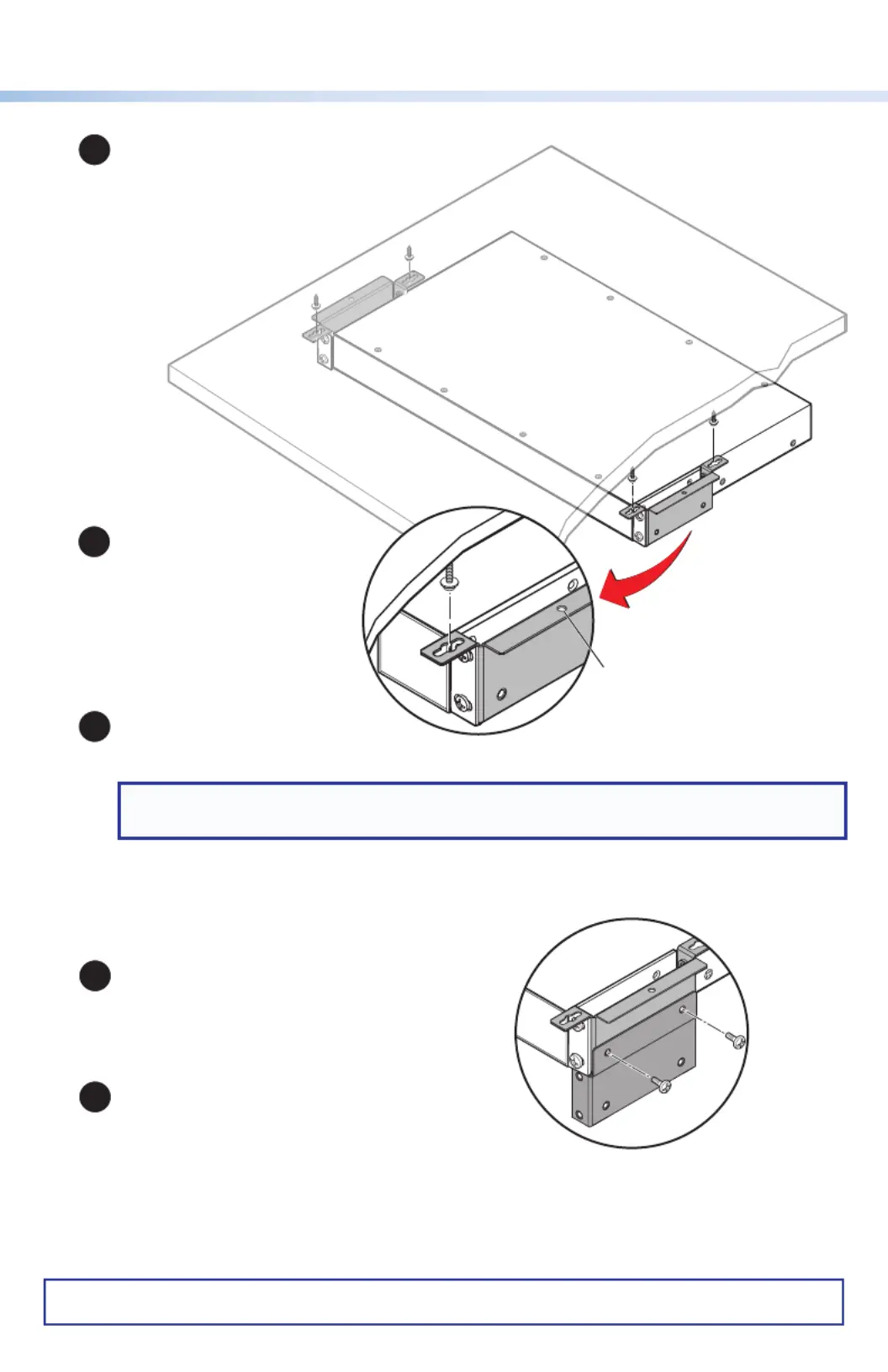

Hold the UTM 100 assembly under the desk or table at the

mounting location, and mark the locations of the four

mounting holes.

3

Drill a 3/32 inch (2.38 mm) diameter pilot hole at each of the four

marked locations.

4
