1

IMPORTANT:

Go to www.extron.com for the

complete user guide and installation

instructions befor

e connecting the

pr

oduct to the power sou

rce.

DA4HD4KPLUS and

DA6HD4KPLUS • Setup Guide

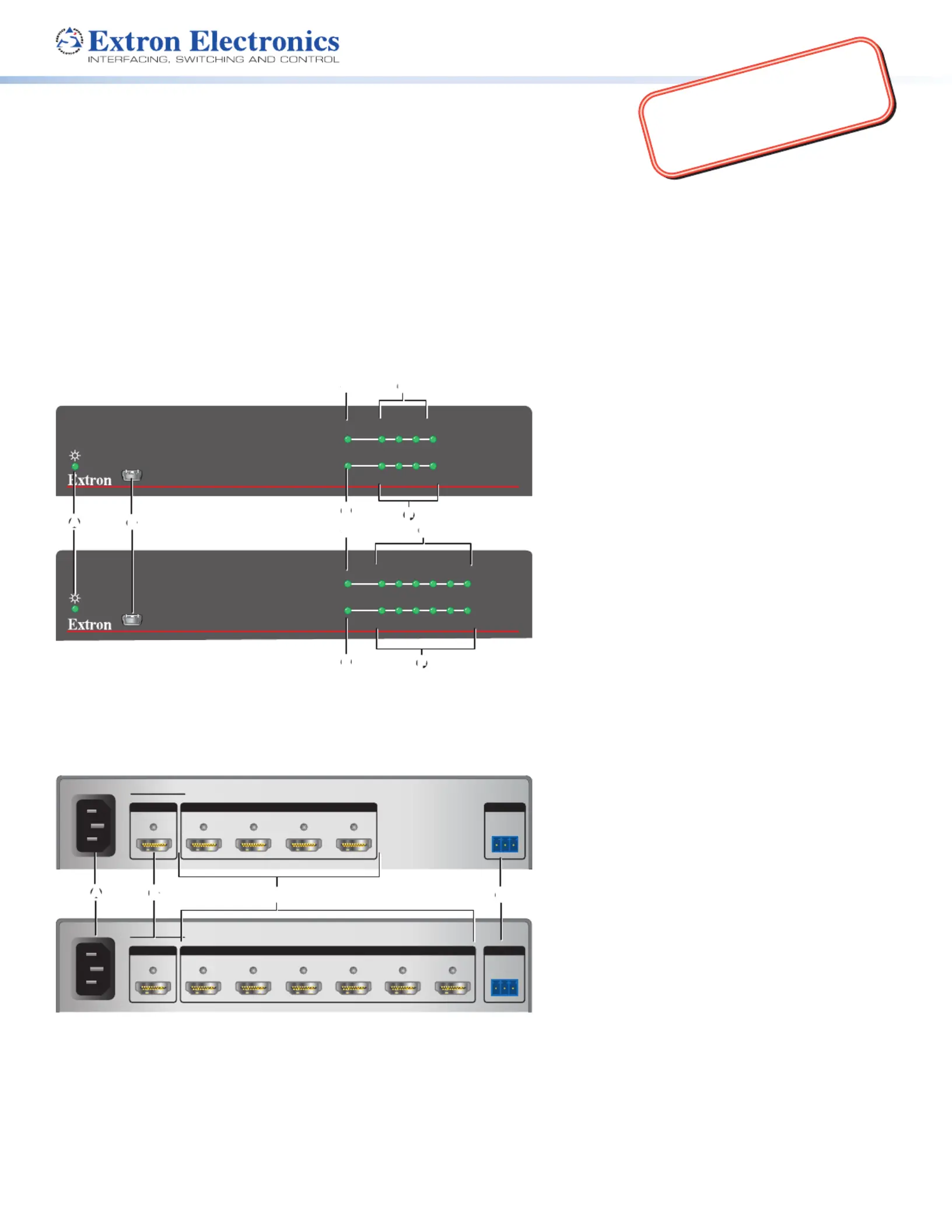

Overview

The Extron DA4HD4KPLUS and DA6HD4KPLUS distribution ampliers distribute one HDMIinput signal to four or six outputs 

simultaneously at resolutions up to UHD and 4K@60Hz 4:4:4, following the HDMI2.0b and HDCP2.2 specications. This setup

guide provides basic instructions for installation by an experienced installer.

For complete instructions, see the  at DAHD4KPLUSSeries User Guidewww.extron.com.

Front Panel

E

F

F

E

B

A

D

DA6 HD 4K PLUS

HDMI DISTRIBUTION AMPLIFIER

CONFIG

HDCP

1234

SIGNAL

INPUTOUTPUTS

56

DA4 HD 4K PLUS

HDMI DISTRIBUTION AMPLIFIER

CONFIG

HDCP

1234

SIGNAL

INPUTOUTPUTS

C

C

D

Figure 1. DA HD 4K PLUS Front Panels

Rear Panel

A

B

D

C

50/60 Hz

100-240V ~ 0.3A MAX

DA6 HD 4K PLUS

RS-232

4

36

521

TxRxG

OUTPUTSREMOTEINPUT

50/60 Hz

100-240V ~ 0.3A MAX

DA4 HD 4K PLUS

RS-232

4321

TxRxG

REMOTEOUTPUTSINPUT

Figure 2. DA HD 4K PLUS Rear Panel Connections

A

— Lights when power is Power status LED

applied to the unit.

B

— Used for SIS or PCS to USB Config port

configure, monitor, and update firmware on the

unit.

C

— Lights when a TMDS signal is Input Signal LED

detected on the HDMI input. If the source requires

HDCP encryption, this LED lights only when HDCP

is authenticated.

D

— Light when HPD is Output Signal LEDs

detected from the corresponding sink device and

when a TMDS signal is detected at the input.

E

— Lights when the source Input HDCP LED

requires HDCP encryption and it has been

authenticated with the HDMI input.

F

— Light when HDCP is Output HDCP LEDs

authenticated between the DA4HD4KPLUS or

DA6HD4KPLUS output and the corresponding

sink device.

A

— Connect the provided IEC cable Power input

to a 100‑240VAC (50or 60Hz) power source.

B

— Connect a source device to this HDMI input

female HDMI type A input.

C

— Connect up to four or six display HDMI outputs

devices to these female HDMI type A outputs.

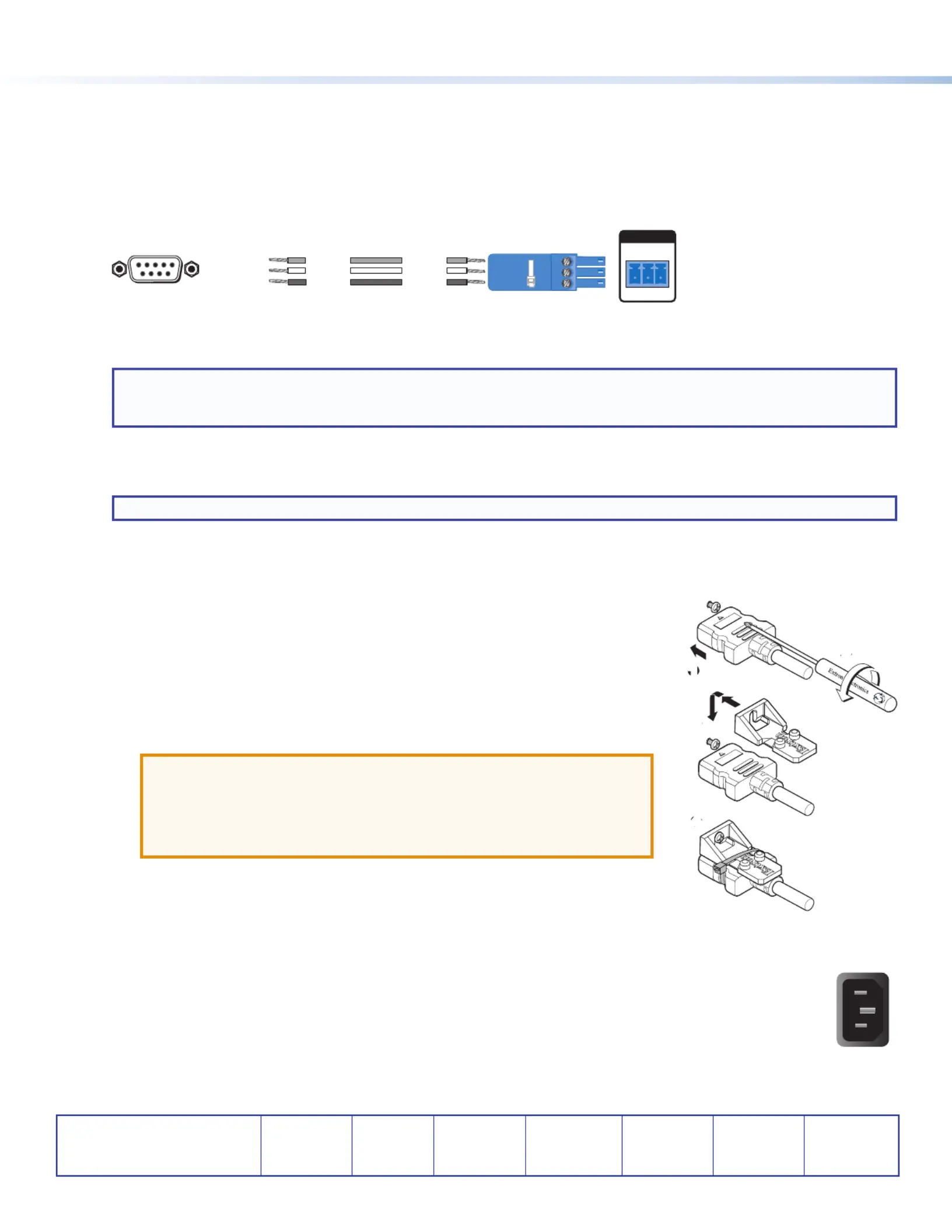

D

— Connect the provided RemoteRS-232 port

3‑pole captive screw connector for SIS

configuration, monitoring, and firmware updates

(Pin 1 = Tx, Pin 2 = Rx, Pin 3 = Ground).

Protocol: 9600 baud, 8 data bits, 1 stop bit,

no parity.
