1

IMPORTANT:

Go to www.extron.com for the

complete user guide, installation

instructions, and specifications.

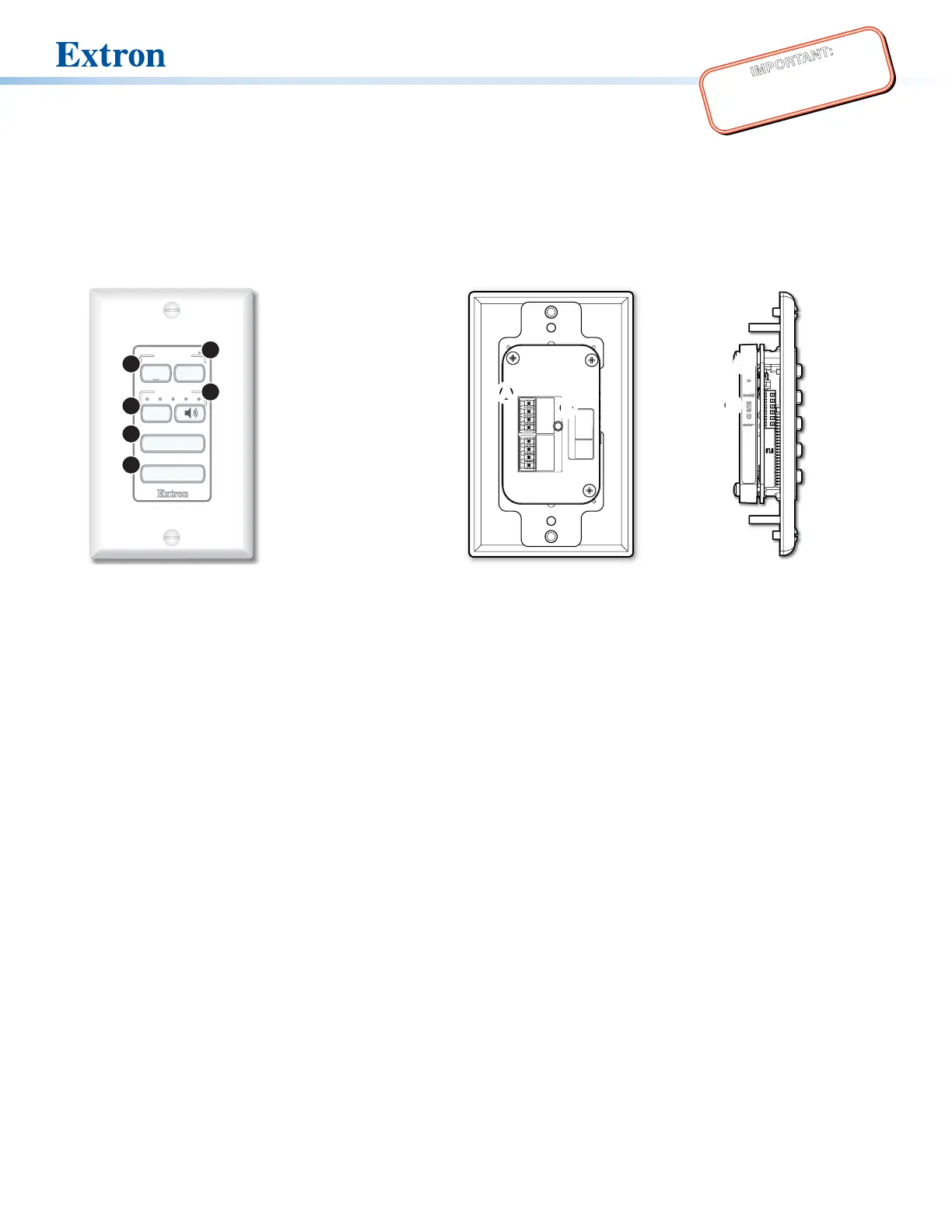

ACP 106 D • Setup Guide

The Extron ACP 106 D Audio Control Panel is a fully congurable control interface for use with any Extron ACP-enabled device.

Each ACP 106 D includes two ACP ports, which support power and communication between the host device and the ACP 106 D.

Up to eight ACP panels can be used per host device for more demanding control needs.

Front Panel Features

Extron

Extron

PROGRAM

MIC

VOLUME

MUTE

F

E

C

A

B

D

GG

X

P

A

Mute Buttons

B

Transmit LED

C

Volume Buttons

D

Volume LED Meter

E

Function Button 1

F

Function Button 2

Figure 1. ACP 106 D Rear Panel

Rear Panel Features

+V

ACP

PWR LOAD = 1.5W

+S-SG

+V+S-SG

STATUS

GREEN

AMBER

RED

LINK

COM ERROR

ID ERROR

AA

B

B

CC

DD

A

ACP Ports (2)

B

Connection Status LED

C

Reset Button

D

Bus ID DIP Switches

Figure 2. ACP 106 D Front Panel

Planning the System and Installation

When planning to install an ACP system, consider how many ACP panels to use, maximum cable distance, and mounting (see the

ACP 106 D product page at www.extron.com for more information about the ACP 106 D).

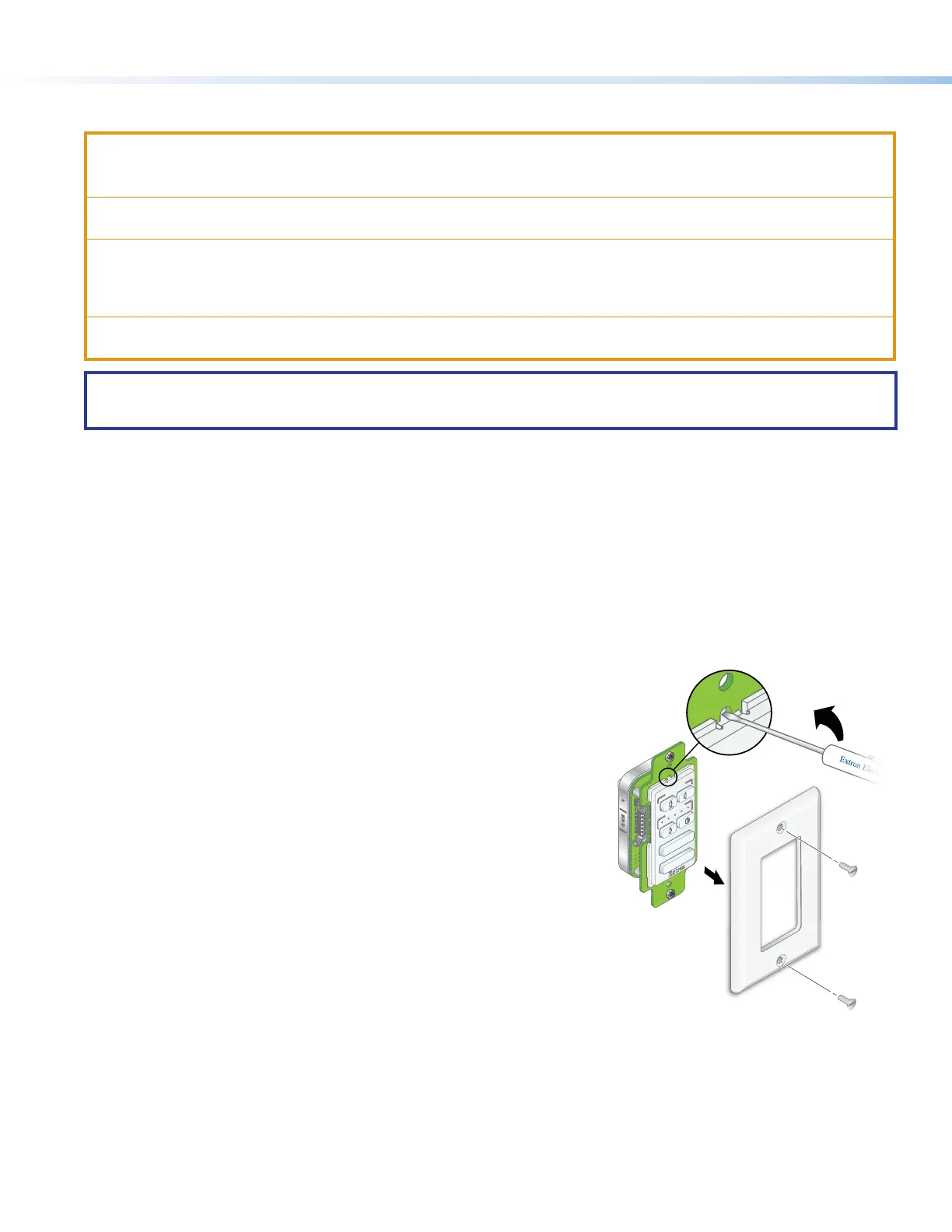

Installation

Step 1: Get Ready

Use the following checklist to prepare for the installation:

Download and install the latest version of software, rmware, and device drivers needed to congure the host device and

congure the connected ACP products (see the host device user guide, available on www.extron.com, for details on

software and drivers).

Obtain cables, mounting hardware, and any other supplies required for ACP 106 D installation.
