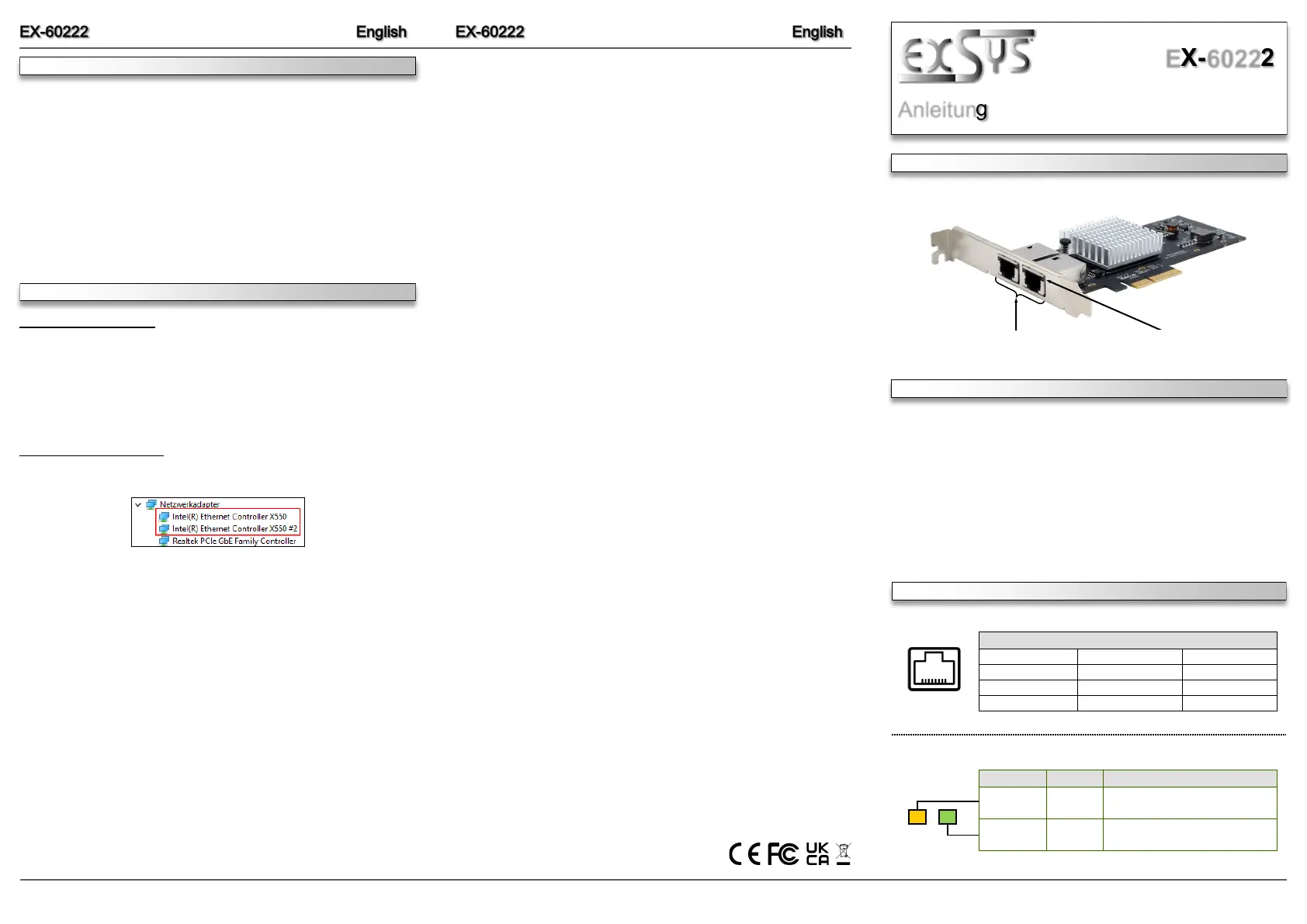

Windows / Linux / Unix

Once the hardware installation is complete, the operating system will automatically detect and

install the card. If the drivers are not installed automatically, they can be downloaded from the

EXSYS website (www.exsys.de / www.exsys.ch). Enter the article number in the search field

and select the appropriate article. Under 'Downloads' you will find the current driver as a ZIP

file. Once you have extracted the driver folder to your computer, run 'Autorun.exe'. Follow the

installation instructions to complete the installation.

Important! Reboot your PC/Server after installation.

CHECK INSTALLED DRIVER

Open the >Device manager<. Now you should see at „Network adapters“ the following new

entries:

If you see these or a similar informations the device is installed correctly.

651

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

Anleitung

Die EX-60222 ist eine 10 Gigabit Ethernet Karte mit zwei RJ45 Ports für den PCIe Bus. Sie

unterstützt Half- und Full-Duplex sowie Auto-Negotiation zur automatischen Anpassung an die

Geschwindigkeit im Netzwerk (10/100/1000/2500/5000/10000 Mbit/s). Der verwendete Intel

Ethernet-Controller garantiert höchste Qualität und Zuverlässigkeit.

Kompatibilität:PCI-Express p1-x4 bis x16

Betriebssysteme:Windows 7/8.x/10/11 (32/64 bit),

Server 2008 (R2)/2012 (R2) (32/64 bit),

Linux ab 2.6.24, VMware ESXi 5.x/6.0

Anschlüsse:2x RJ45 10 Gigabit Ethernet Anschluss

Lieferumfang:EX-60222, Low Profile Bügel, Anleitung

DRIVER INSTALLATION

HARDWAREINSTALLATION

Vers. 1.0 / 25.10.24

EX-60222

Switzerland:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Germany:

EXSYS Vertriebs GmbH

Industriestrasse 8

61449 Steinbach

www.exsys.de

Italy:

EXSYS Italia Srl

Via Belvedere, 45/B

I-22100 Como

www.exsys.it

Please note the following installation instructions. As there are major differences between PCs, we

can only provide you with general instructions for installing the EX-60222. If in doubt, please consult

the manual for your computer system.

1.Switch off your computer and all connected peripheral devices and unplug all devices from the

mains.

2.Loosen the housing screws on the back of your computer and carefully pull off the housing.

3.Now locate a free PCI Express slot (x4 or larger) and carefully insert the card into the selected

PCI Express slot. Make sure that the card is seated correctly and that there is no short circuit.

4.Then secure the card to the housing with a screw.

5.Now close the computer housing with the previously removed screws.

ANSCHLÜSSE & LEDS

RJ45 Anschluss:

Status LEDs:

RJ45 Anschluss

PinSignalPinSignalPinSignal

1BI_DA+4BI_DC+7BI_DD+

2BI_DA- 5BI_DC- 8BI_DD-

3BI_DB+6BI_DB-

LED NameFarbeLED Funktion

Speed

Gelb

Grün

Gelb:2.5 Gbps

Grün:1000 Mbps

Aus:10/100 Mbps

LINK (ACT)Grün

Steady on:Verbunden

Blinking:Datenübertragung

2x RJ45 Anschluss

Status LEDs pro Anschluss

87654321
