Equip 351001 Handleiding

Equip Printer 351001

Bekijk gratis de handleiding van Equip 351001 (18 pagina’s), behorend tot de categorie Printer. Deze gids werd als nuttig beoordeeld door 23 mensen en kreeg gemiddeld 5.0 sterren uit 12 reviews. Heb je een vraag over Equip 351001 of wil je andere gebruikers van dit product iets vragen? Stel een vraag

Download PDF

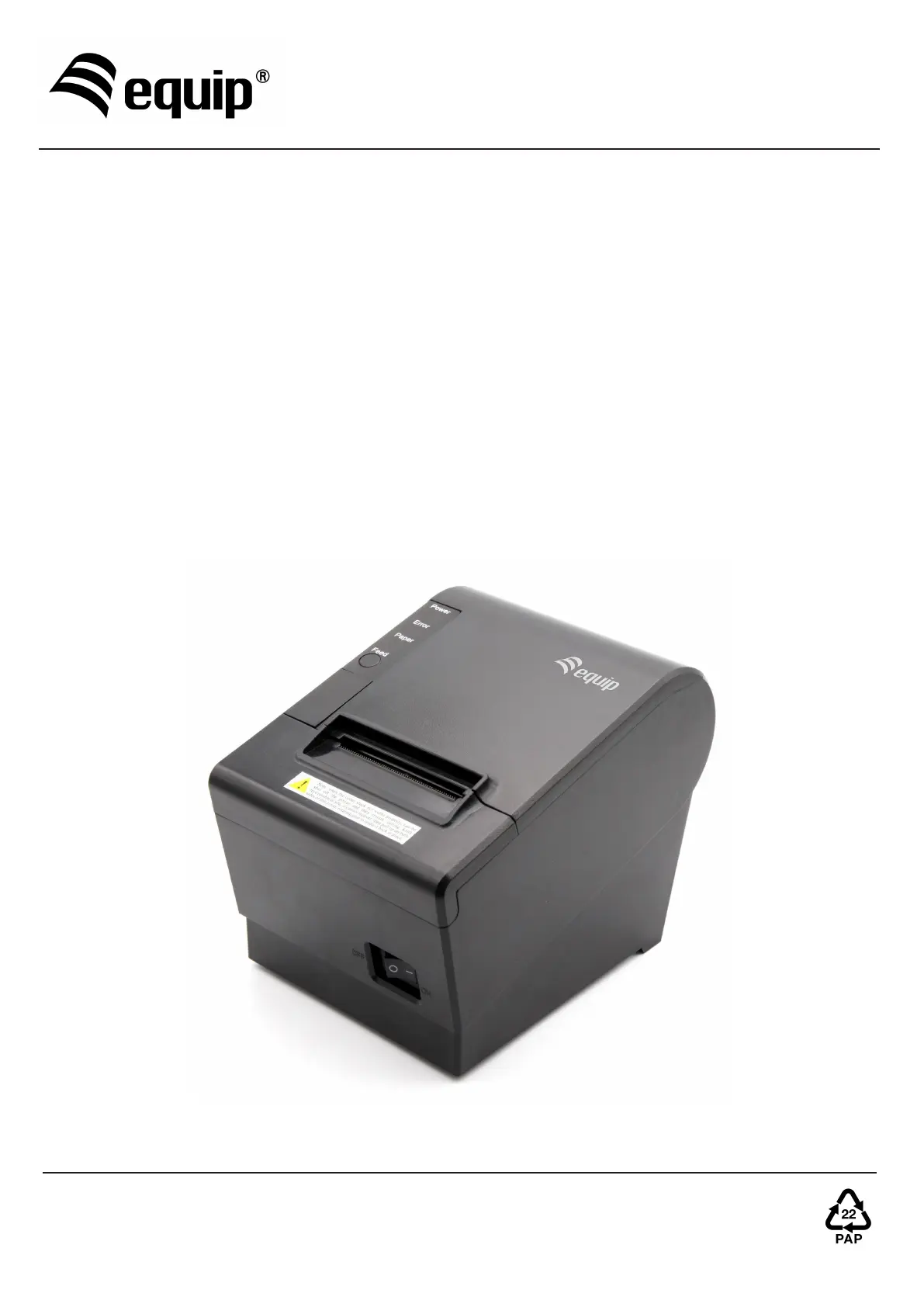

Pagina 1/18

58mm POS Thermal Printer

User Manual

support.eu@equip-info.net

support.asia@equip-info.net

Equip® is a gistered trademark o Digital Data mmunication GmbHre f Co s

www.equip-info.net

Contents

1 Introduction .............................................................................................................................................................2

1.1 Brief introduction..........................................................................................................................................2

1.2 Main fea ................................................................................................................................................2 tures

2 Specification ............................................................................................................................................................3

2.1 Specication .................................................................................................................................................3

2.2 Printing material requirements ......................................................................................................................5

2.2.1 Paper parameters ................................................................................................................................5

2.2.2 Paper using attention ..........................................................................................................................5

2.3 Printing and paper cutting position ...............................................................................................................5

2.3.1 Printing position .................................................................................................................................5

2.3.2 Paper cutting position ........................................................................................................................6

3 Appearance and components ...................................................................................................................................7

3.1 Appearance and components ........................................................................................................................7

3.2 Indicator and buzzer instruction ...................................................................................................................8

4 Printer installation ....................................................................................................................................................9

4.1 Open the package ..........................................................................................................................................9

4.2 Requirements of installation position ...........................................................................................................9

4.3 Connect to power adapter .............................................................................................................................9

4.4 Connect Communication cables ...................................................................................................................9

4.5 Connect to cash drawer .................................................................................................................................9

4.6 Paper roll loading ..........................................................................................................................................9

4.6.1 Printing paper type conrmation .......................................................................................................9

4.6.2 Loading or change paper roll ...........................................................................................................10

4.7 Printing self-test page ................................................................................................................................. 11

4.8 Set Ethernet port IP Address. ...................................................................................................................... 11

5 Interface pin denitions .........................................................................................................................................13

5.1 Parallel interface pin definition（）DB25M ..............................................................................................13

5.2 USB interface pin denition（standard B type female base) .....................................................................13

5.3 Power interface pin denition（MPC-3-001B .......................................................................................14 ）

5.4 Cash drawer interface pin denition -6P6C（RJ11 ） .................................................................................14

5.5 Serial port p ...........................................................................................................15 in definition（DB9F）

5.6 Ethernet interface pin denition .................................................................................................15 （RJ45）

6 Faults handling ......................................................................................................................................................16

6.1 Printer does not ..................................................................................................................................16 work

6.2 Indicator error and buzzer warning .............................................................................................................16

6.3 Problems when it is printing .......................................................................................................................16

6.4 Problems when cutting paper ......................................................................................................................17

6.5 Paper jam and cutter retraction troubles removal .......................................................................................17

Equip® POS Thermal printer User manual

1 Introduction

1.1 Brief introduction

Equip® 351001 is a thermal POS printer with Optional auto-cutter. It has good printing quality, high printing

speed and high stability, which is widely used in POS system, food service industry and many other elds.

It offers drivers for WINDOWS and LINUX operating systems.

The supported operating systems are as below:

WINDOWS XP

WINDOWS 7 32/64

WINDOWS 8

UBUNTU 12.04 32/64

UBUNTU 14.04 32/64

1.2 Main features

1) With auto-cutter

2) Low noise and high printing speed

3) Easy paper loading

4) Easily use and maintain

5) Support continuous paper printing

6) Compatible with many kinds of paper width

7) With cash drawer interface

8) Interface: USB, Ethernet

Equip® POS Thermal printer User manual

Product specificaties

Merk:	Equip
Categorie:	Printer
Model:	351001
Kleur van het product:	Zwart
Gewicht:	780 g
Breedte:	170 mm
Diepte:	130 mm
Hoogte:	120 mm
Gewicht verpakking:	1100 g
Breedte verpakking:	176 mm
Diepte verpakking:	206 mm
Hoogte verpakking:	134 mm
Soort:	POS-printer
USB-poort:	Ja
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Type stroombron:	DC
Meegeleverde kabels:	USB
Snelstartgids:	Ja
Inclusief AC-adapter:	Ja
Land van herkomst:	China
Aantal USB 2.0-poorten:	1
Soort serieële aansluiting:	RJ-11
Intern geheugen:	- MB
Duurzaamheidscertificaten:	CE, RoHS
Temperatuur bij opslag:	-40 - 70 °C
Luchtvochtigheid bij opslag:	0 - 93 procent
Naleving van duurzaamheid:	Ja
Ondersteunt Linux:	Ubuntu 12.04, Ubuntu 14.04
Flash memory:	4 MB
Maximale resolutie:	203 x 203 DPI
Maximum roll diameter:	80 mm
USB-connector:	USB Type-B
Printtechnologie:	Thermisch
(Buitenste) hoofdverpakking hoogte:	290 mm
(Buitenste) hoofdverpakking breedte:	370 mm
(Buitenste) hoofdverpakking brutogewicht:	9560 g
(Buitenste) hoofdverpakking lengte:	435 mm
Hoeveelheid per (buitenste) hoofdverpakking:	8 stuk(s)
Ingebouwde streepjescodes:	1D, 2D, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF, QR Code, UPC-A, UPC-E
Maximale print breedte:	48 mm
Printsnelheid (metrisch):	220 mm/sec
Wifi:	Nee
Bedrijfstemperatuur (T-T):	-10 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	25 - 80 procent
Ondersteunde papierwijdte:	58 mm
Seriële interface:	Ja
Snijder:	Ja
Autocutter duurzaamheid:	1000000 miljoen delen
Character sets:	ASCII
