Pagina 1/19

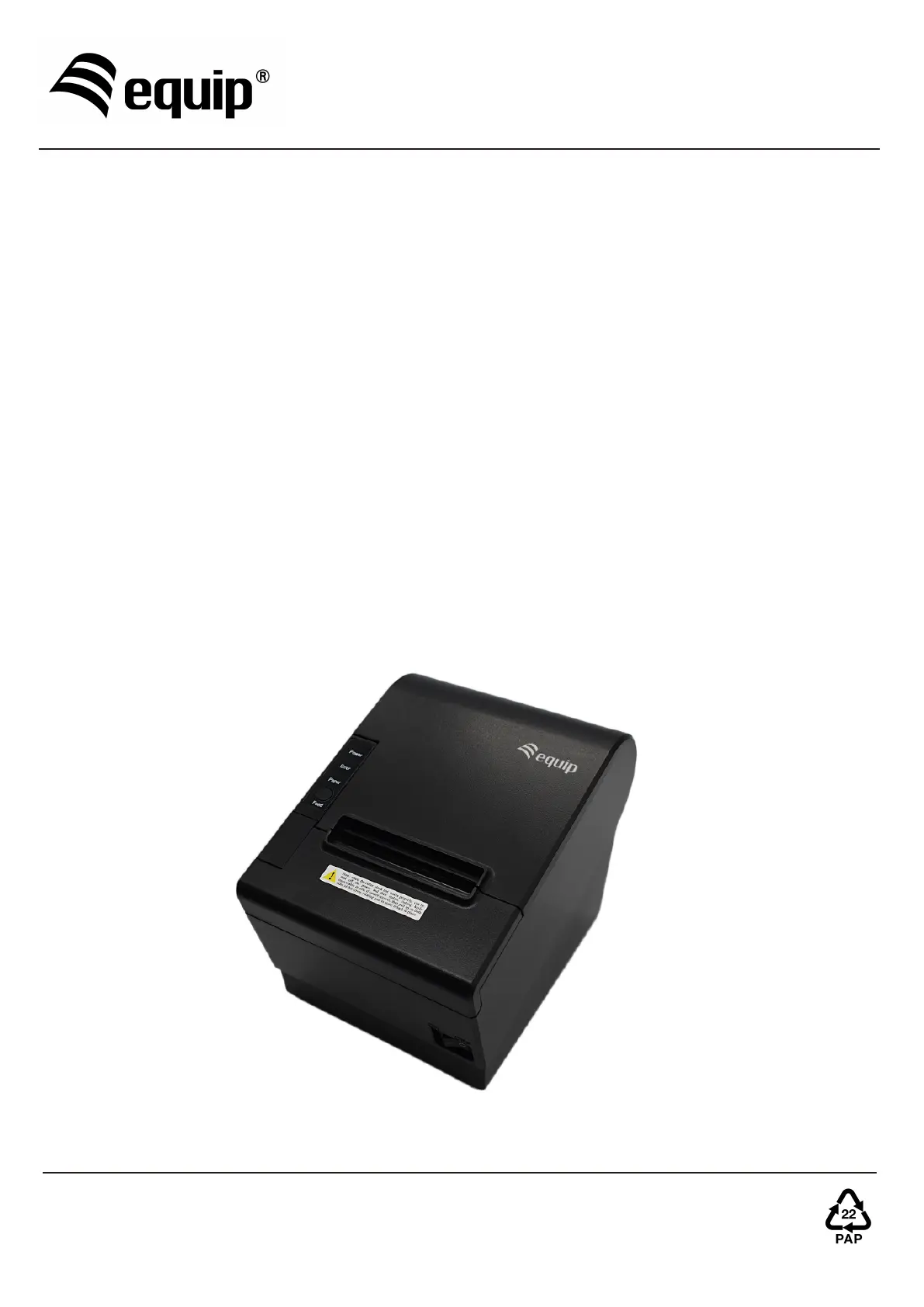

80mm POS Thermal Printer

User Manual

support.eu@equip-info.net

support.asia@equip-info.net

Equip® is a gistered trademark o Digital Data mmunication GmbHre f Co s

www.equip-info.net

Catalogue

1 Introduction ............................................................................................................................................................ 2

1.1 Brief introduction......................................................................................................................................... 2

1.2 Main features ............................................................................................................................................... 2

2 Specification ........................................................................................................................................................... 3

2.1 Specication ................................................................................................................................................ 3

2.2 Printing material requirements ..................................................................................................................... 5

2.2.1 Paper parameters ............................................................................................................................... 5

2.2.2 Mark paper parameters ..................................................................................................................... 5

2.2.3 Paper using attention ......................................................................................................................... 5

2.3 Printing and paper cutting position .............................................................................................................. 6

2.3. ................................................................................................................................ 61 Printing position

2.3.2 Paper cutting position ....................................................................................................................... 6

3 Appearance and components .................................................................................................................................. 7

3.1 Appearance and components ....................................................................................................................... 7

3.2 Indicator and buzzer instruction .................................................................................................................. 8

4 Printer installation ................................................................................................................................................ 9

4.1 Open the package ......................................................................................................................................... 9

4.2 Requirements of installation position .......................................................................................................... 9

4.3 Connect to power adapter ............................................................................................................................ 9

4.4 Connect Communication cables .................................................................................................................. 9

4.5 Connect to cash drawer ................................................................................................................................ 9

4.6 Paper roll loading ....................................................................................................................................... 10

4.6.1 Printing paper type conrmation .................................................................................................... 10

4.6.2 Loading or change paper roll .......................................................................................................... 10

4.7 Printing self-test page ................................................................................................................................ 12

4.8 Set Ethernet port IP Address. ..................................................................................................................... 12

5 Interface pin denitions ........................................................................................................................................ 14

5.1 USB interface pin denition（standard B type female base) .................................................................... 14

5.2 Power interface pin denition（MPC-3-001B） ...................................................................................... 14

5.3 Cash drawer interface pin denition -6P6C（RJ11 ） ................................................................................ 15

5.4 Serial port pin denition .......................................................................................................... 15（DB9F）

5.5 Ethernet interface pin definition ................................................................................................ 16（RJ45）

6 Faults handling ..................................................................................................................................................... 17

6.1 Printer does not work ................................................................................................................................. 17

6.2 Indicator error and buzzer warning ............................................................................................................ 17

6.3 Problems when it is printing ...................................................................................................................... 17

6.4 Problems when cutting paper ..................................................................................................................... 18

6.5 Paper jam and cutter retraction troubles removal ...................................................................................... 18

Equip® POS Thermal printer User manual

1 Introduction

1.1 Brief introduction

Equip® thermal POS printer with auto-cutter has good printing quality, high printing speed and high stability,

which is widely used in POS system, food service industry and many other elds.

It offers drivers for WINDOWS and LINUX operating systems.

The supported operating systems are as below:

WINDOWS XP

WINDOWS 7 32/64

WINDOWS 8

WINDOWS 10

UBUNTU 12.04 32/64

UBUNTU 14.04 32/64

MAC OS

1.2 Main features

·Low noise direct thermal printing

·Printing density: 8 dots/mm（）203DPI

·Printing width: 72mm; Paper width: 80mm

·Auto cutter with long lifespan

·With cash drawer interface

·351002: USB connection

·351003: USB, Serial, Ethernet connection

·351004: USB, Bluetooth, WiFi connection

·Metal through shaft, quality more stable

·Metal paper cover, good texture

Product specificaties

Merk:	Equip
Categorie:	Printer
Model:	351004
Kleur van het product:	Zwart
Gewicht:	1040 g
Breedte:	195 mm
Diepte:	145 mm
Hoogte:	143.3 mm
Gewicht verpakking:	1660 g
Breedte verpakking:	201 mm
Diepte verpakking:	230 mm
Hoogte verpakking:	152 mm
Soort:	POS-printer
Bluetooth:	Ja
USB-poort:	Ja
Connectiviteitstechnologie:	Bedraad en draadloos
Ethernet LAN:	Nee
Type stroombron:	DC
Meegeleverde kabels:	AC, USB
Snelstartgids:	Ja
Inclusief AC-adapter:	Ja
Land van herkomst:	China
Aantal USB 2.0-poorten:	1
Soort serieële aansluiting:	RJ-11
Intern geheugen:	8 MB
Duurzaamheidscertificaten:	RoHS, CE
Temperatuur bij opslag:	-40 - 70 °C
Ondersteunt Mac-besturingssysteem:	Ja
Luchtvochtigheid bij opslag:	0 - 93 procent
Mac-compatibiliteit:	Ja
Naleving van duurzaamheid:	Ja
Ondersteunt Linux:	Ubuntu 12.04, Ubuntu 14.04
Flash memory:	4 MB
Maximale resolutie:	203 x 203 DPI
Maximum roll diameter:	80 mm
USB-connector:	USB Type-B
Printtechnologie:	Thermisch
(Buitenste) hoofdverpakking hoogte:	328 mm
(Buitenste) hoofdverpakking breedte:	425 mm
(Buitenste) hoofdverpakking brutogewicht:	14190 g
(Buitenste) hoofdverpakking lengte:	477 mm
Hoeveelheid per (buitenste) hoofdverpakking:	8 stuk(s)
Ingebouwde streepjescodes:	1D, 2D, QR Code, EAN13, Code 128 (A/B/C), EAN8, UPC-A, Code 39, UPC-E, ITF, PDF417, Code 93
Maximale print breedte:	72 mm
Printsnelheid (metrisch):	250 mm/sec
Wifi:	Ja
Bedrijfstemperatuur (T-T):	-10 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	25 - 80 procent
Ondersteunde papierwijdte:	80 mm
Seriële interface:	Ja
Snijder:	Ja
Autocutter duurzaamheid:	1000000 miljoen delen
Character sets:	ASCII
Levensduur van printkop:	100 km
