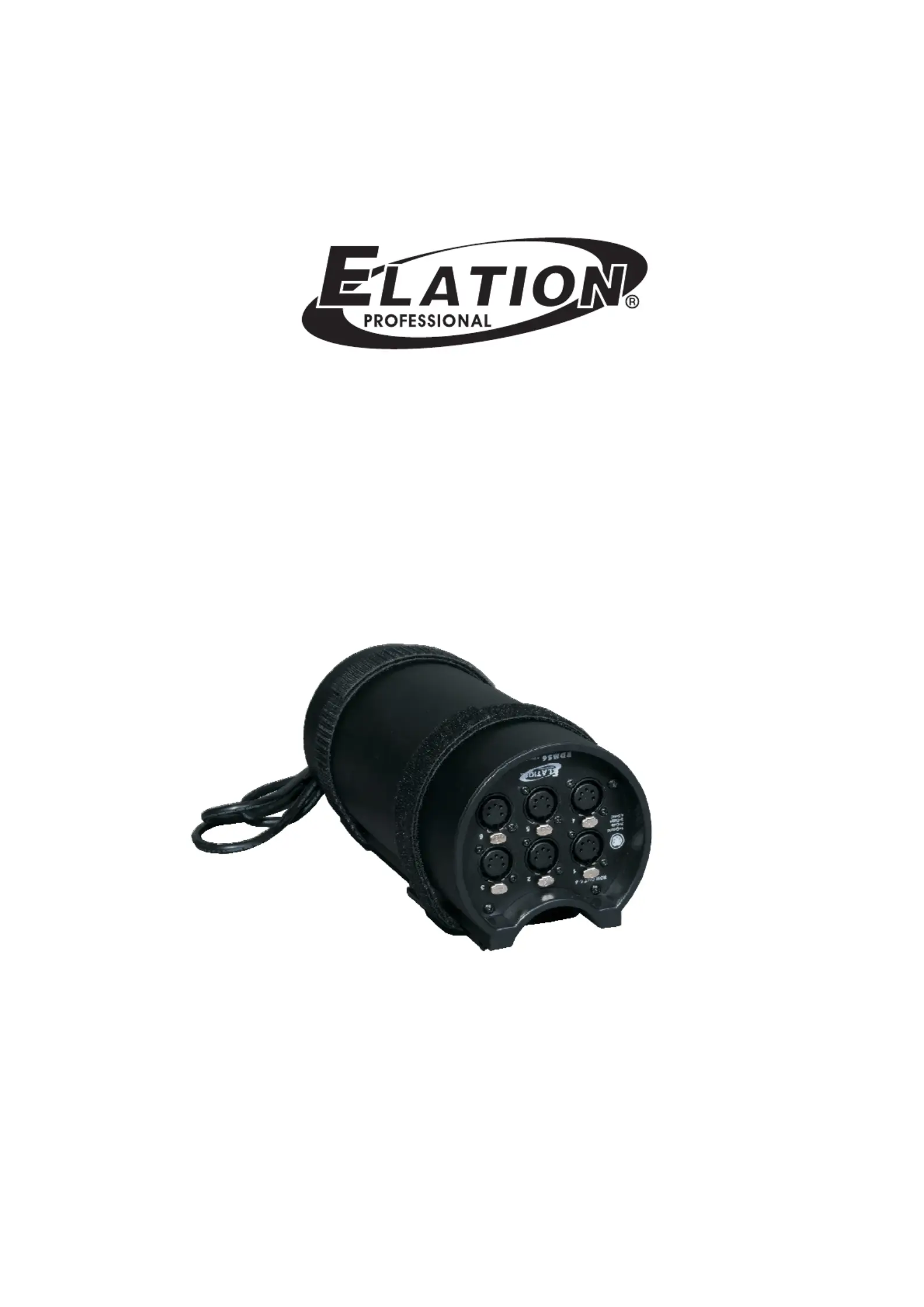

User's Instruction
RDMS6
6 Way RDM Splitter
RD M OUT 1- 6
1 2
3
4
5
6
1=Ground
2=Data-
3=Data+
4,5=NC
6 Way RDM Boost
R D M S 6
RDM THRU
AC I N
FU S E
RDM IN
Made i nP.R. C.
AC I N :
Fu s e:
100-240V~ 50/60Hz,1 A Max.
F1A 250V 5x20mm
RoHS
Signa l
Power
Link Out/
Terminate
RDM DMX
CA UTI O N!
DO N OT OP E N
Risk of E lectric Shoc k
Ne pas ou vrir. Risq ue
de choc e lectriq ue
Warni ng:This appa ratus
must be e arthed
1=Ground
2=Data
3=Data+
4,5=NC
Product Descriptions
Technical Specifications
POWER INPUT
RDM IN/THRU,RDM OUTPUT
DIMENSIONS
WEIGHT
.................................................................................................................................AC 100~240V
.......................................................................................................Via 5-pin terminal
............................................................................................................................264x133.3x120mm
.......................................................................................................................................................1.45Kg
POWER CONSUMPTION ..................................................................................................................................5W
This is a 6 way RMD splitter, features one RDM IN/THRU and 6 RDM OUTPUTs. This unit takes the incoming
RDM/DMX signal and splits the signal into six separate OUTPUT channels. Each OUTPUT and the IN/THRU
are completely electronically isolated from each other, all six OUTPUT ports have independent output driver to
boost the RDM/DMX signal.
Operation Guide
Set the RDM/DMX switch as "DMX", the RDMS6 applies to DMX signal input only and the Input/Output
Signal is mono-directional communication.
Set the RDM/DMX switch as "RDM", the RDMS6 applies to DMX or RDM signal input and the Input/Output
Signal is bidirectional communication.
Data Cable (DMX Cable) Requirements:
The RDMS6 is controlled via DMX-512 protocol and your DMX controller requires a standard 3-pin terminal
connector for data input and data output. Connect the RDMS6 and your fixtures together using standard 3-
pin DMX cables.
DMX Signal Cable. 120 ohm impedance DMX signal cable be used for signal connection.MUST
The signal indicator will blink when RDMS6 detects any signal inputs.
24-004-3067-00
Rev1.0
While need one RDMS6 in system only for operation(thus the RDM Thru needn't connect to the next
RDMS6), the user may move the end-switch to terminal end for connecting to end-resistor. Regarding the
other status, the end-switch should be disconnected to put through the RDM In and RDM Thru.
1
2
3
4
5
6
7
8
9

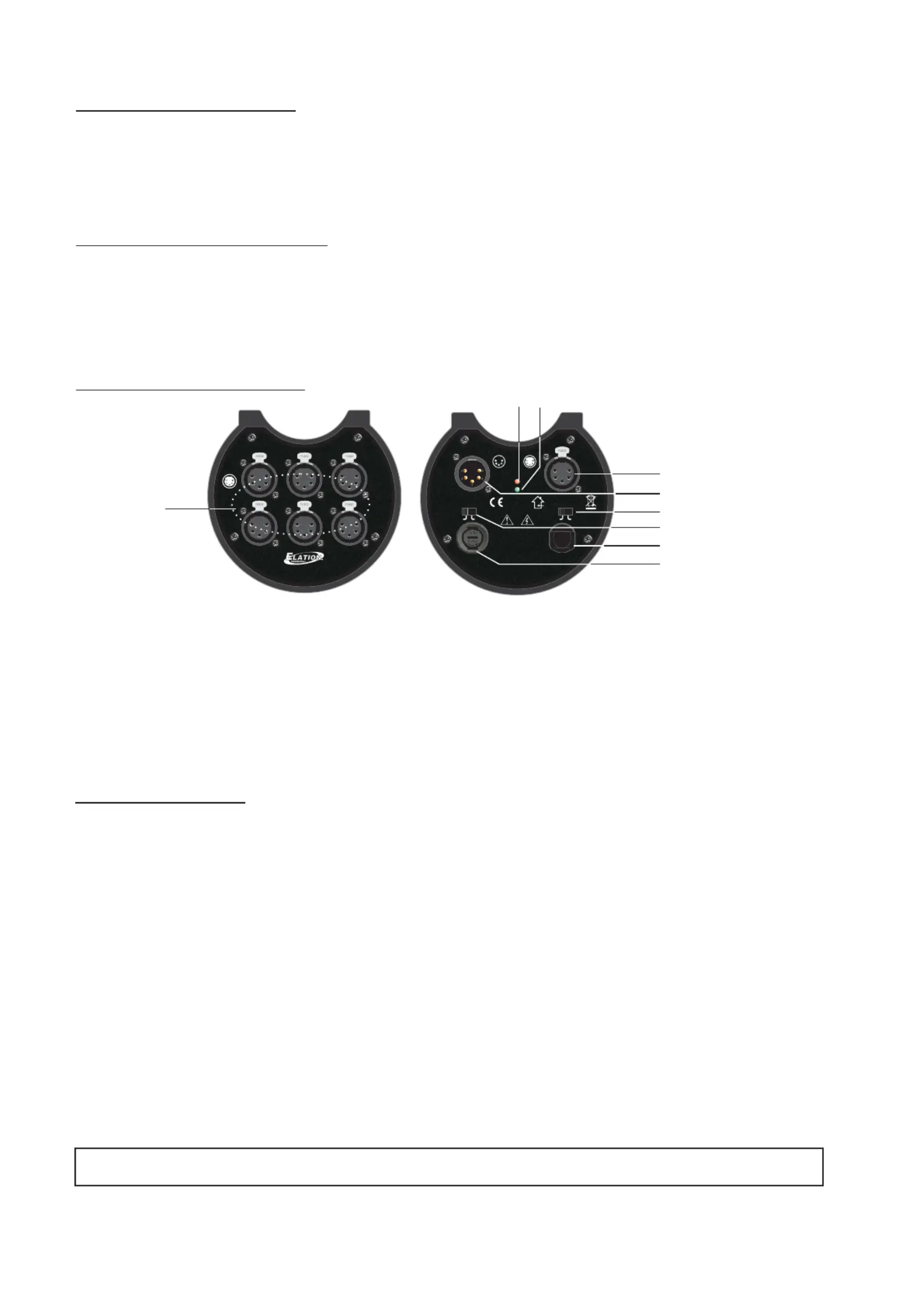

1.RDM OUT 1~6: via 3-pin XLR connector.
2.RDM Thru: via 3-pin XLR connector.
3.RDM IN: via 3-pin XLR connector.
4.RDM/DMX switch: selects signal inputs.
5.Link Out/Terminate switch: selects Link Out or Terminate.
6.Power In: Inputs a power of 100~240V AC,50/60Hz.
7.Fuse:
8.Power Indicator: It will light when contacts to the suitable power source.
9.Signal Indicator: it will blink when RB-6 TS detects any signal inputs.
Function Descriptions
