Thank you for purchasing iDMX7.
iDMX7, a simple DMX controller operated by infrared remote, can be used to record and play back DMX
signal. It features four working modes, available in Auto mode, Manual mode, DMX signal recording mode
and DMX playback mode. The EEPROM is used to memorize existing functions and parameters.
Please read this manual carefully before using iDMX7.
DELIVERY PACKAGE
Check for transport damage.
You should be in possession of the following items:
1 iDMX7
1 User Instruction
1 Adapter
1 Remote controller
1 Battery plate
Should you discover transport damage after
unpacking the equipment, inform the hauler
immediately.
Never connect a damaged device. You may also
contact your supplier.

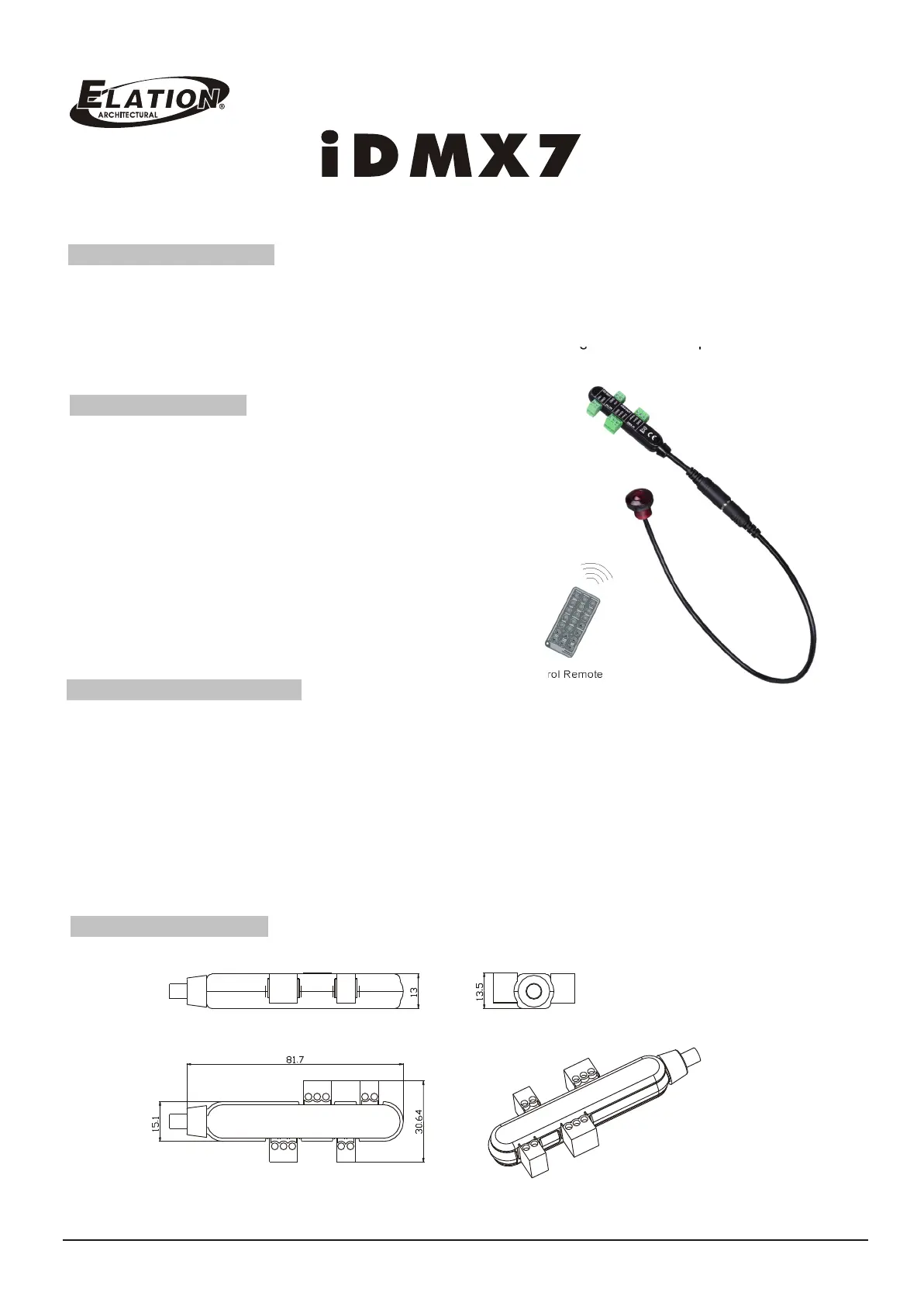

TECHNICAL SPECIFICATION
PRODUCT DESCRIPTION
User Instruction
PHYSICAL DIMENSIONS
Power Supply ................................................................................. DC9V 200mA
DC IN / OUT ................................................................................... 2pin Green Terminal Socket
DMX IN / OUT ................................................................................. 3pin Green Terminal Socket
Housing ......................................................................................... Polycarbonate
Listing ........................................................................................... CE certified
Operation Temperature ................................................................... 0 degC to + 55 degC
Storage Temperature ...................................................................... -20 degC to +70 degC
Dimension ..................................................................................... 81.7(L) x 15.1(W) x 13(H)mm
Weight .......................................................................................... 150g
P/N: 24-004-2475-00
Rev: 1.0
- Page 1 -
Control Remote
DM
X
A
N
T
R
e
m
o
t
e
C
o
n
t
r
oll
e
r
P
a
t
t
e
r
n
R
e
d
S
p
ee
d
G
r
e
e
n
F
a
d
e
B
l
u
e
B
r
i
g
h
t
n
es
s
Y
e
l
l
o
w
B
l
u
e
Gr
ee
n
M
ag
e
n
t
a
W
h
i
t
e
R
e
d
C
yan
A
u
t
o
P
la
y
O
n
/
O
f
f
E
x
i
t
A
.
R
e
c
/S
M
.
R
e
c/
S
OPERATION GUIDE
1. Manual Mode
Red effect is controlled by channel 1, 4, 7 ...
Green effect is controlled by channel 2, 5, 8 ...
Blue effect is controlled by channel 3, 6, 9 ...
There are 510 channels in total. The R.G.B color intensity can be adjusted separately in Manual Mode.
2. Auto Mode
Directly tap the "Auto" key on IR controller to enable Auto mode.
The color intensity changes automatically in this mode.
3. DMX Playback Mode
4. DMX Signal Recording Mode
In DMX Signal Recording Mode, there are two working modes: Manual DMX
signal recording mode and Auto DMX signal recording mode. Another DMX
controller (depicted here)_ XB-R1 is required to connect with iDMX7 before
recording.
iDMX7 can record DMX as a maximum speed of 25 frames per second (512 channel). The excess of the
maximum speed will result in the loss of DMX frame. Normally, the time of DMX recording is 400
seconds, the minimum DMX recording time is 200 seconds.
3.1 Only stored scenes can be played back.
3.2 Directly tap the "Play" key on IR controller to play back the stored scene.
3.3 This mode is not available when there is no recorded DMX signal.
4.1.1 Manual DMX signal recording mode enables: press "M.REC/S" button and hold it on for about 5
seconds to enable this mode.
4.1.2 XB-R1 plays the scene that you wish to record.
4.1.3 Press "M.REC/S" button to start to record the scene.
4.1.4 Once you've recorded the scene, press "EXIT" button to exit from existing mode and change to DMX
playback mode.
If you press "EXIT" button before step 4.1.3 in this mode, the unit changes to other modes automatically.
4.2.1 Auto DMX signal recording mode enables: press "A.REC/S" button and hold it on for about 5 seconds
to enable this mode.
4.2.2 XB-R1 plays the scene that you wish to record.
4.2.3 Press "A.REC/S" button to start to record the scene.
4.2.4 Once the first and the last DMX frame of the scene have been completely displayed, the Auto DMX
signal recording mode ends automatically and changes to DMX playback mode.
(You can also press "EXIT" button to exit from existing mode and change to DMX playback mode.)
If you press "EXIT" button before step 4.2.3 in this mode, the unit changes to other modes automatically.
NOTICE:
When using Auto DMX signal recording mode, please pay attention to the following rules:
1. For the scene that you wish to record, the first DMX frame and the last DMX frame shall be zero (all
channels are zero) and the other frames shall not be zero.
XB-R1
(Sold separately)
4.1 Manual DMX signal recording mode
4.2 Auto DMX signal recording mode
(In the process of recording DMX signal, if disconnection with XB-R1 happens,
DMX Signal Recording Mode ends automatically and the unit changes to DMX
playback mode.)
- Page 2 -
iDMX7 features four working modes, available in Manual Mode, Auto Mode, DMX Playback Mode and DMX
Signal Recording Mode.
2. The first and the last DMX frame don't record anything. They are the sign of starting and ending.
