Bekijk gratis de handleiding van Elation Design Wash 575E (48 pagina’s), behorend tot de categorie Verlichting. Deze gids werd als nuttig beoordeeld door 2 mensen en kreeg gemiddeld 4.8 sterren uit 1.5 reviews. Heb je een vraag over Elation Design Wash 575E of wil je andere gebruikers van dit product iets vragen? Stel een vraag

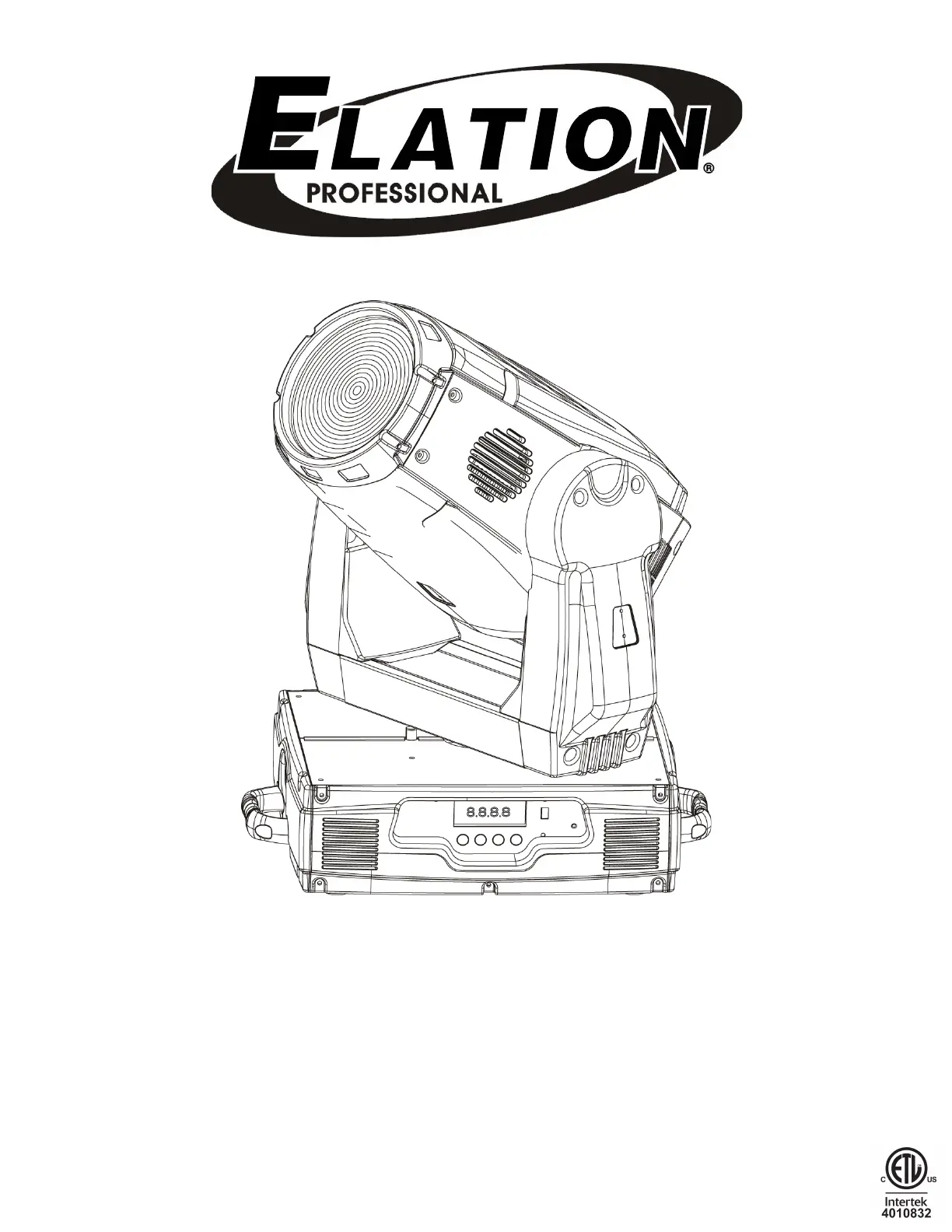

Pagina 1/48
Rev. 06/06/2008
Design Wash 575E
Elation Professional
6122 S. Eastern Ave.
Los Angeles, CA. 90040
www.elationlighting.com
Design Wash 575E™
©Elation Professional® 2 Design Wash 575E™
Contents
1. General Information……………………………………………………………………… 3
a. Introduction………………………………………………………………………. 3
b. Unpacking………………………………………………………..…………..… 3
c. Customer Support…………………………………………….………………… 3
d. Warranty Registration……………………………………………………..…… 4
e. Discharge Lamp Warning……………………………………………………… 4
2. Safety Instructions………………………………………………………........…………. 6
3. Features…………………………………………………………………………………… 8
4. General Guidelines………………………………………………………………………. 9
5. Lamp Installation…………………………………………………………………………. 10
a. Lamp installation…………………………………………………….………….. 10
b. Lamp optimization……………………………………………………..………… 11
6. Mounting and Installation………………………………………………………….……. 13
a. Mounting Positions……………………………………………………………… 13
b. Mounting Points…………………………………………………………………. 14
c. Securing………………………………………………………………………….. 15
7. Understanding DMX……………………………………………………………………... 16
a. DMX Connections………………………………………………………………. 16
b. DMX Terminator…………………………………………………………………. 17
c. 3-Pin to 5-Pin Conversion………………………………………………………. 18
8. Fixture Menu……………………………………………………………………………… 19
a. Menu functions………………………………………………………………….. 21
9. Operation…………………………………………………………………………………..29
10. DMX Channel Traits…………………………………………………………………….. 32
a) DMX Channel Values……………………………………………………………… 33
11. FUSE Replacement………………………………………………………………………. 36
12. Error Codes………………………………………………………………………………. 37
13. Cleaning and Maintenance……………………………………………………………… 40
14. Warranty…………………………………………………………………………………... 41
15. Photometric Data………………………………………………………………………… 43
16. Dimensional Drawings………………………………………………….……………….. 44
17. Circuit Schematic………...………………………………………………………………. 45
18. Technical Specifications…………………………………………...………….………… 47
