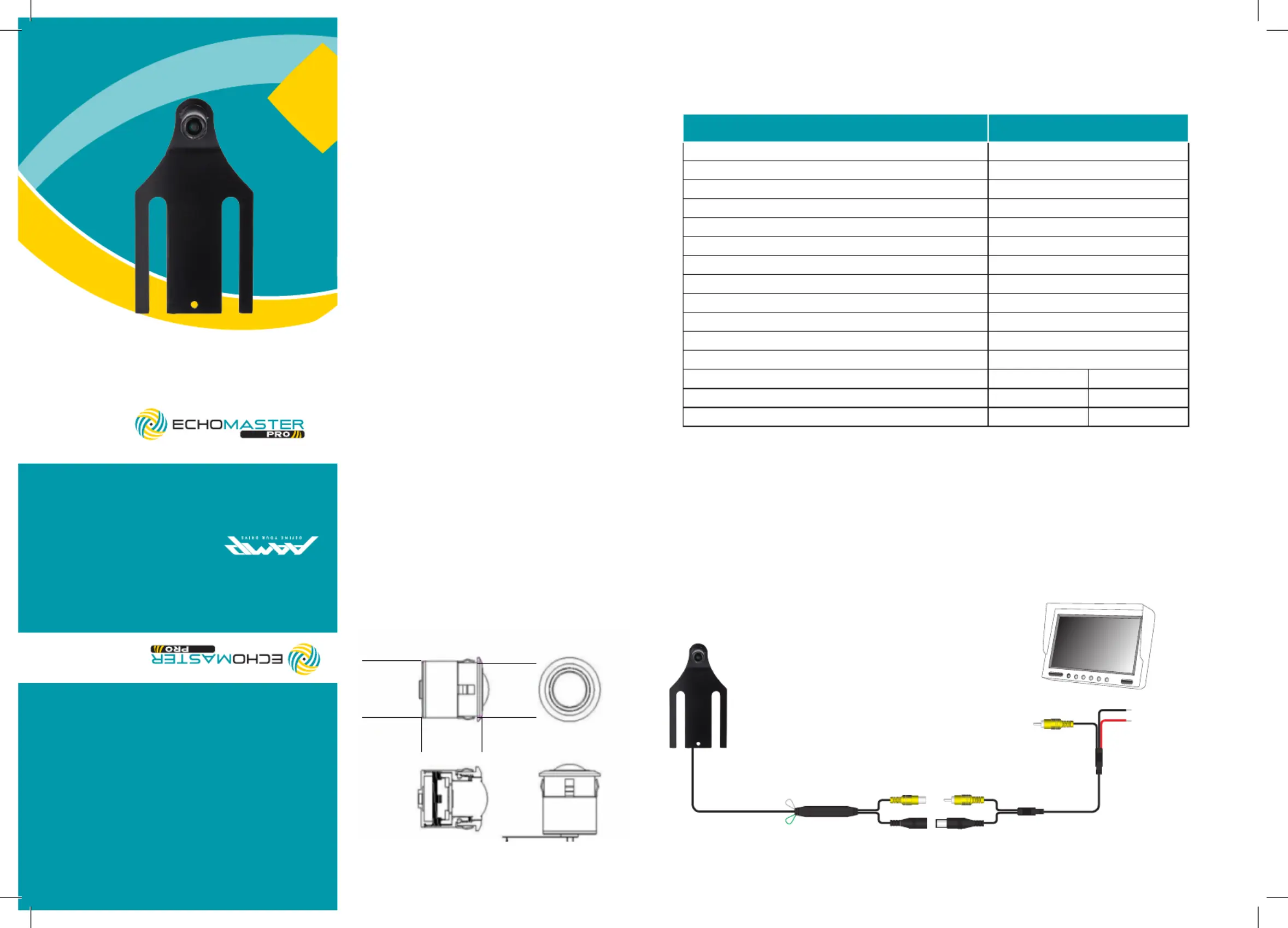

PCAM-JP2

Introduction

Key Features

u 1/4”CMOS Sensors

u Operates at 0.5 LUX

u IP67 Rated

u 170 Degree Viewing Angle

u Selectable Image (mirrored/non-mirrored)

Box Contents

Wiring Diagram

Specications

Dimensions

CAM-JP2-P I CAM-JP2-N

Sensor1/4” CMOS

LEDs0

Illumination0.5 LUX

Viewing Angle170 degrees

Mirror ImageYES

Normal ImageYES

Water/Debris-ProofIP67

AudioNO

Power Supply9-16V DC

Current<50mA

Working Temperature-30ºC - +70ºC

Dimensions (mm)D (22) x W (18) x H (18)

SystemPALNTSC

TV LinesN/A420

Resolution (HxV)N/A648 x 488

u Camera with Bracket

u Manual

u Hole Saw

Thank you for purchasing your EchoMaster

automotive camera.

The following part numbers are supported:

u PCAM-JP2-P

u PCAM-JP2-N

EchoMaster cameras are designed to improve safety during

driving by providing high quality images of surrounding areas

and obstacles in the vicinity of the vehicle. They will also

improve vehicle maneuvering capability by displaying blind

spots not normally visible to the driver.

Please ensure you read and understand all aspects of this

manual before tting or using your EchoMaster Camera.

Choose a suitable mounting place dependent on the

application. Ensure that there are no wiring harnesses or

hoses/pipes located behind this panel before drilling.

22mm

18mm

18mm

User Manual

Spare Tire Mount Camera

for Jeep Wrangler

15500 Lightwave Drive, Suite 202

Clearwater, Florida 33760

email - [email protected] (US)

email - [email protected] (Europe)

EchoMaster is a Power Brand of AAMP Global

EchoMaster.com

Parking Lines (Green) On - Cut (Default)

O - Joined

Mirror Image (White) On - Cut (Default)

O - Joined

GND (Black)

VIDEO

+12V (Red)

REV 310517
