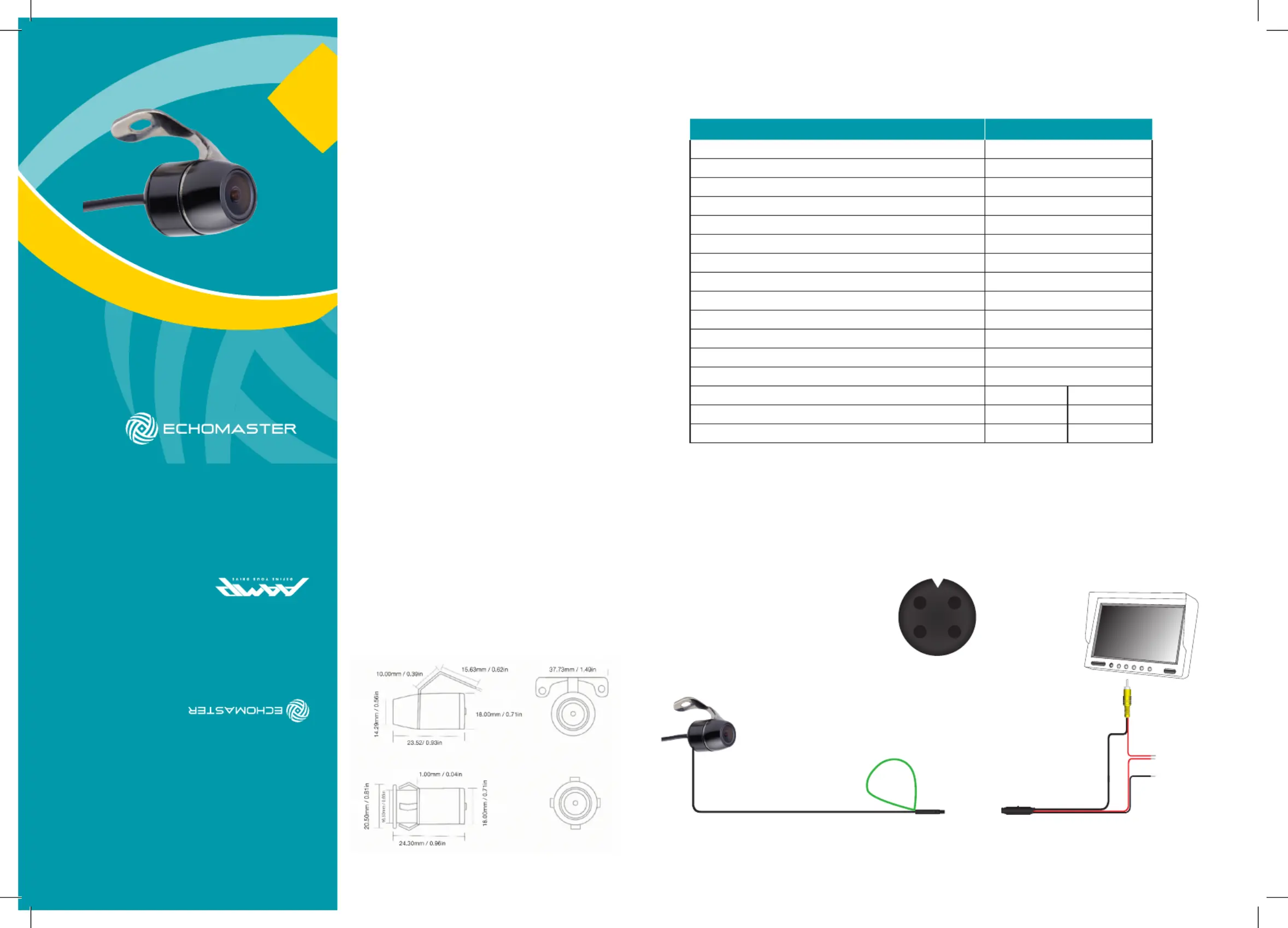

User Manual

IP68 Waterproof

Universal Mount Camera

CAM-01

Introduction

Thank you for purchasing your EchoMaster

automotive camera.

The following part numbers are supported:

u CAM-01-N

u CAM-01-P

EchoMaster cameras are designed to improve safety during

driving by providing high quality images of surrounding areas

and obstacles in the vicinity of the vehicle. They will also

improve vehicle maneuvering capability by displaying blind

spots not normally visible to the driver.

Please ensure you read and understand all aspects of this

manual before tting or using your EchoMaster Camera.

Choose a suitable mounting place dependent on the

application. Ensure that there are no wiring harnesses or

hoses/pipes located behind this panel before drilling.

Key Features

u 1/4” CMOS Sensor

u Operates at 0.3 LUX

u IP68 Rated

u 170 Degree Viewing Angle

u Selectable Image (mirrored, non-mirrored)

u Tri-Colored Parking Lines (selectable)

Box Contents

u Camera

u Bracket

u Manual

u Self-Adhesive Tape

u Mounting Hardware

u Hole Saw

Wiring Diagram & Pin Out

Specications

Dimensions (mm/in)

CAM-01-P I CAM-01-N

Sensor1/4” CMOS

LEDs0

Illumination0.3 LUX

Viewing Angle170 degrees

Mirror ImageYES

Normal ImageYES

Parking LinesSelectable

Water/Debris-Proof IP68

AudioNO

Power Supply12V DC

Current<250mA

Working Temperature-25ºC - +65ºC

Dimensions (mm)D (18) x W (14) x H (28)

SystemNTSCPAL

TV Lines480480

Resolution (HxV)720 x 480720 x 576

15500 Lightwave Drive, Suite 202

Clearwater, Florida 33760

Woolmer Way, Bordon, Hampshire,

GU35 9QE, United Kingdom

email - [email protected] (US)

email - [email protected] (Europe)

EchoMaster is a Power Brand of AAMP Global

EchoMaster.com

+12V

GND

12

43

Video

VIDEO

DC12V

Video

MirrorNormal

Camera

Mirror Image On / O (Switch)

Parking Line Defeat Loop

(Green) - Cut to deactivate

1.45m / 4.75ft

6m / 19.5ft

1.45m / 4.75ft

GND (Black)

switched

+12V (Red)
