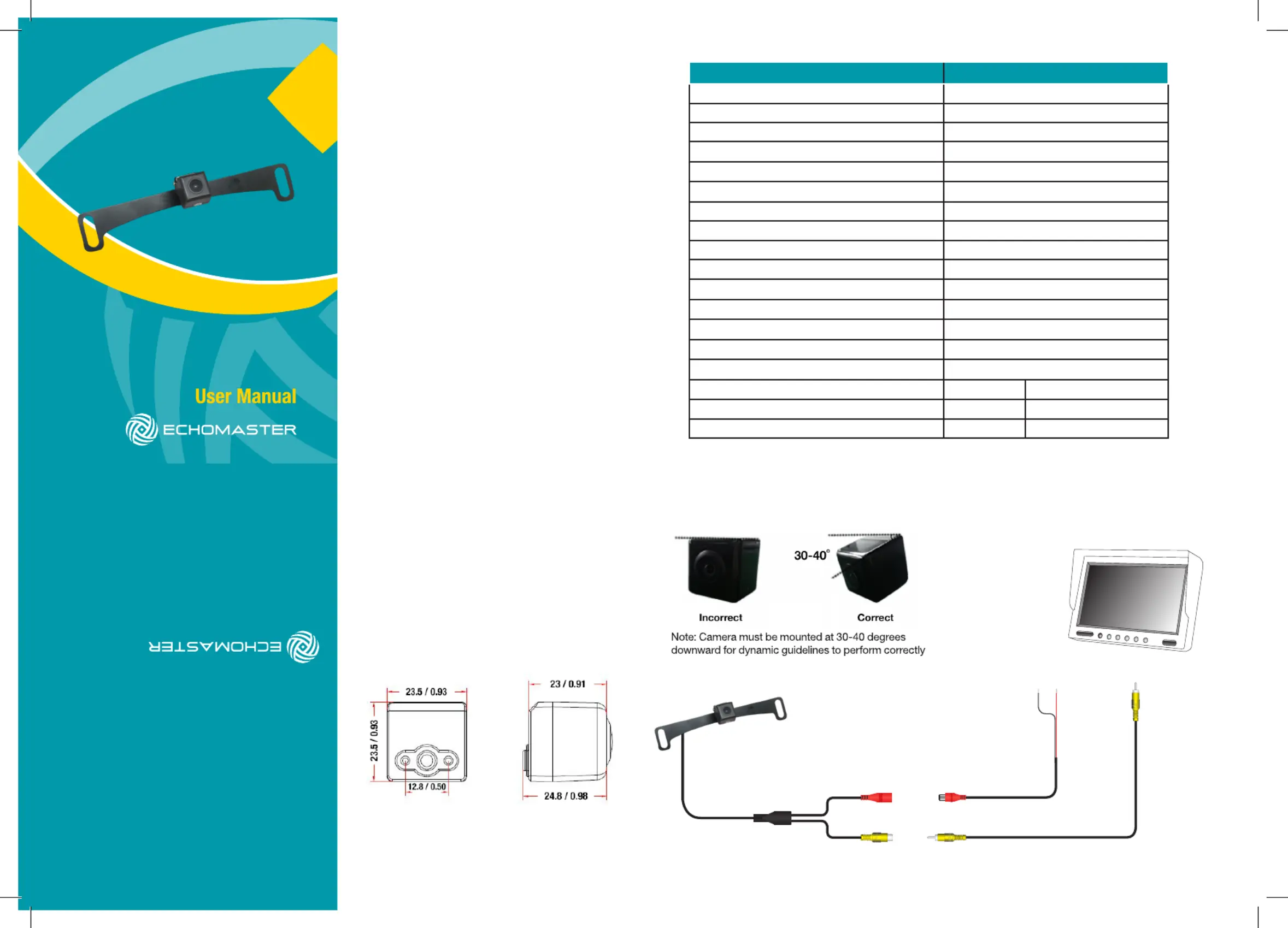

PCAM-DPLLP-N

Sensor Type1/3” CMOS PC3089

LEDsN/A

Illumination0.5 LUX

Dynamic Guidance TrajectoryEmbedded

AGCAuto

BLCAuto

Viewing Angle170 degrees

Mirror ImageYES

Normal ViewNO

Water/Debris-ProofIP67

AudioNO

Power Supply12V DC

Current<180mA

Working Temperature-20ºC - +70ºC

Dimensions (mm/in)D (24.8/0.93) x W (23.5/0.93) x H (23.5/0.93)

SystemPALNTSC

TV LinesN/A600

ResolutionN/A762 x 504

email - [email protected] (US)

email - [email protected] (Europe)

15500 Lightwave Drive, Suite 202

Clearwater, Florida 33760

Woolmer Way, Bordon, Hampshire,

GU35 9QE, United Kingdom

EchoMaster is a Power Brand of AAMP Global

EchoMaster.com

GND (Black)

VIDEO

+12V (Red)

Thank you for purchasing your EchoMaster

automotive camera.

The following part numbers are supported:

u PCAM-DPLLP-N

EchoMaster cameras are designed to improve safety

during driving by providing high quality images of

surrounding areas and obstacles in the vicinity of the

vehicle. They will also improve maneuvering

capability by displaying blind spots not normally

visible to the driver.

Please ensure you read and understand all aspects

of this manual before ttng or using your EchoMaster

Camera. Choose a suitable mounting place dependent

on the application. Ensure that there are no wiring

harnesses or hoses/pipes located behind this panel

before drilling.

Introduction

Key Features

u 1/3” CMOS Sensor

u Dynamic Parking Guidelines show

trajectory of reversing car

u Operates at 0.5 LUX

u IP67 Rated

u 170 degree Viewing Angle

u License Plate Bracket Included

u 3 Year Warranty

u Camera

u License Plate Bracket

u Installation Hardware

u Wiring Harness

u Manual

License Plate Mount Universal

Reverse Camera with

Dynamic Parking Lines

PCAM-DPLLP-N

REV 310318

Box Contents

Dimensions

Wiring Diagram
