IS12C

PCN2026

R02-21GR-1

INSTALLATION

12C

COMPACT ELECTRIC STRIKE

© 2021 dormakaba Canada Inc

www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com

The 12C Compact Electric Strike is one of the smallest and most

versatile strikes in the world today and is suitable for all types of door

frames. Designed to replace the mechanical strike plate.

Minimal effort is required when installing the unit and the compact size

assists with maintaining the integrity and strength of the door frame.

The 12C can be mounted on the right or left hand side of a frame and

operates in Fail-Secure mode only. The compact strike is exclusively

designed to retrofit “T” Strike applications.

WIRING AND CURRENT DRAW

The control circuit for the door strike is not polarity sensitive.

~90mA @ 12VDC current draw.

Continuously rated solenoid.

NOTE: The product must be installed in applications where it will be not

exposed to wind and weather (external gates etc.).

METAL FRAME

WOOD FRAME

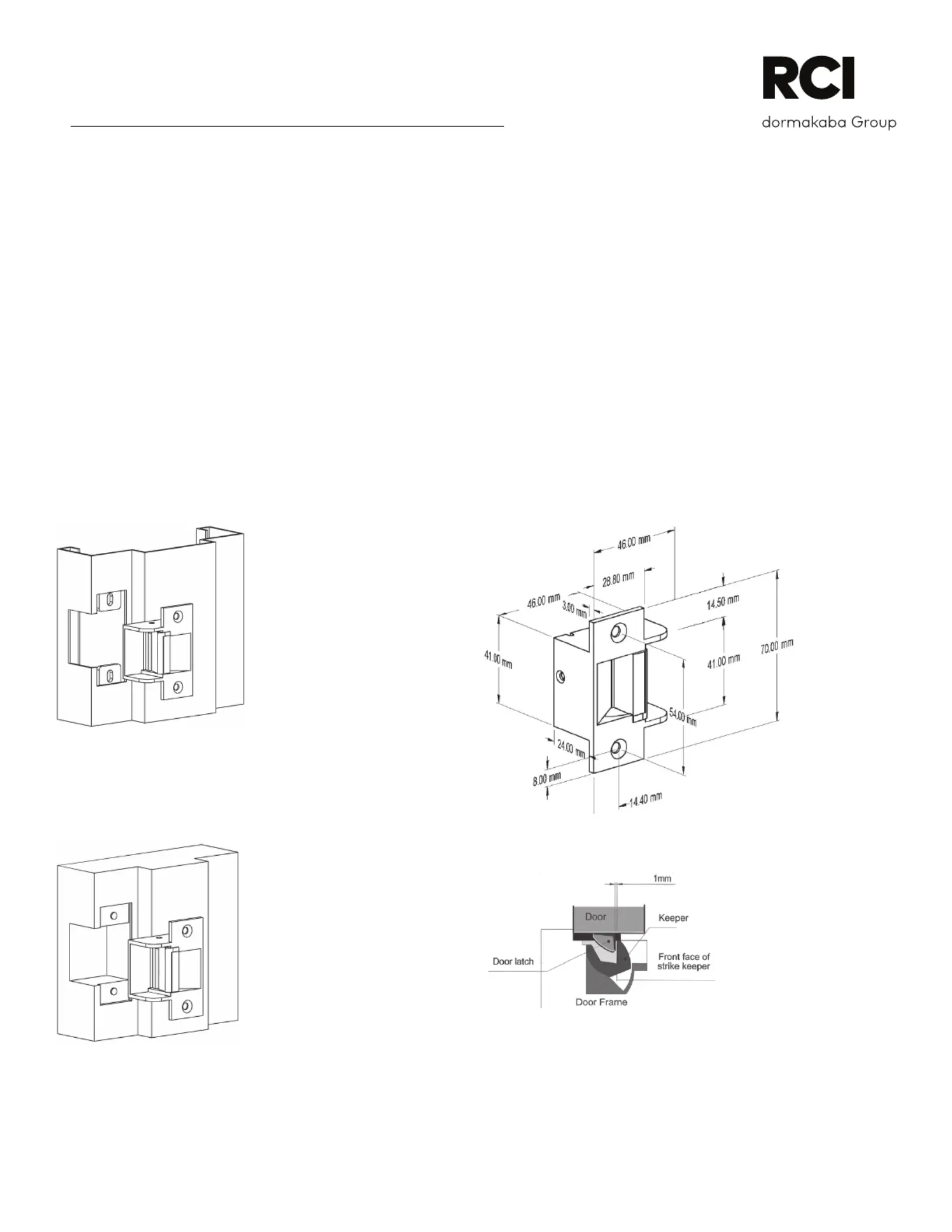

DIMENSIONS

DOOR LATCH POSITION

As drawn in the diagram, there should be a 1mm gap between the door

latch and the front face of the strike keeper, preventing the door from

creating back pressure on the strike keeper when the door is closed.

This gap is important to ensure the proper functioning of the strike.
