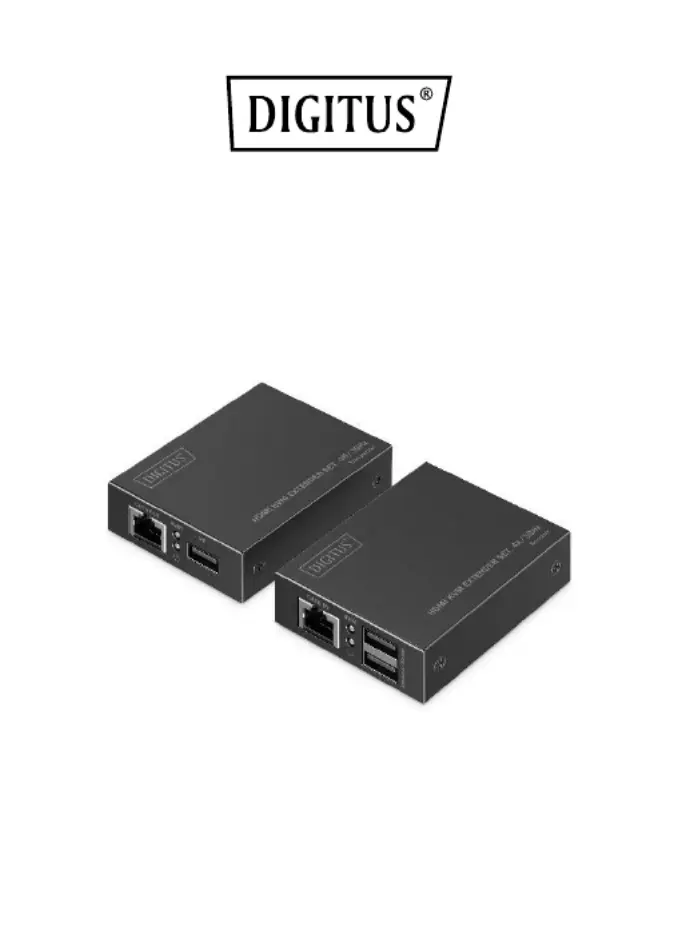

Pagina 1/12
HDMI KVM
Extender Set, 4K/30Hz
Installation Guide
DS- 357 55
2
Table of Contents
1. Introduction ------------------------------------------------------ 3
2. Main Features ---------------------------------------------------- 4
3. Package Content ------------------------------------------------- 4
4. Specification ------------------------------------------------------ 5
5. Interfaces 7----------------------------------------------------------
5.1 Transmitter (TX) --------------------------------------------- 7
5.2 Receiver (RX) ------------------------------------------------- 8
6. Installation Requirements 9------------------------------------
7. Installation Procedures -------------------------------------- 10
7.1 Connection Diagrams ------------------------------------ 10
7.2 Connection Instructions - -------------------------------- 10
8. FAQ --------------------------------------------------------------- 11
Important Safety Instructions:
• Do not disassemble the device to repair during the
working process to avoid electric shock
• Please cut off the power before installation. Live
installation may damage the equipment
• Do not expose the devices to rain, moisture and liquid
• Use only the power supply units, which are part of the
package content
3
1. Introduction
The HDMI KVM Extender Set (4K/30Hz) enables lossless and
virtually latency-free (10-20 ms) transmission of AV signals in
Ultra HD resolution (4K/30Hz) over up to 40 meters using a
CAT6 or higher-quality network cable. Thanks to the
integrated KVM function, the mouse and keyboard can be
connected directly to the receiver side, enabling convenient
remote control.
The system supports both uncompressed HDMI signal
transmission in 4K/30Hz over 40 meters and Full HD
(1080p/60Hz) transmissions over up to 70 meters. The
ultra-low latency technology ensures virtually lag-free image
playback (10-20 ms latency) and a seamless user experience.
For easy and flexible installation, the set offers PoC (Power
over Cable) support so that only the transmitter unit needs
to be supplied with a power supply unit. Thanks to Plug &
Play installation, quick and uncomplicated commissioning is
guaranteed.
The HDMI KVM Extender Set is the ideal solution for
professional applications, conference rooms, industrial
control systems or home theater setups that require high-
resolution signal transmission with additional control
options.
