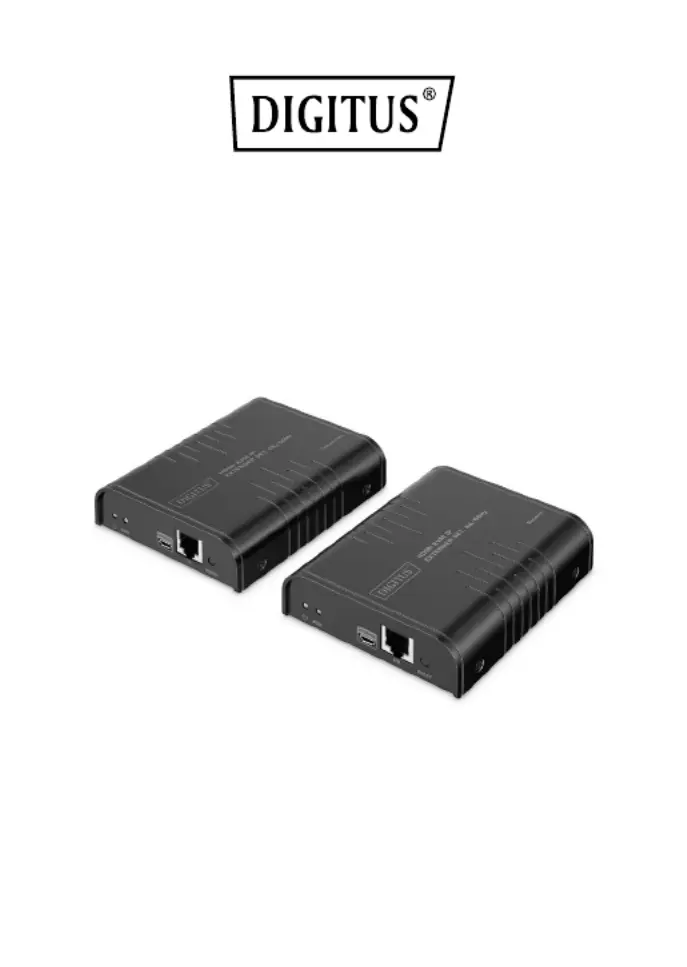

HDMI KVM IP
Extender Set, 4K/60Hz
Installation Guide
DS 55- 355 - 356 , DS 55
2
Table of Contents
1. Introduction ------------------------------------------------------- 3
2. Main Features ----------------------------------------------------- 4
3. 55355) Package Content -(DS 4----------------------------------
4. Specification ------------------------------------------------------- 5
5. Interfaces----------------------------------------------------------- 7
5.1 Transmitter (TX) ---------------------------------------------- 7
5.2 Receiver (RX) -------------------------------------------------- 8
6. 10 Installation Requirements -----------------------------------
7. Installation Procedures --------------------------------------- 10
7.1 How to make a C 6 network cableAT ------------------ 10
7.2 Connection Diagrams ------------------------------------- 11
7.3 Connection Instructions ---------------------------------- 12
8. FAQ ---------------------------------------------------------------- 13
Important Safety Instructions:
• Do not mix up the HDMI Extender S ender and HDMI
Extender Receiver eceiver , and the IR laster and IR B R
• Do not plug in/out the cables, when it is in using
• Use only the power supply units, which are part of the
package content.
3
1. Introduction
The HDMI KVM IP Extender Set enables the high-resolution
transmission of HDMI AV signals in brilliant 4K UHD quality
(4096x2160p at 60Hz) over up to 200 meters using CAT6 or
higher-quality network cables. Thanks to the integrated KVM
function, the mouse, keyboard and touchscreen devices can
be used directly on the receiver side, enabling convenient
control.
The system impresses with its flexible expandability and
supports point point connections as well as point- -to - -to
multipoint transmissions with up to 253 receivers. By using
an existing 1G network infrastructure or additional network
switch, signal transmission can be extended to unlimited
distances (cascading). A low latency of only 120 to 170 ms
ensures almost delay-free image reproduction in excellent
quality. In addition, optional receivers (model: DS-55356) can
be purchased separately to extend the range of applications
individually.
Thanks to its simple connectivity and control, the HDMI KVM
IP Extender Set is ideal for companies, conference rooms,
digital signage and professional AV applications where
reliable, low- -latency and high resolution signal transmission
is required.
