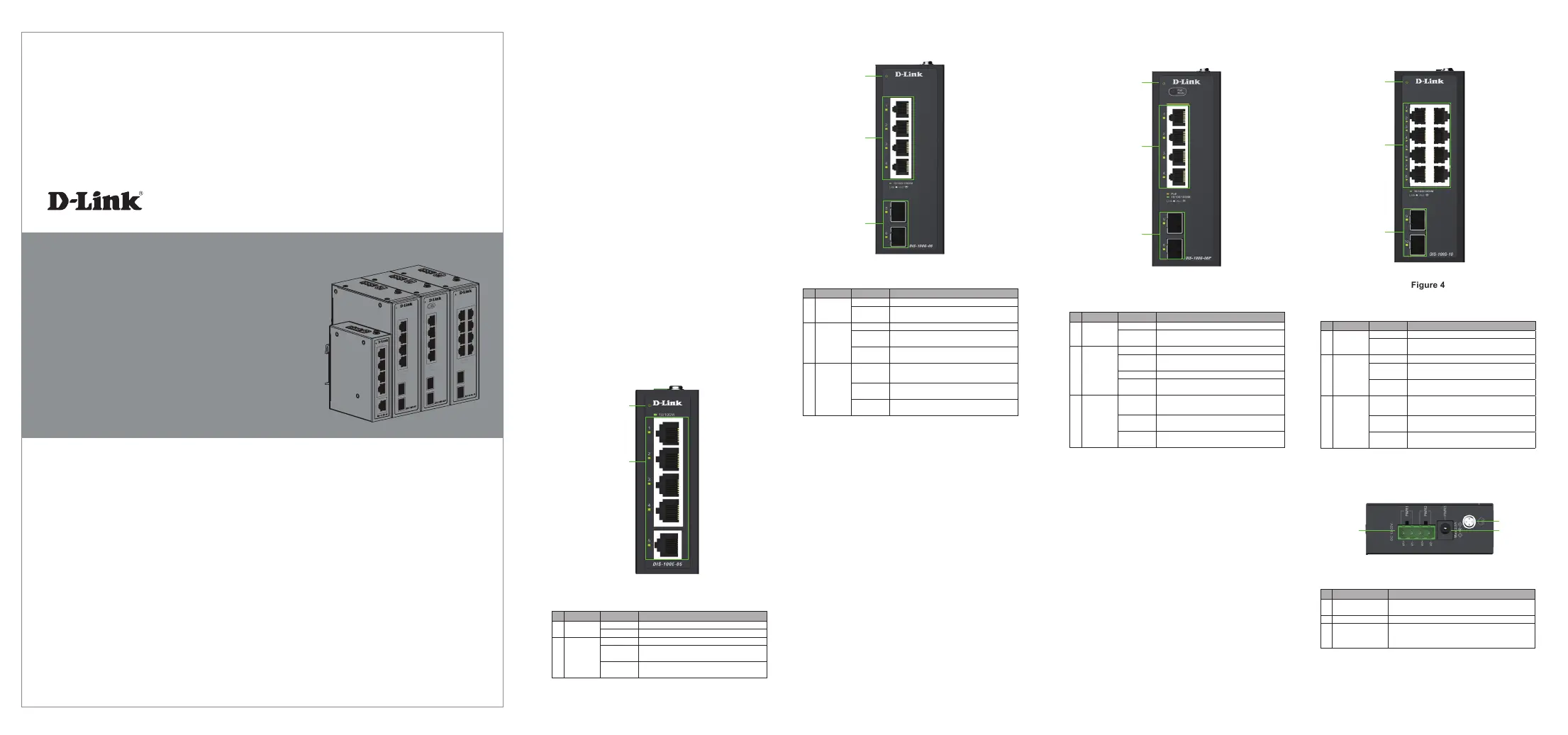

This document will guide you through the

basic installation process for your new D-Link

Industrial Ethernet Switch.

DIS-100E/G Series

Quick Installation Guide

Industrial Ethernet Switch

Documentation is also available

on the D-Link website

DIS-100G-06

Figure 2

#LEDStatusDescription

1Power

Solid GreenDevice power on

Light

O

Device power o

2Port 1 - 4

Solid GreenSecure 10/100/1000 Mbps connectivity

Blinking

Green

Transmitting/receiving data

Light

O

No connectivity

3Port 5 - 6

Solid GreenSecure 1000 Mbps connectivity

Blinking

Green

Transmitting/receiving data

Light

O

No connectivity

Before You Begin

The DIS-100E-05, DIS-100G-06, DIS-100G-06P and

DIS-100G-10 unmanaged Industrial Gigabit Ethernet

Switch solutions are designed for supporting

standard industrial applications without complex

setup to make the network truly plug-and-play.

Package Contents

This package should include the following items:

• DIS-100E/G switch

• DIN rail mounting kit

• DC power terminal block

• Quick installation guide

• SFP Connector Cover (Except DIS-100E-05)

If any of the above items are damaged or missing,

please contact your local D-Link reseller.

Hardware Overview

LED Indicators

DIS-100E-05

2

1

Figure 1

#LEDStatusDescription

1Power

Solid GreenDevice power on

Light ODevice power o

2Port 1 - 5

Solid GreenSecure 10/100 Mbps connectivity

Blinking

Green

Transmitting/receiving data

Light

O

No connectivity

1

2

3

DIS-100G-10

Figure 4

#LEDStatusDescription

1Power

Solid GreenDevice power on

Light

O

Device power o

2Port 1 - 8

Solid GreenSecure 10/100/1000 Mbps connectivity

Blinking

Green

Transmitting/receiving data

Light

O

No connectivity

3Port 9 - 10

Solid GreenSecure 1000 Mbps connectivity

Blinking

Green

Transmitting/receiving data

Light

O

No connectivity

#LEDStatusDescription

1Power

Solid GreenDevice power on

Light

O

Device power o

2Port 1 - 4

Solid GreenSecure 10/100/1000 Mbps connectivity

Blinking

Green

Transmitting/receiving data

Solid AmberTransmitting power to powered device (PD)

Light

O

No connectivity

3Port 5 - 6

Solid GreenSecure 1000 Mbps connectivity

Blinking

Green

Transmitting/receiving data

Light

O

No connectivity

1

2

3

Top Panel Connectors

Figure 5

#ConnectorDescription

1Terminal Block

Input Used to connect the switch to external

power adapter

2Switch GroundUsed to ground the switch

3Power Input

Input Used to connect the switch to external

power adapter. This only for system. Doesn’t

support PoE function.

1

2

3

DIS-100G-06P

Figure 3

1

2

3
