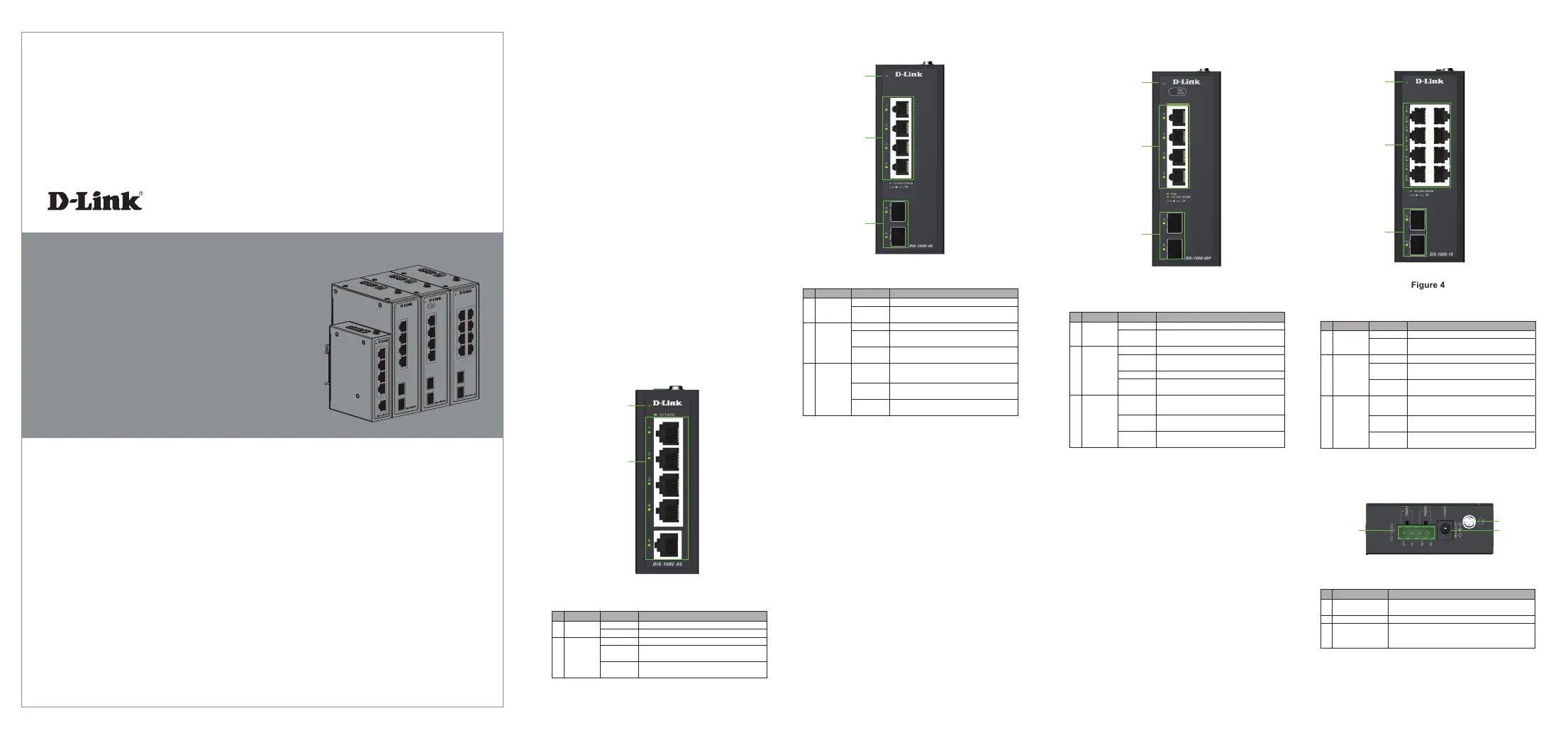

This document will guide you through the
basic installation process for your new D-Link
Industrial Ethernet Switch.
DIS-100E/G Series
Quick Installation Guide
Industrial Ethernet Switch
Documentation is also available
on the D-Link website
DIS-100G-06
Figure 2
#LEDStatusDescription
1Power
Solid GreenDevice power on
Light
O
Device power o
2Port 1 - 4
Solid GreenSecure 10/100/1000 Mbps connectivity
Blinking
Green
Transmitting/receiving data
Light
O
No connectivity
3Port 5 - 6
Solid GreenSecure 1000 Mbps connectivity
Blinking
Green
Transmitting/receiving data
Light
O
No connectivity
Before You Begin
The DIS-100E-05, DIS-100G-06, DIS-100G-06P and
DIS-100G-10 unmanaged Industrial Gigabit Ethernet
Switch solutions are designed for supporting
standard industrial applications without complex
setup to make the network truly plug-and-play.
Package Contents
This package should include the following items:
• DIS-100E/G switch
• DIN rail mounting kit
• DC power terminal block
• Quick installation guide
• SFP Connector Cover (Except DIS-100E-05)
If any of the above items are damaged or missing,
please contact your local D-Link reseller.
Hardware Overview
LED Indicators
DIS-100E-05
2
1
Figure 1
#LEDStatusDescription
1Power
Solid GreenDevice power on
Light ODevice power o
2Port 1 - 5
Solid GreenSecure 10/100 Mbps connectivity
Blinking
Green
Transmitting/receiving data
Light
O
No connectivity
1
2
3
DIS-100G-10
Figure 4
#LEDStatusDescription
1Power
Solid GreenDevice power on
Light
O
Device power o
2Port 1 - 8
Solid GreenSecure 10/100/1000 Mbps connectivity
Blinking
Green
Transmitting/receiving data
Light
O
No connectivity
3Port 9 - 10
Solid GreenSecure 1000 Mbps connectivity
Blinking
Green
Transmitting/receiving data
Light
O
No connectivity
#LEDStatusDescription
1Power
Solid GreenDevice power on
Light
O
Device power o
2Port 1 - 4
Solid GreenSecure 10/100/1000 Mbps connectivity
Blinking
Green
Transmitting/receiving data
Solid AmberTransmitting power to powered device (PD)
Light
O
No connectivity
3Port 5 - 6
Solid GreenSecure 1000 Mbps connectivity
Blinking
Green
Transmitting/receiving data
Light
O
No connectivity
1
2
3
Top Panel Connectors
Figure 5
#ConnectorDescription
1Terminal Block
Input Used to connect the switch to external
power adapter
2Switch GroundUsed to ground the switch
3Power Input
Input Used to connect the switch to external
power adapter. This only for system. Doesn’t
support PoE function.
1
2
3
DIS-100G-06P
Figure 3
1
2
3
