BL1450U
USER MANUAL
YOUR ULTIMATE ALLY IN POWER
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
Thank you for purchasing a CyberPower product. Please take a few minutes to register your
product at: www.cyberpower.com/registration. Registration certifies your product’s warranty,
confirms your ownership in the event of a product loss or theft and entitles you to free technical
CAUTION! To prevent the risk of fire or electric
shock, install in a temperature and humidity
controlled indoor area free of conductive
contaminants. (Please see specifications for ac-
ceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock,
do not remove the cover except to service the
battery. Turn o and unplug the unit before
servicing the batteries. There are no user ser-
viceable parts inside except for the battery.
CAUTION! Hazardous live parts inside can be
energized by the battery even when the AC
input power is disconnected.
CAUTION! The UPS must be connected to an
AC power outlet with fuse or circuit breaker
protection. Do not plug into an outlet that is
not grounded. If you need to de-energize this
equipment, turn o and unplug the unit.
CAUTION! To avoid electric shock, turn o the
unit and unplug it from the AC power source
before servicing the battery.
CAUTION! To reduce the risk of fire, connect
only to a circuit provided with 20 amperes
maximum branch circuit over current protec-
tion in accordance with the National Electric
Code, ANSI/NFPA 70.
DO NOT USE FOR MEDICAL
OR LIFE SUPPORT EQUIPMENT!
CyberPower Systems does not sell products for
life support or medical applications. DO NOT
use in any circumstance that would aect the
operation and safety of life support equipment,
medical applications, or patient care.
DO NOT USE WITH OR NEAR AQUARIUMS!
To reduce the risk of fire or electric shock, do
not use with or near an aquarium. Condensa-
tion from the aquarium can cause the unit to
short out.
DO NOT USE THE UPS
ON ANY TRANSPORTATION!
To reduce the risk of fire or electric shock, do
not use the unit on any transportation such
as airplanes or ships. The eect of shock or
vibration caused during transit and the damp
environment can cause the unit to short out.
PRODUCT REGISTRATION
FEATURES
1. Power Switch
2. Power On Indicator
3. LCD Module Display
4. LCD Display Toggle/Selected Switch
5. USB Charging Ports
6. Battery and Surge Protected Outlets
7. Full-time Surge Protected Outlets
8. Circuit Breaker
9. USB Ports to PC
10. Communication Protection Ports
11. Wiring Fault Indicator (red)
12. Coax/Cable/DSS Surge Protection
13. Widely-Spaced Outlets
IMPORTANT SAFETY WARNINGS (SAVE THESE INSTRUCTIONS)
This Manual Contains Important Instructions that should be followed during Installation and
Maintenance of the UPS and batteries.
1450VA
AVR
USB USB-C
1
2
3
4
6
7
8
9
11
10 12
13 13
INSTALLING YOUR UPS SYSTEM
INSTALLING YOUR UPS SYSTEM - continued
INTRODUCTION
Thank you for selecting a CyberPower Systems
UPS product. This UPS is designed to provide
unsurpassed power protection, operation and
performance during the lifetime of the product.
UNPACKING
Inspect the UPS upon receipt.
The box should contain the following:
(a) UPS
(b) User’s manual
(c) USB A+B type cable
*PowerPanel® Personal software is available
on our website. Please visit www.cyberpower.
com and go to the Software Section for free
download.
OVERVIEW
The BL1450U provides complete power pro-
tection from utility power that is not always
consistent. The BL1450U features 800 Joules
of surge protection. The unit provides long
lasting battery backup during power outages
with maintenance free batteries. The BL1450U
ensures consistent power to your computer
system and includes software that will automat-
ically save your open files and shutdown your
computer system during a utility power loss.

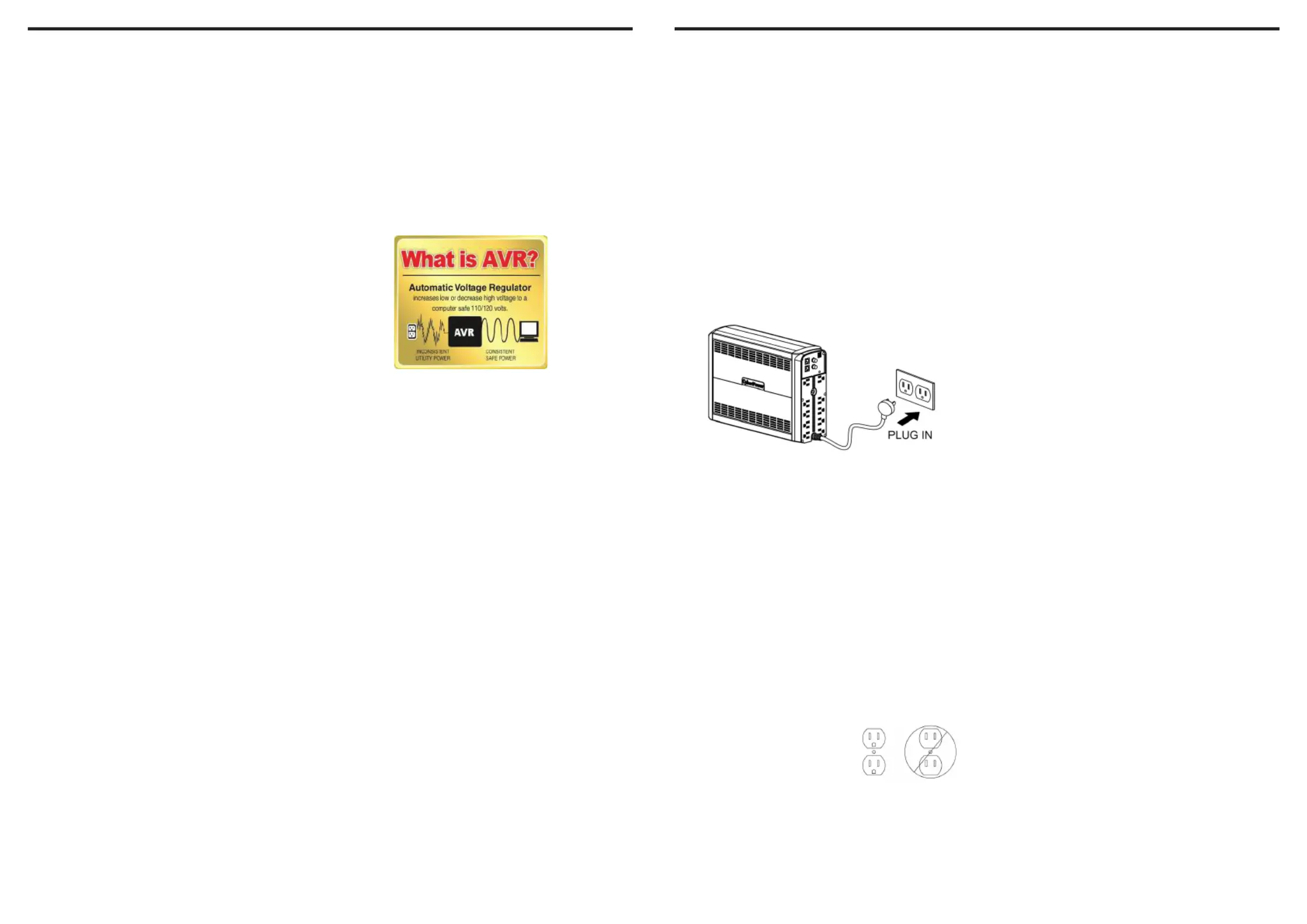

AUTOMATIC VOLTAGE REGULATOR
The BL1450U stabilizes inconsistent utility power
voltage to nominal levels that are safe for equip-
ment. Inconsistent incoming utility power may be
damaging to important datales and hardware,
but with Automatic Voltage Regulation (AVR),
damaging voltage levels are corrected to safe
levels. AVR automatically increases low utility
power to a consistent and safe 110/120 volts.
DETERMINE THE POWER
REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into
the outlet does not exceed the UPS’s rated
capacity. If the rated capacity of the unit is
exceeded, an overload condition may occur
and cause the UPS to shut down or the circuit
breaker to trip.
2. There are many factors that can aect
the amount of power that your computer
system will require. For optimal system per-
formance keep the load below 80% of the
unit’s rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately
upon receipt. However, after receiving a
new UPS, to ensure the battery’s maximum
charge capacity, it is recommended that you
charge the battery for at least 8 hours. Your
UPS is equipped with an auto-charge fea-
ture. When the UPS is plugged into an AC
outlet, the battery will automatically charge
whether the UPS is turned on or o.
Note: This UPS is designed with a safety fea-
ture to keep the system from being turned
on during shipment. The first time you turn
the UPS on, you will need to have it connect-
ed to AC power or it will not power up.
2. With the UPS unit turned o and unplugged,
connect your computer, monitor, and any
other peripherals requiring battery backup
into the battery power supplied outlets DO
NOT plug a laser printer, paper shredder,
copier, space heater, vacuum, sump pump
or other large electrical devices into the
“Battery and Surge Protected Outlets”.
The power demands of these devices may
overload and damage the unit.
3. Plug the UPS into a 2 pole, 3 wire ground-
ed receptacle (wall outlet). Make sure the
wall branch outlet is protected by a fuse or
circuit breaker and does not service equip-
ment with large electrical demands (e.g. air
conditioner, copier, etc.).
The warranty prohibits
the use of extension
cords, outlet strips, and
surge strips in conjunc-
tion with the UPS unit.
4. Press the power switch to turn the unit
on. The Power On indicator lights up and
the unit will “beep” twice. If an overload is
detected, an audible alarm will sound and
the unit will emit one long beep. To correct
this, turn the UPS o and unplug at least one
piece of equipment from the battery power
supplied outlets. Make sure the circuit break-
er is depressed and then turn the UPS on.
5. To maintain optimal battery charge, leave the
UPS plugged into an AC outlet at all times.
6. To store the UPS for an extended period,
cover it and store with the battery fully
charged. While in storage, recharge the
battery every three months to ensure
battery life.
7. Ensure the wall outlet and UPS are
located near the equipment being attached
for proper accessibility.
Replacement of batteries located in an
OPERATOR ACCESS AREA
1. When replacing batteries, replace with the
same number of the following battery:
CyberPower / RB1270X2C for the BL1450U.
2. Risk of Energy Hazard, 24 V, CAUTION!
maximum 9 Ampere-hour battery. Before
replacing batteries, remove conductive
jewelry such as chains, wrist watches, and
rings. High energy conducted through these
materials could cause severe burns.
3. CAUTION! Do not dispose of batteries in a
fire. The batteries may explode.
4. CAUTION! Do not open or mutilate batter-
ies. Released material is harmful to the skin
and eyes. It may be toxic.
5. CAUTION! A battery can present a risk of
electrical shock and high short circuit cur-
rent. The following precautions should be
observed when working on batteries:
1) Remove watches rings, or other metal
objects.
2) Use tools with insulated handles.
CAUTION - RISK OF EXPLOSION IF BATTERY
IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO LOCAL REGULATIONS.
REMINDER: Batteries are considered
HAZARDOUS WASTE and must be disposed
of properly. Most retailers that sell lead acid
batteries collect used batteries for recycling, as
required by local regulations.

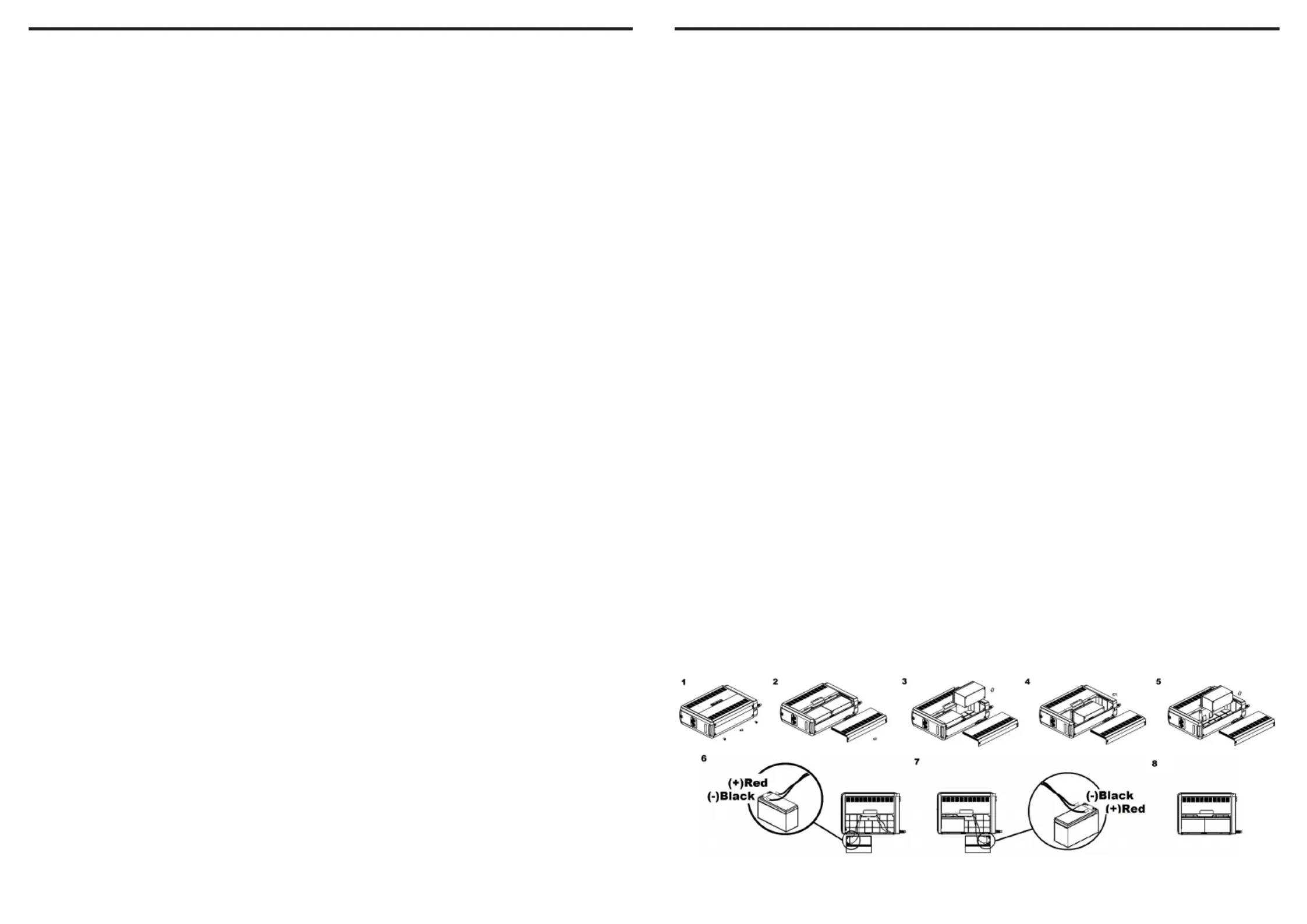

BATTERY REPLACEMENT PROCEDURE
1. Turn o and unplug all connected
equipment.
2. Turn the UPS o and unplug it from the AC
power source.
3. Turn the UPS on its side on a solid surface
4. Remove two retaining screws located on the
bottom of the UPS.
5. Press on the locking latch and slide the
battery compartment cover.
6. Disconnect the battery wires from the right
side of the battery and then take it out of
the battery compartment.
7. Disconnect the battery wires from the
remaining battery.
8. Slide the remaining battery from left to right
and remove it from the compartment.
9. Install the “left side” replacement battery
by connecting the yellow wire (+) to the red
connector from the battery and the black
wire (-) to the black connector from the
battery. Place the battery into the left side
of the compartment.
10. Install the “right side” replacement battery
by connecting the red wire (+) to the red
connector from the battery and yellow wire
(-) to the black connector from the battery.
Place the battery into the right side of the
compartment. Note: Only new batteries
should be used for replacement and both
batteries should be replaced at the same
time to insure maximum life span.
11. Close the battery compartment cover and
tighten the retaining screws.
12. Recharge the UPS for 8-16 hours to fully
charge the battery.
REPLACING THE BATTERY
Yellow Wire to (+) Red Connector
Black Wire to (-) Black Connector
Red Wire to (+) Red Connector
Yellow Wire to (-) Black Connector
BASIC OPERATION
1. Power Switch
Used as the master on/o switch for equip-
ment connected to the battery power sup-
plied outlets. (Please refer to the Function
Setup Guide for more information.)
2. Power On Indicator
This LED is illuminated when the utility
power is normal and the UPS outlets are
providing power, free of surges and spikes
3. LCD Module Display
The LCD display shows all the UPS informa-
tion using icons and messages. For more in-
formation please review the “Definitions for
Illuminated LCD Indicators” section below.
4. LCD Display Toggle/Selected Switch
The switch can be used to select the LCD
display contents including Input Voltage,
Output Voltage, and Estimated Run Time.
Click the button to scroll down the function
menu. Pressing the button for 3 seconds will
keep the LCD display always on or turn the
LCD display o while in AC/Utility power
mode. For more information, please refer
the Function Setup Guide.
5. USB Charging Ports
The USB Charging ports provide 5V/3A max
(USB-C) and 5V/2.4A max (USB-A) power
output. Total available output current is 4A.
6. Battery and Surge Protected Outlets
The UPS has five battery powered/surge
suppression outlets for connected equip-
ment to ensure temporary uninterrupted
operation of your equipment during a power
failure. (DO NOT plug a laser printer, paper
shredder, copier, space heater, vacuum,
sump pump or other large electrical devic-
es into the “Battery and Surge Protected
Outlets”. The power demands of these de-
vices may overload and damage the unit.)
7. Full-Time Surge Protection Outlets
The UPS has five surge suppression outlets.
8. Circuit Breaker
Located on the back of the UPS, the circuit
breaker serves to provide overload and fault
protection.
9. USB Port to PC
The USB port allows connection and com-
munication between the USB port on the
computer and the UPS unit.
10. Communication Protection Ports
Communication protection ports, bi-direc-
tional, will protect a 10/100/1000 Ethernet
connection (RJ45).
11. Wiring Fault Indicator (red)
This LED indicator will illuminate to warn
the user that a wiring problem exists, such
as bad ground, missing ground or reversed
wiring. If this is illuminated, disconnect all
electrical equipment from the outlet and
have an electrician verify the outlet is prop-
erly wired. The UPS will not provide surge
protection without being plugged into a
grounded and properly wired wall outlet.
12. Coax/Cable/DSS Surge Protection
The Coax/Cable/DSS protection ports will
protect any cable modem, CATV converter,
or DSS receiver.
13. Widely-Spaced Outlets
The unit has two outlets spaced to allow AC
power adapter blocks to be plugged into
the UPS without blocking adjacent outlets.


Product specificaties

Merk: CyberPower
Categorie: UPS
Model: BL1450U

Heb je hulp nodig?

Als je hulp nodig hebt met CyberPower BL1450U stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
