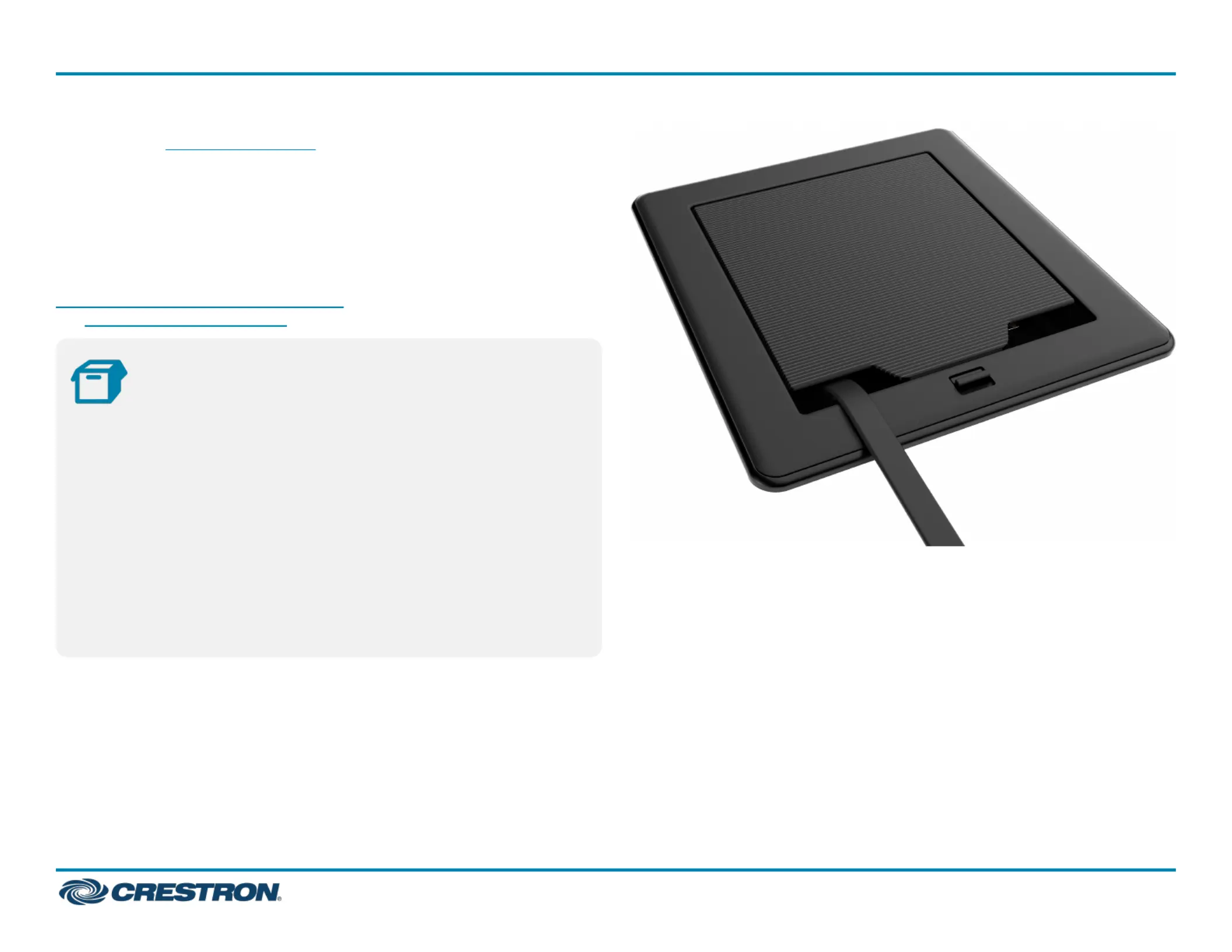

The Crestron® FlipTop™ cable management systemFT2-500-ELEC-PTL
installs into a table or other horizontal surface to provide modular
connectivity. It features a retracting lid that disappears within the
enclosure. When the lid is retracted, eight module slots are arranged in
two rows of four. The flexible modular design may also be customized
with an assortment of Crestron accessories, and the pass-through lid
style allows cables to be fully extended while the lid is closed.
For more information about the accessories, please visit
www.crestron.com/Crestron-FlipTops. To configure your FlipTop, launch
the .FlipTop Configuration Tool
In
In
In
InIn the
the
the
thethe Box
Box
Box
BoxBox
1
FT2-500-ELEC-PTL
Additional
Additional
Additional
AdditionalAdditional Items
Items
Items
ItemsItems
3 Locking Bars with screws and gaskets (4532634)
1 Cable, DC Power Splitter (2050094)
1 Connector, Plug (2003575)
1 Holder, Power Supply (2048887)
1 Power Cord, 5 ft 10 in. (1.78 m) (2042043)
1 Power Pack, 24VDC, 2.5 A, 100-240VAC (2045873)
1
Cutout Template (4528039)
FT2-500-ELEC-PTL
FT2-500-ELEC-PTL
FT2-500-ELEC-PTL
FT2-500-ELEC-PTLFT2-500-ELEC-PTL
QuickStart
FlipTop™
FlipTop™
FlipTop™
FlipTop™FlipTop™ FT2
FT2
FT2
FT2FT2 Series
Series
Series
SeriesSeries Cable
Cable
Cable
CableCable Management
Management
Management
ManagementManagement System,
System,
System,
System,System, 500
500
500
500500 Size,
Size,
Size,
Size,Size, Electrical,
Electrical,
Electrical,
Electrical,Electrical, Pass-Through
Pass-Through
Pass-Through
Pass-ThroughPass-Through Lid
Lid
Lid
LidLid
1
1
1
11
Mount
Mount
Mount
MountMount the
the
the
thethe FlipTop
FlipTop
FlipTop
FlipTopFlipTop Assembly
Assembly
Assembly
AssemblyAssembly
A mounting hole is required for an FT2-500-ELEC-PTL installation. Use
the included template to cut a mounting hole for new installations.
When determining the location for the FT2 assembly, consider where
users will be seated and their proximity to the FT2 assembly's modules
and retractors. Refer to the and seriesFT2A-CBLR-1T FT2A-CBLR-GR
cable retractors for above-the-table cable pull-out lengths.
Cut
Cut
Cut
CutCut the
the
the
thethe Mounting
Mounting
Mounting
MountingMounting Hole
Hole
Hole
HoleHole
A saw and the included cutout template are required to cut the
mounting hole.
1. Check the table surface and the area beneath the table. Clear any
obstructions that may impede the installation or functionality of the
FT2 assembly, retractors, and accessories.
2. Using the included cutout template, trace an outline of the mounting
hole onto the table.
3. Cut the mounting hole in the table with an appropriate saw.
Secure
Secure
Secure
SecureSecure the
the
the
thethe FlipTop
FlipTop
FlipTop
FlipTopFlipTop Assembly
Assembly
Assembly
AssemblyAssembly
To prepare the FT2-500-ELEC-PTL and secure it to the table surface:
1. Gently remove the bezel before securing the FT2 assembly to the
table. It is held in place with magnets.

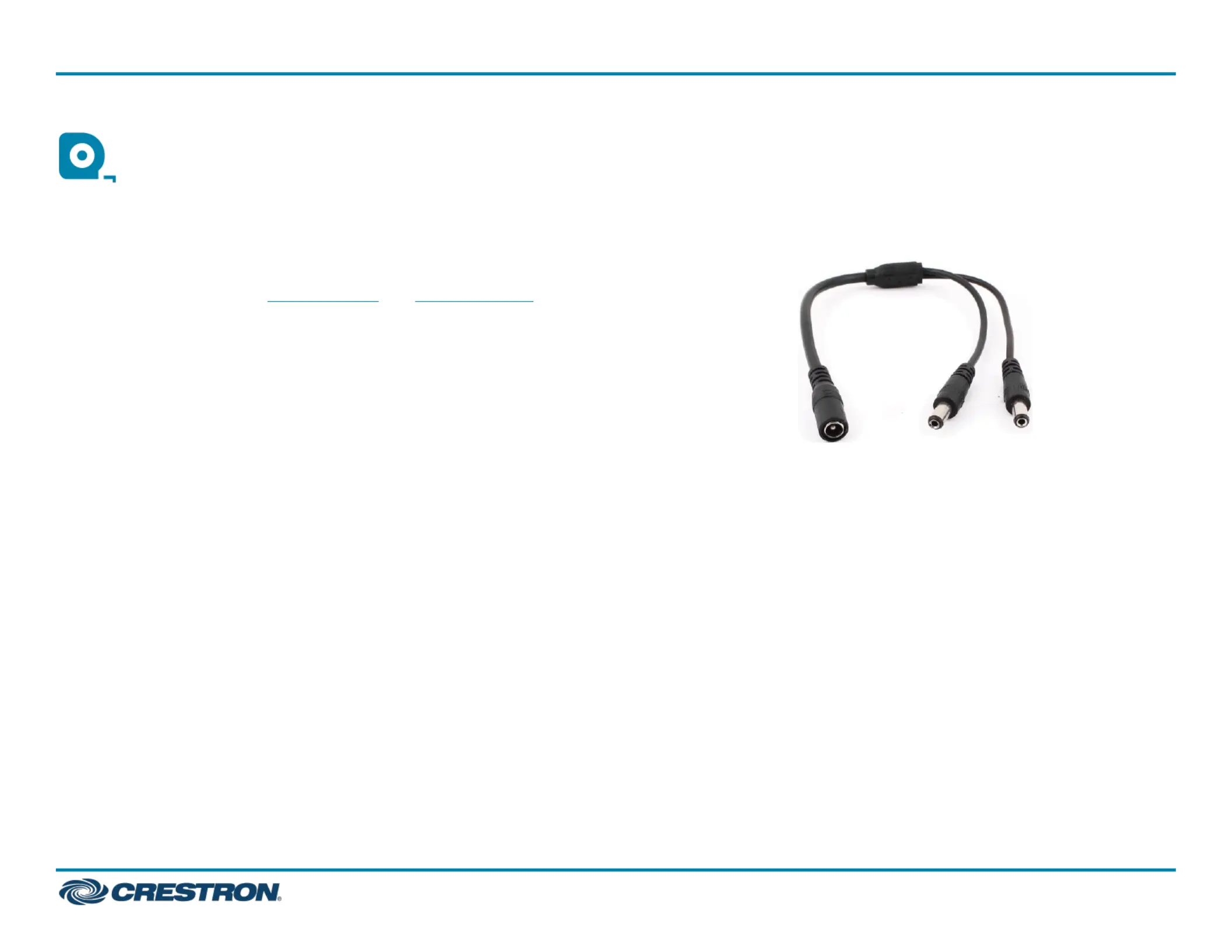

2. Locate the included DC power splitter cable.
2
2
2
22
FT2-500-ELEC-PTL
FT2-500-ELEC-PTL
FT2-500-ELEC-PTL
FT2-500-ELEC-PTLFT2-500-ELEC-PTL
QuickStart
FlipTop™
FlipTop™
FlipTop™
FlipTop™FlipTop™ FT2
FT2
FT2
FT2FT2 Series
Series
Series
SeriesSeries Cable
Cable
Cable
CableCable Management
Management
Management
ManagementManagement System,
System,
System,
System,System, 500
500
500
500500 Size,
Size,
Size,
Size,Size, Electrical,
Electrical,
Electrical,
Electrical,Electrical, Pass-Through
Pass-Through
Pass-Through
Pass-ThroughPass-Through Lid
Lid
Lid
LidLid

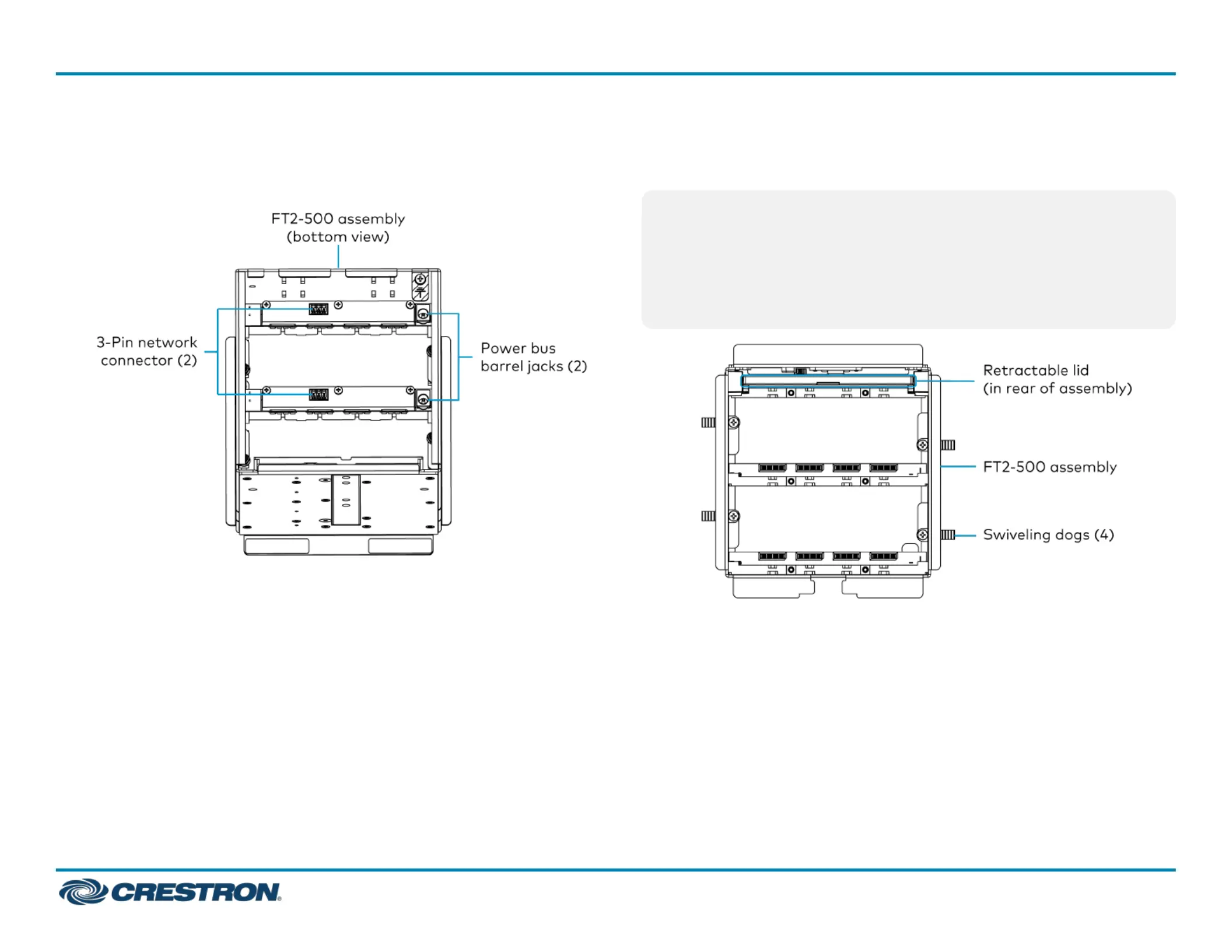

3. On the underside of the FT2 assembly, locate the power bus and
connect the dual-connector ends of the DC power splitter cable to
the two barrel jacks of the power bus. The cable will be accessed later
in .Connect the FlipTop Assembly
4. Ensure that all four swiveling dogs are tucked inside of the FT2
assembly, and then insert the FT2 assembly into the mounting hole
until the top lip is flush with the table surface.
5. Carefully tighten the four swiveling dogs in each corner of the FlipTop
assembly clockwise until the FT2 assembly is secured in place against
the table. Do not overtighten the swiveling dogs.
CAUTION:
CAUTION:
CAUTION:
CAUTION:CAUTION: A screwdriver or manual torque screwdriver at its lowest
setting may be used to tighten the swiveling dogs. Avoid stripping
the swiveling dogs and damaging the table.
If removing the FT2-500-ELEC-PTL from the table, ensure that the
screwdriver rotation is set correctly before loosening the swiveling
dogs.
3
3
3
33
FT2-500-ELEC-PTL
FT2-500-ELEC-PTL
FT2-500-ELEC-PTL
FT2-500-ELEC-PTLFT2-500-ELEC-PTL
QuickStart
FlipTop™
FlipTop™
FlipTop™
FlipTop™FlipTop™ FT2
FT2
FT2
FT2FT2 Series
Series
Series
SeriesSeries Cable
Cable
Cable
CableCable Management
Management
Management
ManagementManagement System,
System,
System,
System,System, 500
500
500
500500 Size,
Size,
Size,
Size,Size, Electrical,
Electrical,
Electrical,
Electrical,Electrical, Pass-Through
Pass-Through
Pass-Through
Pass-ThroughPass-Through Lid
Lid
Lid
LidLid
