Insert tube stiffener with chemical tubing into

corresponding chemical dispensers.

5

STEP

BLUERED

WHITE

1

STEP

Connect 110/120V, 60HZ hard wired power

supply to power box. DO NOT USE POWER

CORD OR GFI OUTLET.

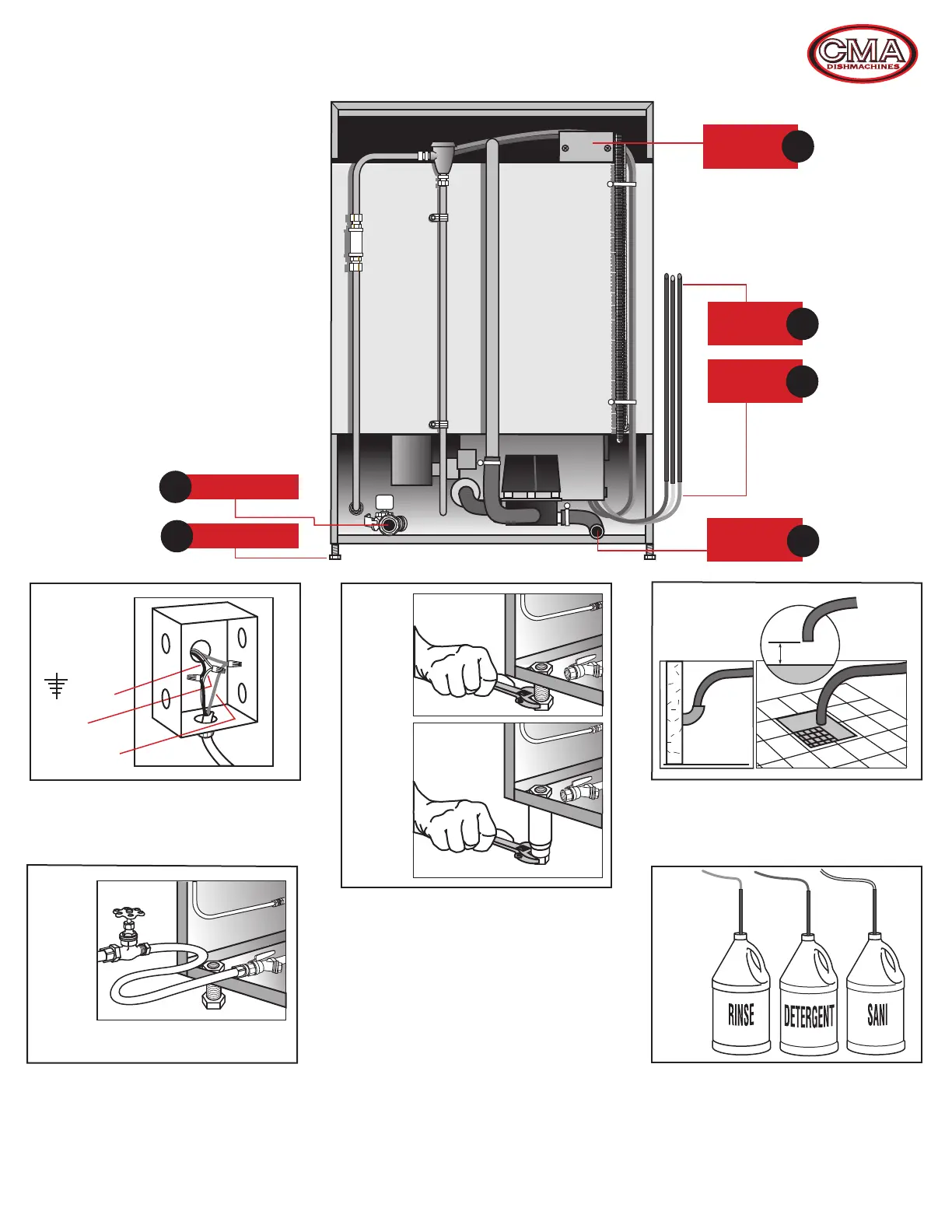

L -1X16 / L -1X

Quick Setup

Instructions

ELECTRICAL

CONNECTION

1

TUBE

STIFFENER

5

CHEMICAL

TUBING

5

DRAIN HOSE

CONNECTION

4

1/2" WATER INLET

2

LEVELING LEGS

3

Connect the drain hose to wall or floor drain.

The floor drain must have a 1 inch air gap

between drain hose and floor drain.

WALL DRAIN

FLOOR DRAIN

1"AIR GAP

4

STEP

WARNING: Electrical and plumbing

connections need to be made by a

licensed service person and comply

with all Federal, State and Local

Health, Electrical, Plumbing and

Safety codes.

11-2016

REAR VIEW

HOT

NEUTRAL

GROUND

Connect dishmachine to hot water source

recommended 140

0

temperature (120

0

minimum temperature required).

STEP

2

Level dishmachine by adjusting leveling legs.

Dishmachine must be level front and back to

ensure proper performance.

3

STEP

L-1X16 LEG

ADJUSTER

L-1X LEG

ADJUSTER

PN: 10130.11
