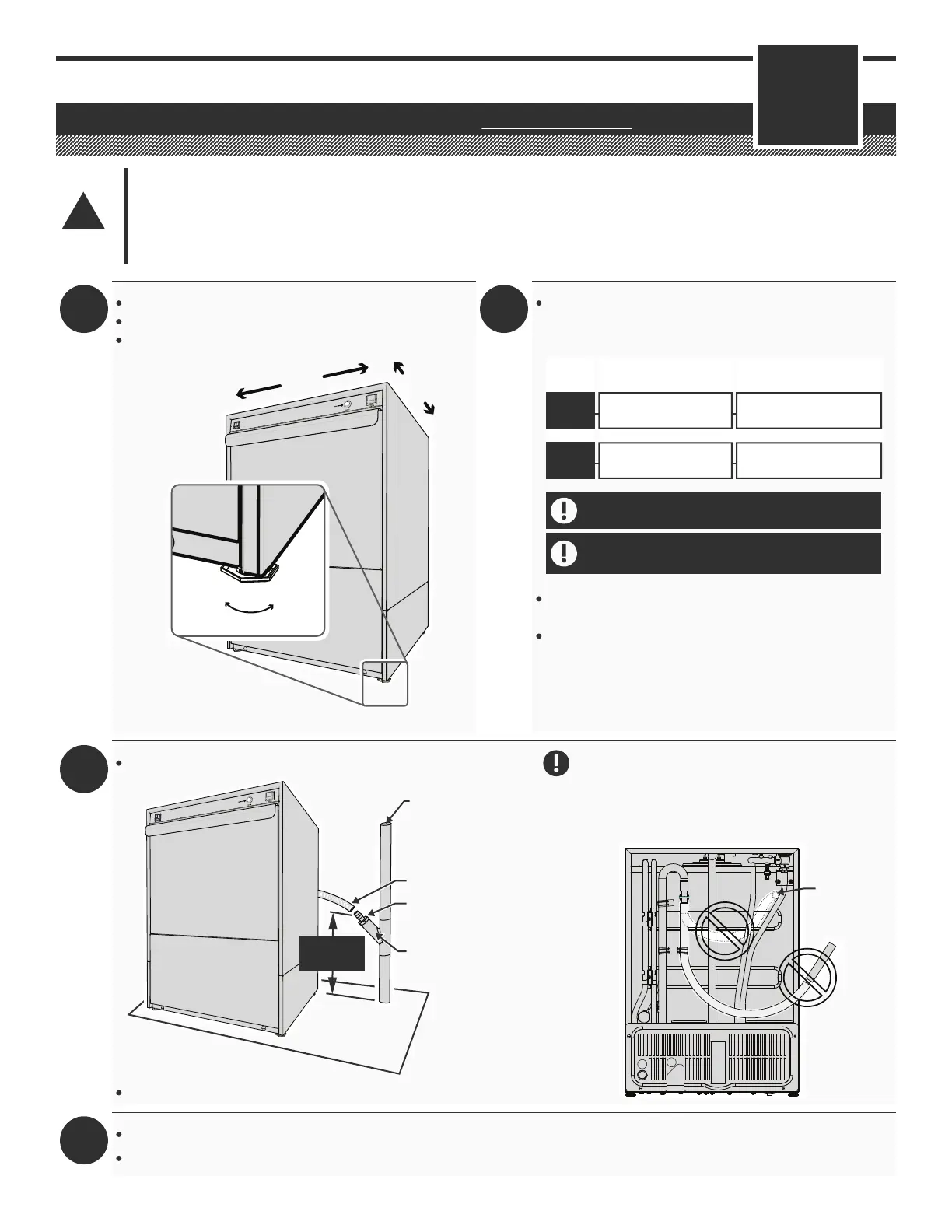

ATTENTION PLUMBERS

All plumbing connections must be made by qualied installers familiar with food service equipment in

accordance with all local plumbing codes.

Plumbing connections must be made BEFORE electrical installation begins. Damage to the water heaters will

occur if power is turned on without adequate water supply.

All plumbing connections must be positioned to allow the unit to be removable for service and cleaning.

!

1

Place dishwasher in permanant location.

Level Dishwasher with 4 levelling feet.

Level side to side, and front to back.

Remove lower front panel.

2

Ensure water temperature and pressure meet

the following MINIMUM requirements for optimal

perfomance of the unit.

4

kW

140ºF / 60ºC

BOOSTER

ELEMENT

MINIMUM INCOMING

TEMPERATURE

20PSI / 138kPa

6

kW

110ºF / 43ºC20PSI / 138kPa

MINIMUM INCOMING

PRESSURE

MINIMUM ½ IN. WATER SUPPLY LINE

IF RINSE FLOW PRESSURE IS ABOVE 22 PSI,

P.R.V. MUST BE INSTALLED AND ADJUSTED

3

6 ft. ll hose with ¾” NPT tting supplied

Note: A shuto valve should be installed on

incoming water line.

4 ft. clear braided drain hose supplied

Installation plumber has responsibility to thoroughly

ush incoming water line before connecting unit.

4

Plumbing installation is now complete.

Electrician may now proceed with the supplied Undercounter Installation’s Electrical sheet.

Drain connection with dedicated waste strongly recommended



FAILURE TO FOLLOW THESE INSTRUCTIONS WILL VOID WARRANTY!

•extension added to drain hose

•syphon loop modied or removed

•supplied drain tting not used

WARRANY VOID IF:

060

10

2040

30

50

psi

3/4 IN. MNPT

HOSE ADAPTER

DRAIN HOSE

DRAIN MUST BE

VENTED TO PREVENT

SYPHONING

1-1/2 IN. WYE

FITTING

*18IN.

OPTIMUM

*3FT. MAX OFF

FL

OOR LEVEL

060

10

2040

30

50

psi

L

E

V

E

L

L

E

V

E

L

LEVEL ADJUSTMENT

+

MODIFIED

DRAIN HOSE

UC65e

M3
