11-2017

GW-100 Carousel

Glasswasher

Quick Setup

Instructions

1

STEP

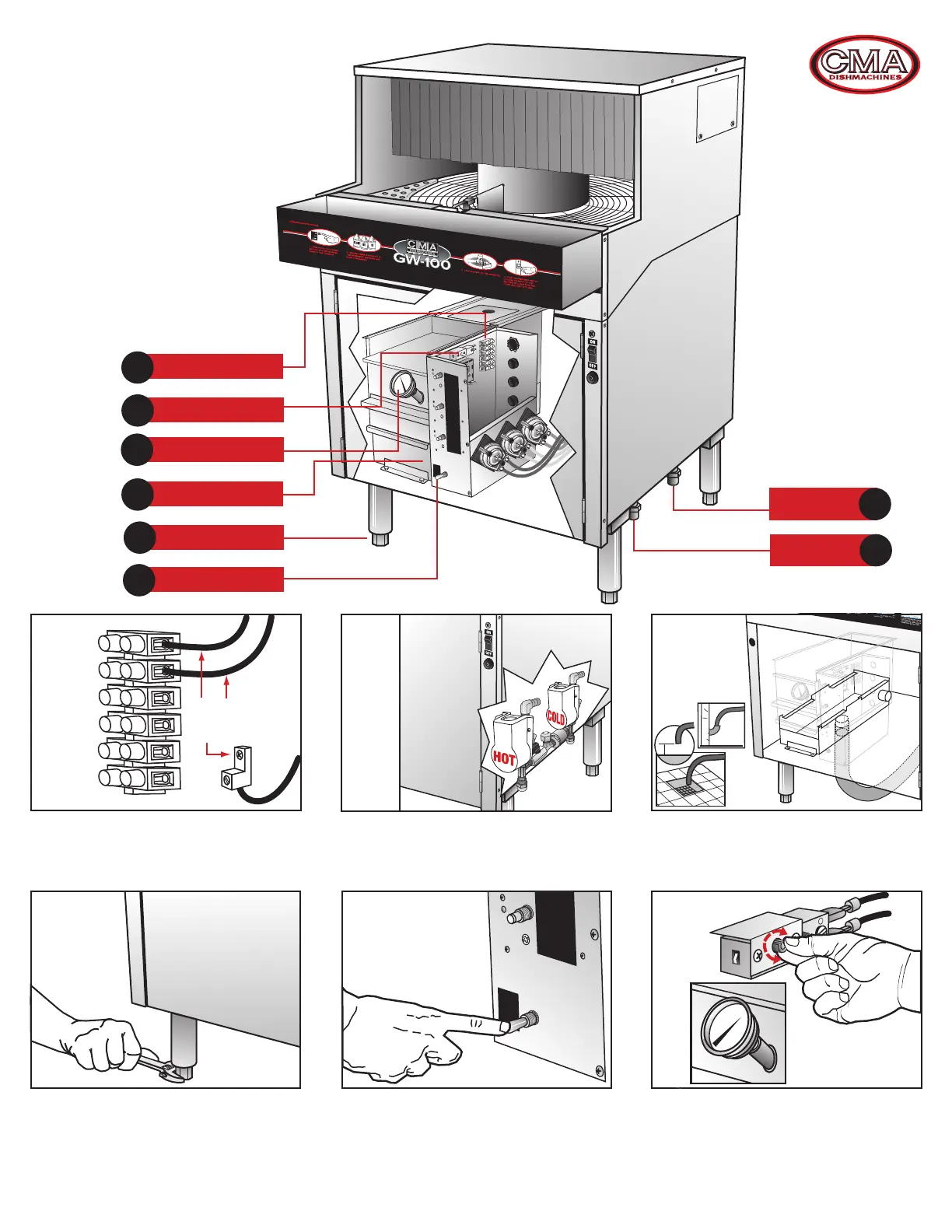

Connect the drain hose to the FLOOR DRAIN. If

floor drain is not available connect to the wall. Floor

drain must have a (1 inch) air gap between the drain

hose and the floor drain.

Adjust heater thermostat to 140F.

Connect water lines (hot 140F/160F) and (cold

75F) to water solenoid valves.

Flip power "on-off/flush" switch to "ON" position.

Wash tank will automatically fill.

Connect L1 and L2 leads to the power block and

ground wire to ground lug.

4

STEP

PRIME

RINSE

CONCENTRATION

FLUSH

OFF

ON

Level dishmachine by adjusting leveling legs.

Dishmachine must be level front and back to

ensure proper performance.

GROUND

L2

(N)

L1

HOT WATER

INLET

2

COLD WATER

INLET

2

2

STEP

5

STEP

6

STEP

140

3

STEP

FLOOR

DRAIN

1"AIR GAP

WALL

DRAIN

WARNING: Electrical and plumbing

connections need to be made by a

licensed service person and comply

with all Federal, State and Local

Health, Electrical, Plumbing and

Safety codes.

HEATER THERMOSTAT

POWER BLOCK

1

POWER SWITCH

5

6

THERMOMETER

DRAIN CONNECTION

3

LEVELING LEGS

4

6

PN: 1013039
