Talkback not recommended above 80dB

TYPICAL REPLY DISTANCE CHART

Maximum Talkback Reply Distance

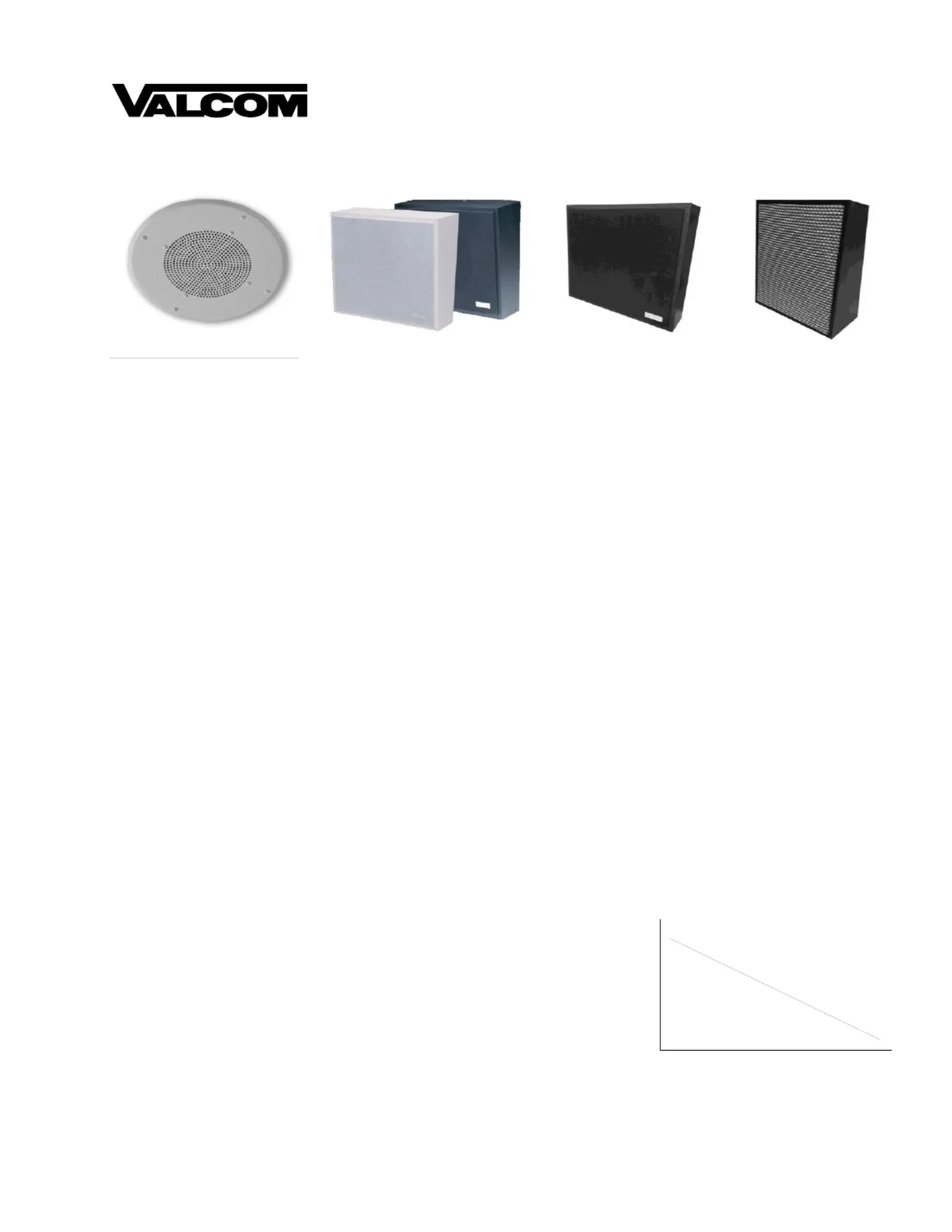

45 OHM TALKBACK INTERIOR SPEAKERS

`

V-1060A V--W, V--BK 10611061V-1062AV-1063A

INTRODUCTION

These instructions contain the specications and

guidelines necessary to install, operate and maintain

Valcom 45 Ohm Talkback Interior Speaker

Assemblies.

The 45 Ohm Talkback Interior Speaker Assemblies

are for use with the Valcom "handsfree" talkback

page control units and are for interior use only.

SPECIFICATIONS

Features

45 Ohm Impedance

8 Inch Speaker

Easy Hook-up (2 connections using house cable

or station wire)

Dimensions/Weight

8” Ceiling Speaker s:

V- talkback speaker 1060A

13.00" Diameter x 2.50" D

(33.02cm Diameter x 6.35cm D)

2.5 lbs. (1.13 kg)

Wall Speakers:

V-1- black vinyl w/black cloth grille106BK

V--W white vinyl w/white cloth grille 1061

9.60" H x 11.50" W x 4.20" D

(24.38cm H x 29.21cm W x 10.67cm D)

4 lbs. (1.81 kg)

V- wood grain w/light brown weave grille1062Aopen

V- wood grain dark brown cloth grille1063Aw/

10.60" H x 9.70" W x 5.20" D

(26.cm H x 24.cm W x 13.cm D) 926421

4.0 lbs. (1.81 kg)

Environment

Temperature: 20 to +55oC

Humidity: 0 to 95% non precipitating

SYSTEM DESIGN

General

The 45 Ohm Talkback Speakers are designed to be

used with the Valcom "handsfree" talkback control

units. In combination with these units, they will

provide both loudspeaker and talkback functions.

A standard Valcom talkback paging system is made

up of three basic components:

1. A talkback page control unit

2. Speakers (45 Ohm)

3. A power supply

Coverage

The distance you can be away from a speaker and

still have good talkback depends on the type of

speaker and the ambient noise level. In a typical

oce environment, a wall speaker (V--W, 1061

V--BK, V-1062A, V-1063A,) will cover 1061

approximately 600 square feet when mounted eight

feet from the oor. V-1060A ceiling speaker

coverage ison ceiling height; the greater dependent

the ceiling height, the larger the area covered.
