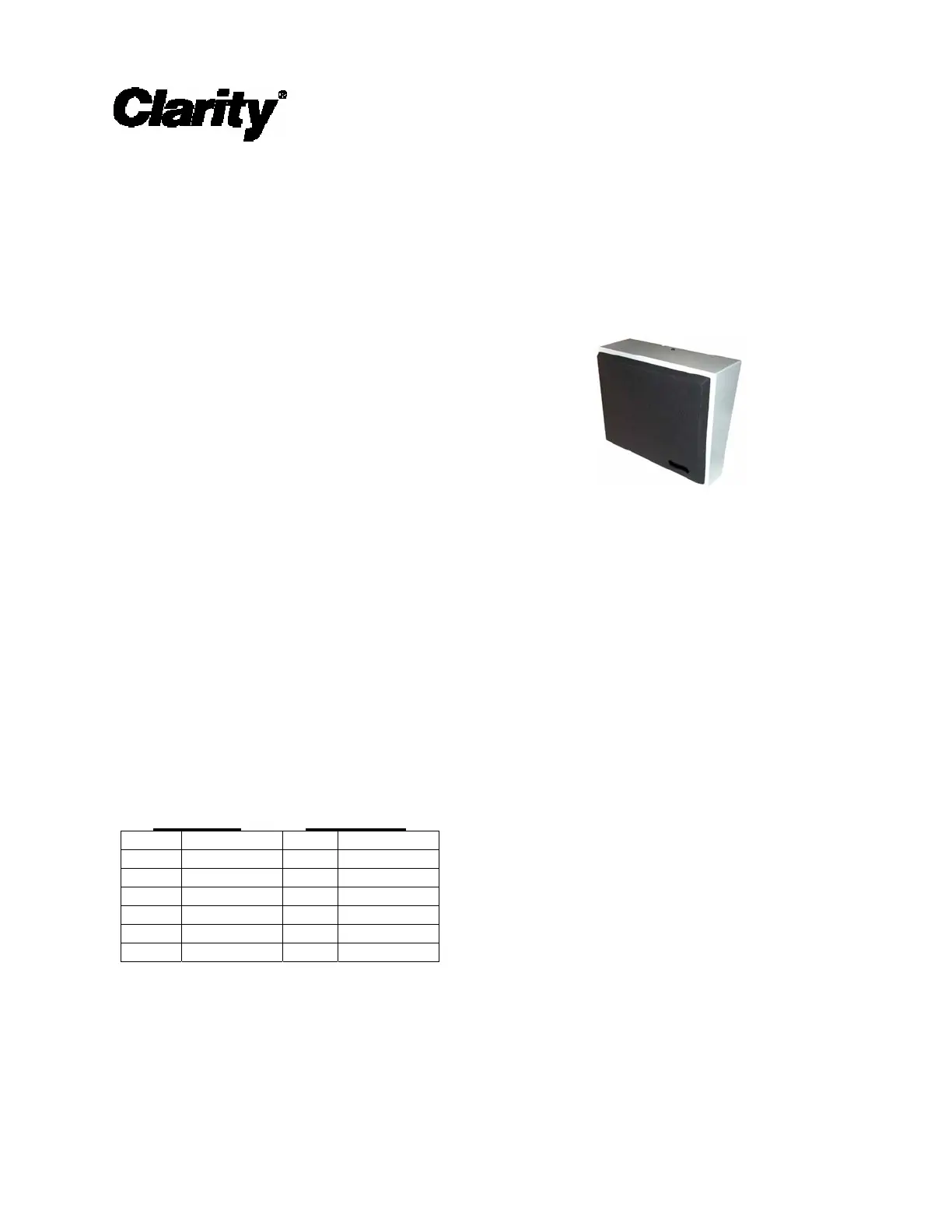

Issue 1

1 947459

S-504

INSTALLATION INSTRUCTIONS

INTRODUCTION

The interior wall speaker, the S-504, is a

speaker/transformer/baffle assembly for use with

any Clarity Mixer-Amplifiers. The enclosure is

made of steel with a durable powder coated

finish. The color of the enclosure can easily be

changed to match any décor. A cloth covered

detachable grille is included with the S-504 wall

speaker. The unit contains an 8” full range

speakers.

MOUNTING

Remove the screw holding the mounting bracket

to the enclosure. Mount the bracket using

appropriate hardware such as #8 pan head

crews. After making the required connections,

reattach the enclosure to the mounting bracket.

DIMENSIONS/WEIGHT

•10.13” H x 12.31” W x 4.63” D

(25.73cm x 31.27cm W x 11.75cm D)

•Weight: 4.25 LBS (1.91 kg)

Transformer Tap Color Code

25 Volt Line 70.7 Volt Line

Color Designation Color Designation

BLK Common BLK Common

BRN 5W GRN 5W

RED 2.5W WHT 2.5W

ORN 1.25W BLU 1.25W

GRN 0.625W GRY 0.625W

WHT 0.312W VIO 0.312W

Technical Specifications

Frequency Response: 65 to 17K

Maximum Power Capability: 5 Watts

SPL @ 4 Feet with 1 Watt Input: 98dB

Transformer Taps (Watts): 5/16, 5/8, 1-/4,

2-1/2 and 5

Line Voltage: 25 or 70V

S-504

Wall Mount Speaker

Gray W/ Black Grille

Environment

Temperature: 0 to +50 Degrees C

Humidity: 0 to 85% non-precipitating

Coverage

These wall speakers will cover an area up to

600 square feet. Wall speakers should be

spaced 20 feet apart, with good quality paging

being heard up to 30 feet in front of the speaker.

TECHNICAL ASSISTANCE

When trouble is reported, verify the unit is turned

on and there are no broken connections leading

to this unit. Assistance in troubleshooting is

available from the factory. When calling, you

should have a VOM available and be calling

from the job site. Call (540) 563-2000 and ask

for Technical Support or visit our website at

http://www/clarity-com.com.

CLARITY maintains service facilities in

Roanoke, VA. Should repairs be necessary,

attach a tag to the unit clearly stating company

name, address, phone number, contact person

and the nature of the problem. Send the unit to:

Clarity

Repair and Return Dept.

5614 Hollins Road

Roanoke, VA 24019-5056
