BT1-D016-A-ENG1/2© 2022.10 CANON INC.

MOUNTING AND CONNECTING

1. Loosen the large and small lock knobs of the clamper supplied with the focus

demand, and then mount the clamper to the pan handle of the tripod.

2. After mounting the clamper to the pan handle, tighten the large and small lock

knobs to secure the clamper.

3. Mate the rose joint of the focus demand with the rose joint of the clamper. Then

tighten the mounting knob of the clamper to rmly secure the focus demand.

4. Plug the demand cable into the connector of "TO SERVO CONTROL" on the

lens, and the other side into the connector of the focus demand.

OPERATION AND FUNCTION

[ Focusing operation ]

Turning the operation knob on the focus demand brings the object into focus.

[ Changing the focus direction ]

The direction of far or near can be switched by shifting the reverse switch on the

focus demand.

The factory default setting is to focus on a farther object when turned clockwise

as viewed from the operation knob side.

[Selecting the focus characteristics curve]

The focus characteristics curve selector switch on the focus demand can be

used to select one of the focus characteristics from the following three modes.

Standard mode

Standard characteristics where the focus lens

group is moved almost linearly, relative to the

operation knob rotation angle.

Far mode

Focusing resolution for farther objects is

intentionally increased. This enables ne and

easy adjustment work for farther objects near

to innity.

Near mode

Focusing resolution for closer objects is

intentionally increased. This enables ne and

easy adjustment work for closer objects near

to M.O.D.

PRODUCT LIST

Make sure all of the following items are included in the packing box. If you nd

any item missing, please contact your dealer.

・

Focus Demand

・

Clamper

（

CR-30

）

・

Demand Cable

・

Operation Manual "Before Using The Product"

・

Operation Manual "Regulations"

Before using the product, make sure to read the "GENERAL SAFETY INFORMATION"

and be sure to use the product correctly.

Thank you for purchasing a focus demand FDJ-S01.This focus demand FDJ-S01 is

an accessory used to perform focus servo operations of a box type lens. The focus

can be operated remotely by using this demand.

Lens Accessory

Focus Demand

FDJ-S01

OPERATION MANUAL

This product comes with the following documents:

• Operation Manual "Before Using The Product"

（

Included with the product

）

• Operation Manual "Regulations"

（

Included with the product

）

• Operation Manual

（

Web

）

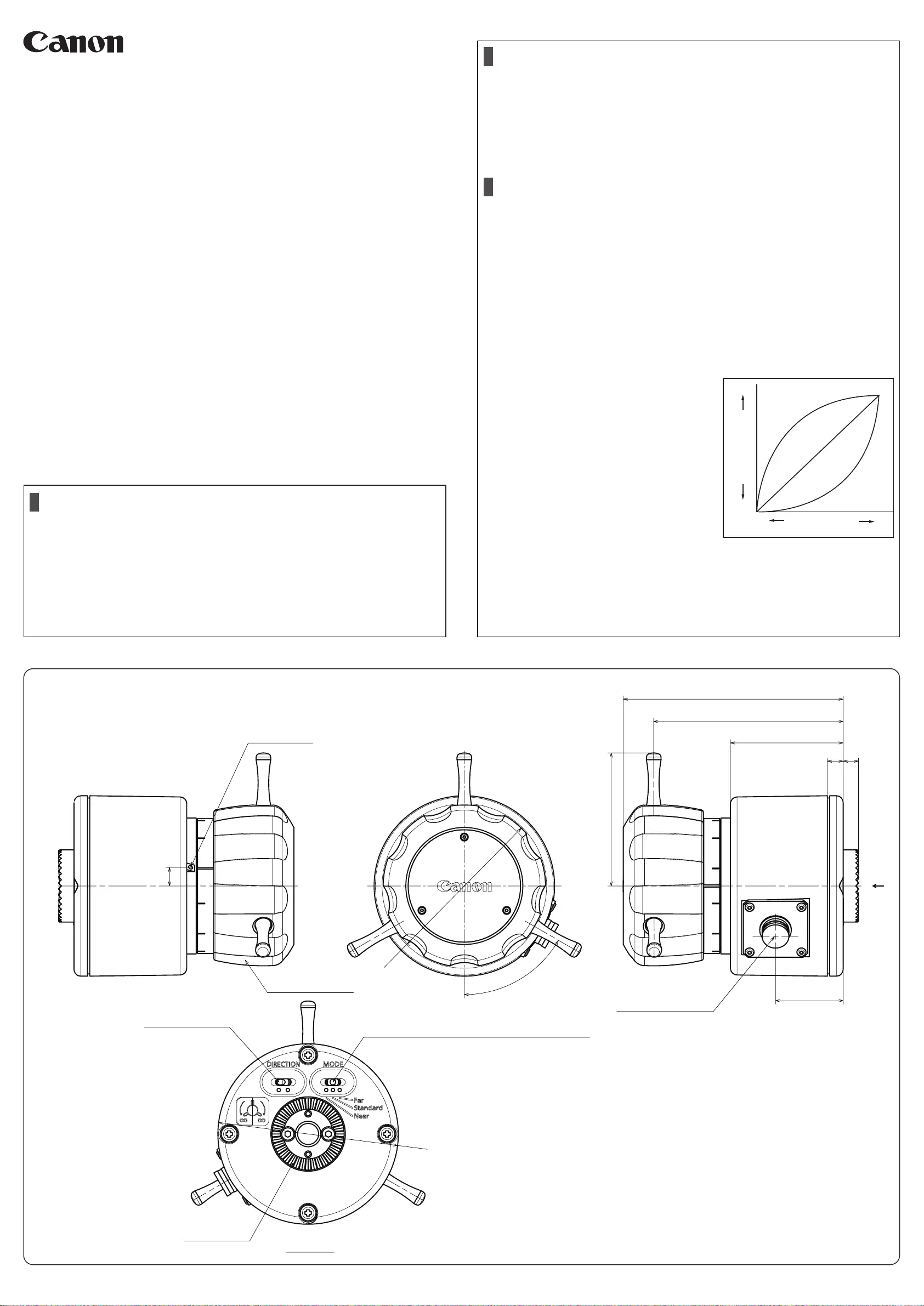

(Unit: mm)

VIEW A

φ80

30

A

φ72

60°

59

97

84

50

15°

77

Rose Joint

Connector to Lens

Operation Knob

Index Pin

Focus Characteristics Curve Selector Switch

Reverse Switch

[

External view

]

Knob Position

Focus Position

M.O.D.

Infinity

Standard Mode

Near Mode

Far Mode
