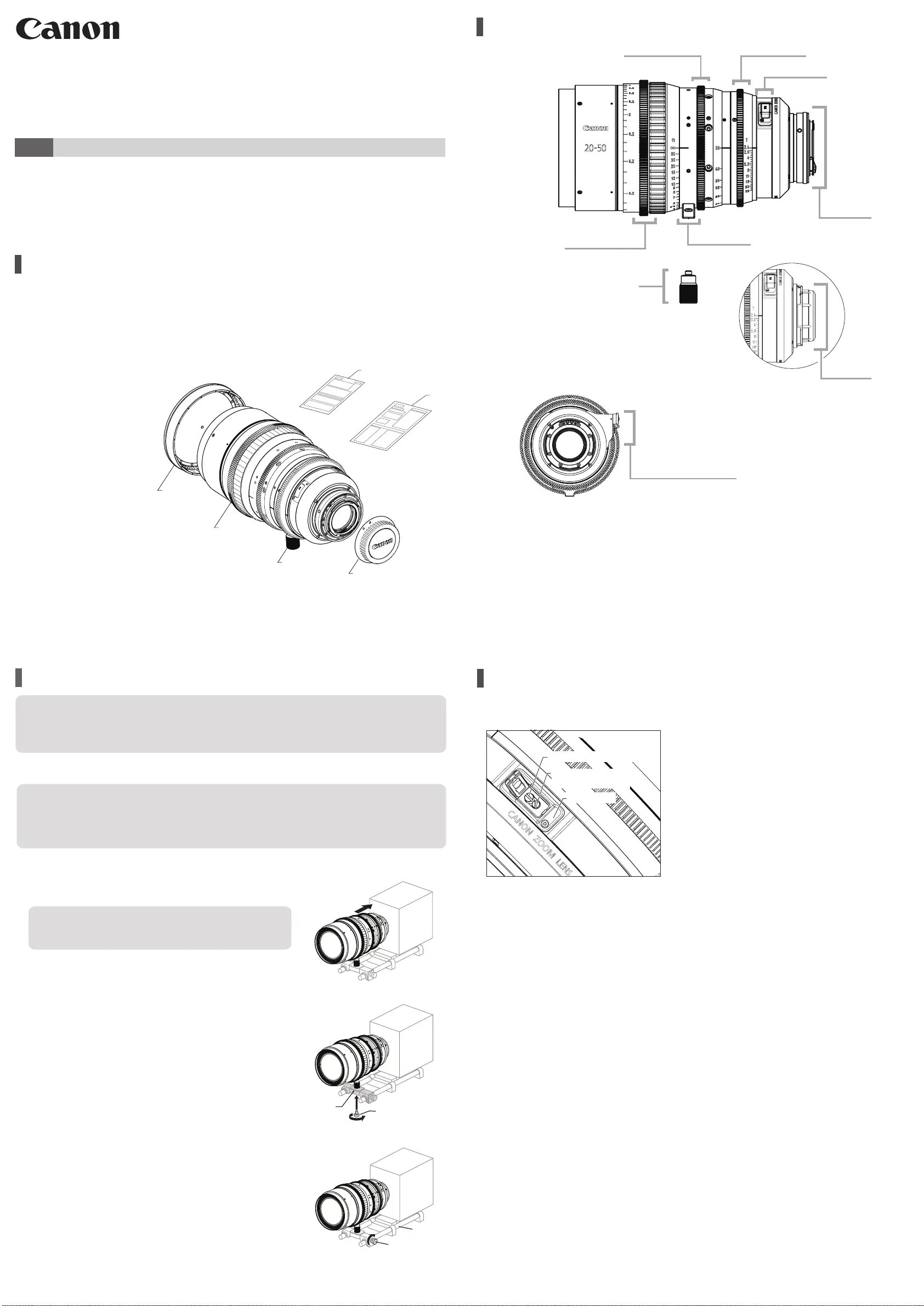

© 2023.07 CANON INC. BT1-D002-D-ENG
①
②
③
④
BACK FOCUS ADJUSMENT
NAMES OF PARTS
Focus drive gear
Zoom drive gear
Iris drive gear
Lens holder
F.B. Adjuster
PL mount
EF mount
Attachment holder
1. Open the rubber cap of F.B. adjuster and loosen the
F.B. adjusting xing
screw (black) using the standard
screwdriver.
2.
Select an object at an appropriate distance
*
.
Use any object with sharp contrast to facilitate the
adjustment work.
3.
Set the iris fully open.
4.
Set the lens to the telephoto angle by turning the zoom
ring.
5.
Bring the object into focus by turning the focus ring.
6.
Set the lens to the widest angle by turning the zoom ring.
7.
Turn the F.B. adjusting screw (gold) with a standard
screwdriver to focus.
8. Repeat steps 4 to 7 a few times until the object is
brought into focus both at the widest end and the
telephoto end.
9.
After the back focus adjustment is completed, tighten the
F.B. adjusting xing screw. Then close the rubber cap.
If the image formation plane of the lens and the focal plane of the camera are not aligned, the image will not be
in focus when zooming, resulting in out-of-focus images.
PL mount lenses are equipped with a LEMO 4-pin connector.
It connects to external devices that support Cookeʼs /i Technology.
①Lens body
②Lens cap
③Rear lens cap
④Attachment holder
⑤
Operation Manual
"
Before Using The Product
"
⑥
Operation Manual
"
Regulations
"
Make sure all of the following items are included in the packing box. If you nd any item missing, please
contact your Canon sales representative or dealer.
F.B. Adjusting Screw (Gold)
F.B. Adjustment
Fixing Screw (Black)
F.B. Adjuster
LEMO 4-pin
Connector
CN-E20-50mm T2.4 L F
/ CN-E20-50mm T2.4 L FP
CN-E45-135mm T2.4 L F
/ CN-E45-135mm T2.4 L FP
CN-E14-35mm T1.7 L S
/ CN-E14-35mm T1.7 L SP
CN-E31.5-95mm T1.7 L S
/ CN-E31.5-95mm T1.7 L SP
Digital Cinema Lens
Before using the product, make sure to read the "GENERAL SAFETY INFORMATION" and be sure to use the
product correctly.
This product comes with the following documents:
• Operation Manua
l "
Before Using The Product
"
(Included with the product)
• Operation Manual
"
Regulations
"
(Included with the product)
• Operation Manual (Web)
• Depth-of-eld (Web)
ENGOPERATION MANUAL
PRODUCT LIST
The illustrations in this manual show CN-E20-50mm T2.4 L F unless otherwise specied.
The shapes of product may vary depending on models and specications.
⑤
⑥
A variety of professional camera accessories are available using
φ
15 mm and
φ
19 mm rod adaptors.
(When using a
φ
19 mm rod, attach the supplied attachment holder to the lens holder.)
1. Attach the lens to the camera tightly so that both mounting surfaces are
in complete contact.
2. Secure the attachment holder on the lens support using
the clamping screw supplied with the lens support.
3. Fix the lens support to the rods using lens support xing screws.
MOUNTING AND CONNECTING
Lens suppor
t
Note
For details on how to attach the lens, refer to the camera's
operation manual as well.
For PL mount, read the following instructions before mounting the lens.
1.
The PL mount supports Cookeʼs /i Technology, so make sure that the camera is set to “/i”.
2.
Do not mount the lens if the camera is set to a mount communication mode other than “/i”. Doing so
could result in malfunction.
Note
1.
Before mounting the lens on the camera, make sure that the power of camera and the power of supply
equipment are turned o.
2.
Be sure to use the lens holder when mounting the lens on a camera. Be sure to avoid applying
excessive weight to the lens mount when the lens is mounted on a lens support.
*
CN-E20-50mm T2.4 L F / CN-E20-50mm T2.4 L FP
：approx. 0.9-1.8 m,
3
-
6 ft
CN-E45-135mm T2.4 L F / CN-E45-135mm T2.4 L FP
：approx. 1.8-3.7 m,
6
-
12 ft
CN-E14-35mm T1.7 L S / CN-E14-35mm T1.7 L SP
：approx. 0.9-1.8 m,
3
-
6 ft
CN-E31.5-95mm T1.7 L S / CN-E31.5-95mm T1.7 L SP
：approx. 1.8-3.7 m,
6
-
12 ft
Rods
Screw supplied with
the lens support
Lens support
xing screws
Product specificaties
| Merk: | Canon |
| Categorie: | Lens |
