INSTALLATION:

SAFETY PRECAUTIONS:

1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.

2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.

3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY

A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE

HAZARDS INVOLVED.

4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH

A CLEAN, SOFT CLOTH.

NOTE: Product may not look exactly as shown in figures.

Tel: (613) 342-5424, Fax: (800) 263-4598

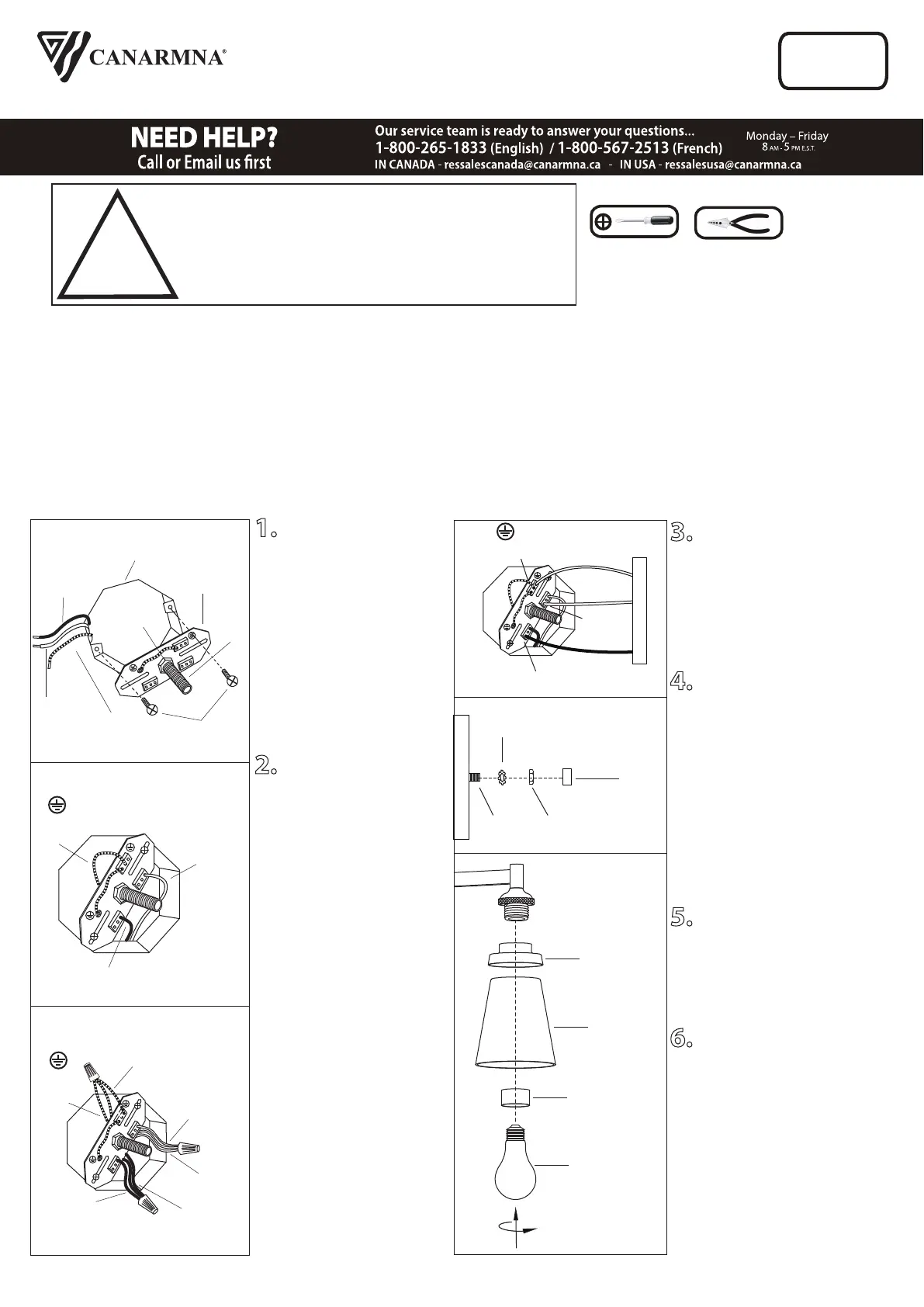

1. Attach nipple to

mounting bracket. Adjust

so it will clear hole in back

of fixture and then lock

nipple in place with hex

nut. Attach mounting

bracket to electrical box

with electrical box screws

(not included).

2. Option 1: Connect

(push) electrical wires from

electric box (house wiring)

into correct inserts.

Option 2: For multiple

green (ground), black (live)

and white (neutral) wires

joined in the electrical box

(house wiring), attach a

single “green”, “black” and

“white” jumper wire before

connecting. Strip 7mm

from a 6 in. jumper wires

supplied. Then connect

(push) wires into the

correct inserts.

Green

(Ground)

Green

(Ground)

Option 1

Option 2

Green (Ground)

3. Connect (push) electrical

wires from fixture into correct

inserts.

4. Once connections of

wires are completed, carefully

tuck wires and wire nuts into

the electrical box making sure

no bare wire (on the black and

white) is visible at the wire

nuts. Position hole in fixture

over nipple and secure in

place with star washer, hex nut

and cap nut.

5. Remove spinner nut from

socket. Position the ring and

glass on lamp and secure with

spinner nut.

6. Install proper bulb type

and wattage (not included).

IVL1097A

11/21

Black

(Live)

White

(Neutral)

Green

(Ground)

Electrical

Box

Electrical box

screws

L

N

Hex nut

Nipple

(L)

Black (Live)

(N)

White

(Neutral)

L

N

(L)

Black (Live)

(N)

White

(Neutral)

Jumper

Wire

Jumper Wire

Jumper

Wire

L

N

(L)

Black (Live)

(N)

White

(Neutral)

L

N

Fixture

Fixture

EASY CONNECT

INSTALLATION INSTRUCTIONS

TM

Easy Connect

mounting

bracket

TM

!

INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS

READ ALL INSTRUCTIONS

IMPORTANT SAFETY

INSTRUCTIONS

SAVE THESE INSTRUCTIONS

TOOLS AND MATERIALS REQUIRED:

Phillips

Screwdriver

Wire Cutters

Bulb

Ring

Spinner

Nut

Glass

Nipple

Cap

Nut

Star

Washer

Hex Nut
