9625-K10, 9625-K30, 9625-K50,

9625-K51, 9625-K55 & 9625-K81

Kitchen Hot Water Dispenser

Installation Instructions

IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.

Operating Specifications:

Recommended Supply Pressure: 20 to 70 psi

†

† If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (PRV).

INSTALLING TO SINK/DECK

Important:The recommended sink/deck through-hole shall be Ø1-3/8”.

Maximum sink/deck thickness should no greater than 3-3/4”

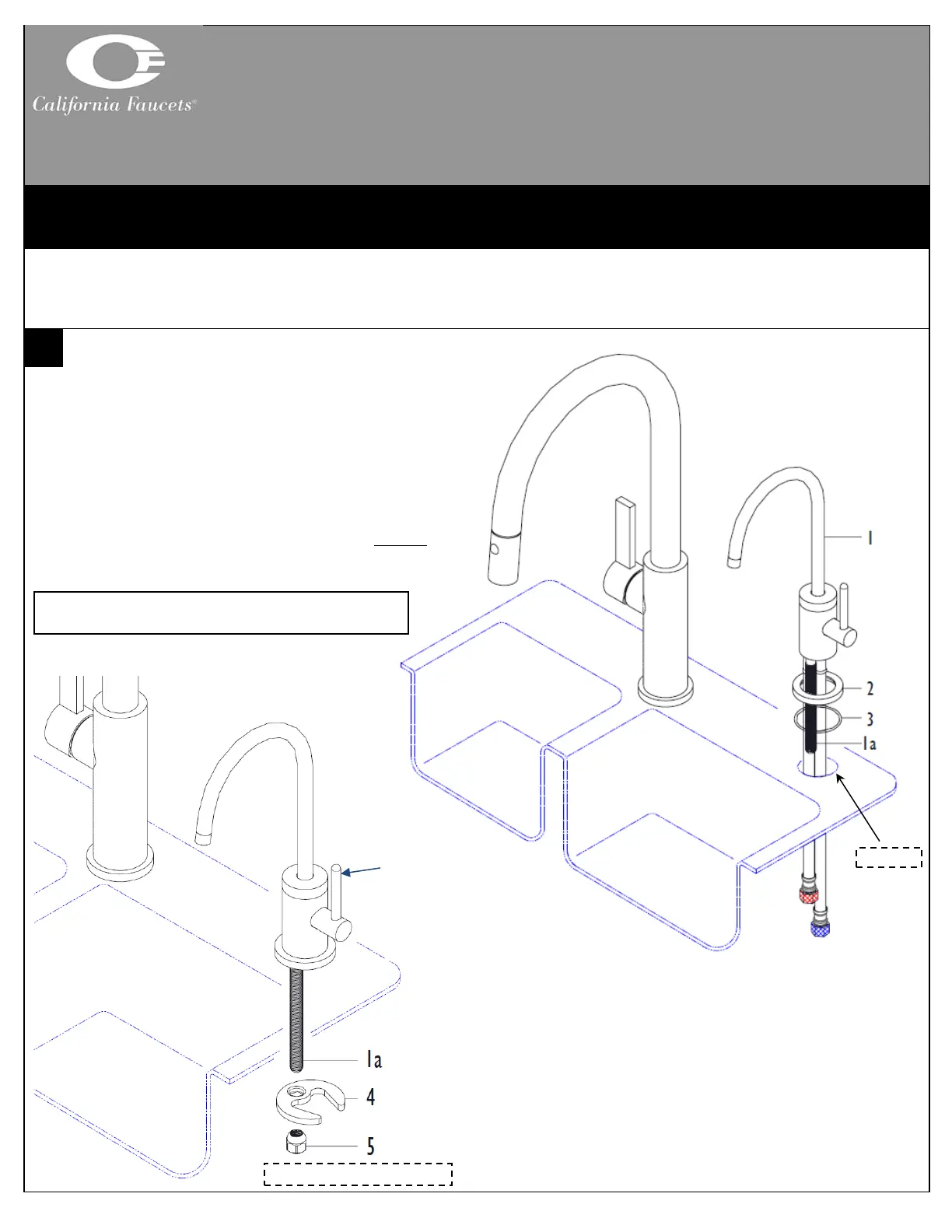

•Place BASE (2) with O-RING (3) onto BODY (1)and

slide SHANK (1a) through hole

•From underside slide MOUNT (4) and NUT (5) onto

SHANK (1a); loosely tighten NUT (5)

•From topside position BODY (1) with handle on RIGHT

side as shown and from underside securely tighten NUT

(5)

CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED

BY A LICENSED PROFESSIONAL

Ø1-3/8”

Hoses not shown for clarity

NOTE: When handle is on right side as shown below, handle rotates

forward for ON (e.g., water flow)

ON
