9623-K10, 9623-K30, 9623-K50
9623-K51, 9623-K55, & 9623-K81
Kitchen Combo Hot & Cold Water Dispenser
Installation Instructions
1
IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.
Operating Specifications:
Recommended Supply Pressure: 20 to 70 psi
†
† If water pressure exceeds 70 psi, install a Pressure-Reducing Valve (PRV).

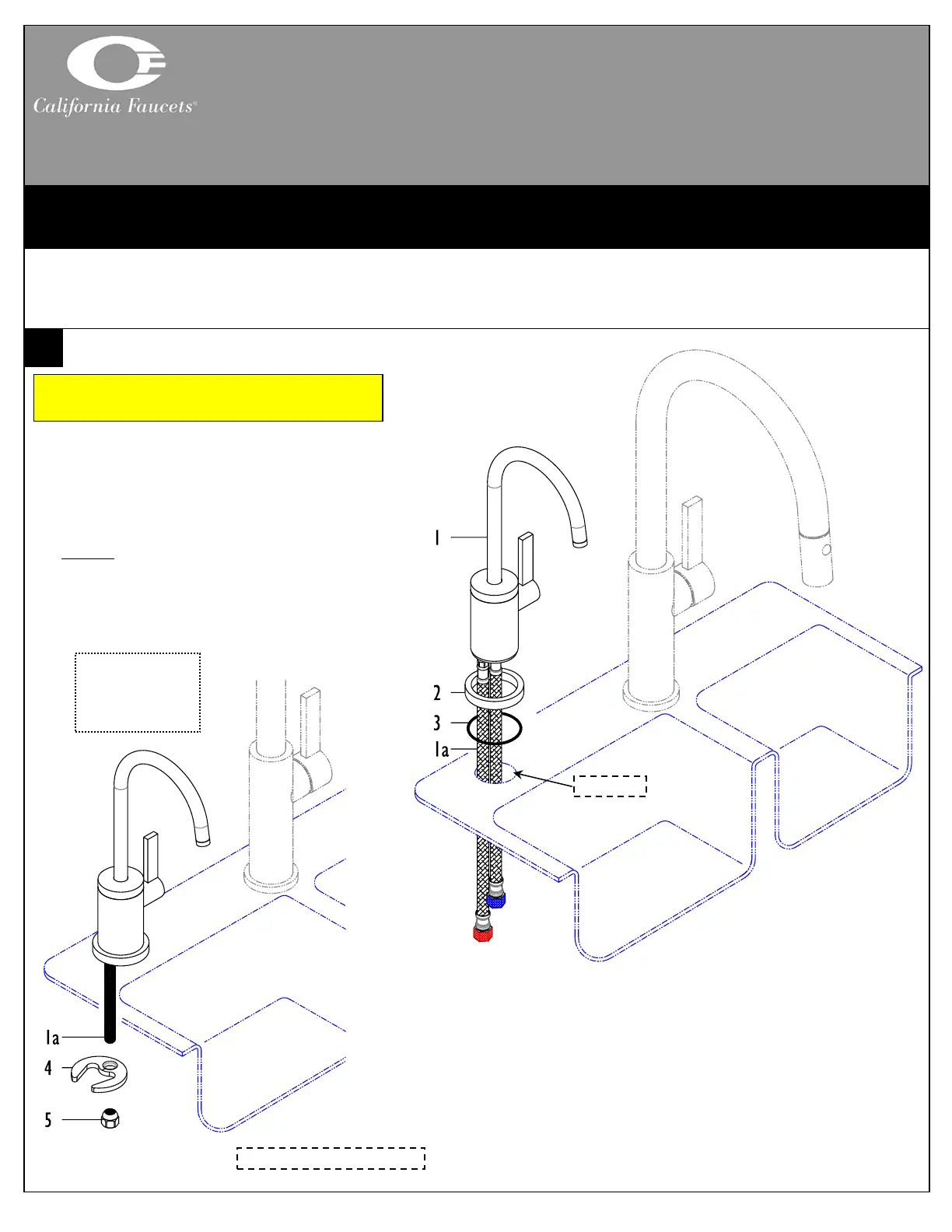

INSTALLING TO SINK/DECK
•Place BASE (2) with O-RING (3) onto BODY (1)
Slide SHANK (1a)
•From underside slide MOUNT (4) and NUT (5)
onto SHANK (1a); loosely tighten NUT (5)
•From topside position BODY (1) with handle on
RIGHTside as shown and from underside securely
tighten NUT (5)
Hoses not shown for clarity
CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED
BY A LICENSED PROFESSIONAL
Ø1-5/8”
IMPORTANT:The recommended sink/deck through-hole shall
be Ø1-5/8”. Maximum sink/deck thickness should no greater than
3-3/4”
Position handle on
right as shown for
COLD forward &
HOT backward
