9620(Q)-K10, 9620(Q)-K30, 9620(Q)-K50,

9620(Q)-K51, 9620(Q)-K55, & 9620(Q)-K81

Kitchen Cold Water Dispenser

Installation Instructions

IMPORTANT: Read all instructions prior to installation and provide copy of instructions to consumer.

Operating Specifications:

Recommended Supply Pressure: 20 to 70 psi [1.4 to 4.8 bar]

†

† If water pressure exceeds 70 psi [4.8 bar], install a Pressure-Reducing Valve (PRV).

INSTALLING TO SINK/DECK

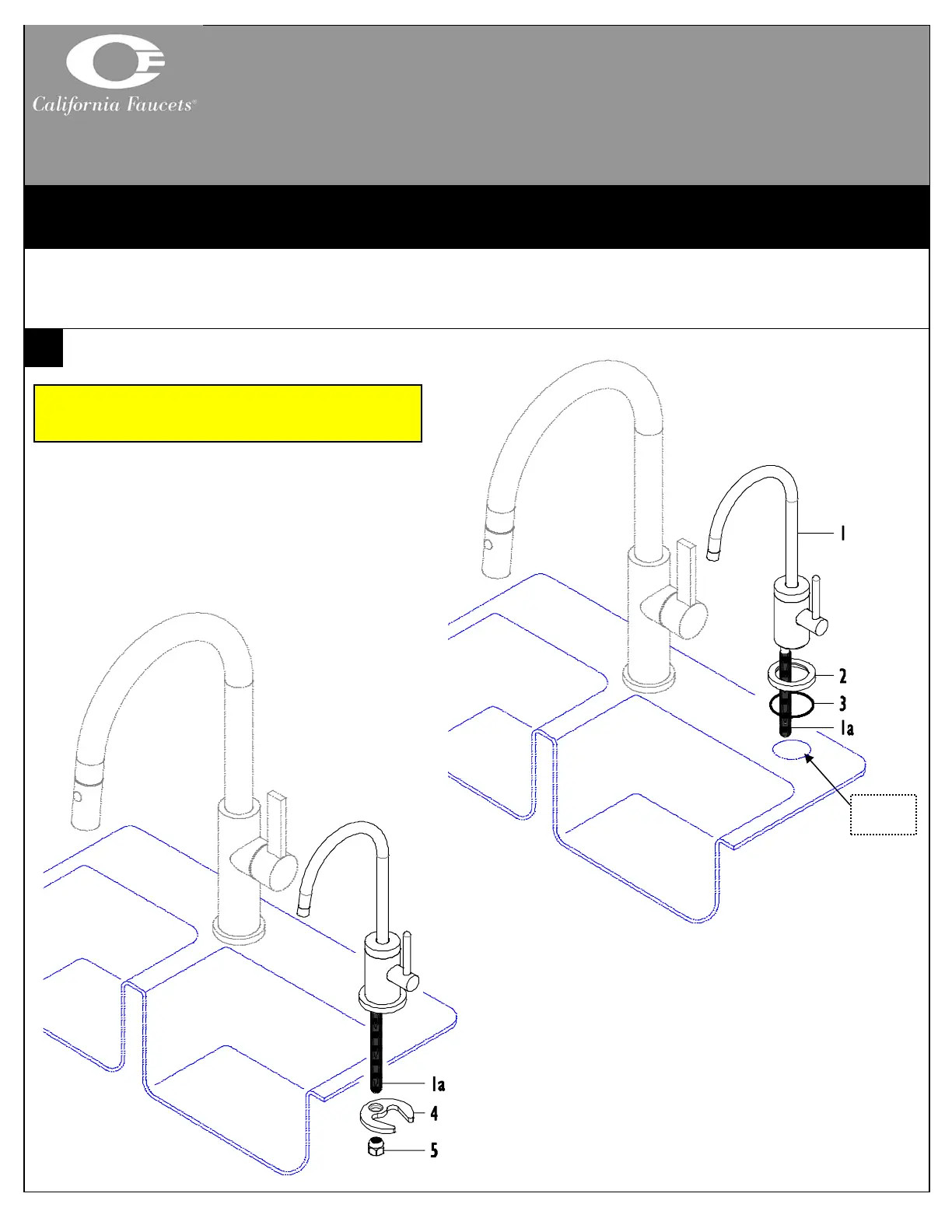

•Place BASE (2) with O-RING (3) onto BODY (1)

and slide SHANK (1a) through hole

•From underside slide MOUNT (4) and NUT (5)

onto SHANK (1a); loosely tighten NUT (5)

•From topside position BODY (1) with handle on

right side as shown and from underside securely

tighten NUT (5)

CALIFORNIA FAUCETS RECOMMENDS THAT ALL PLUMBING PRODUCTS BE INSTALLED

BY A LICENSED PROFESSIONAL

Ø1-3/8”

[35mm]

Important: The recommended sink/deck through-hole shall be Ø1-3/8”

[35mm]. Maximum sink/deck thickness should no greater than 3-3/4”

[95mm]
