MODEL RDH
Page 1

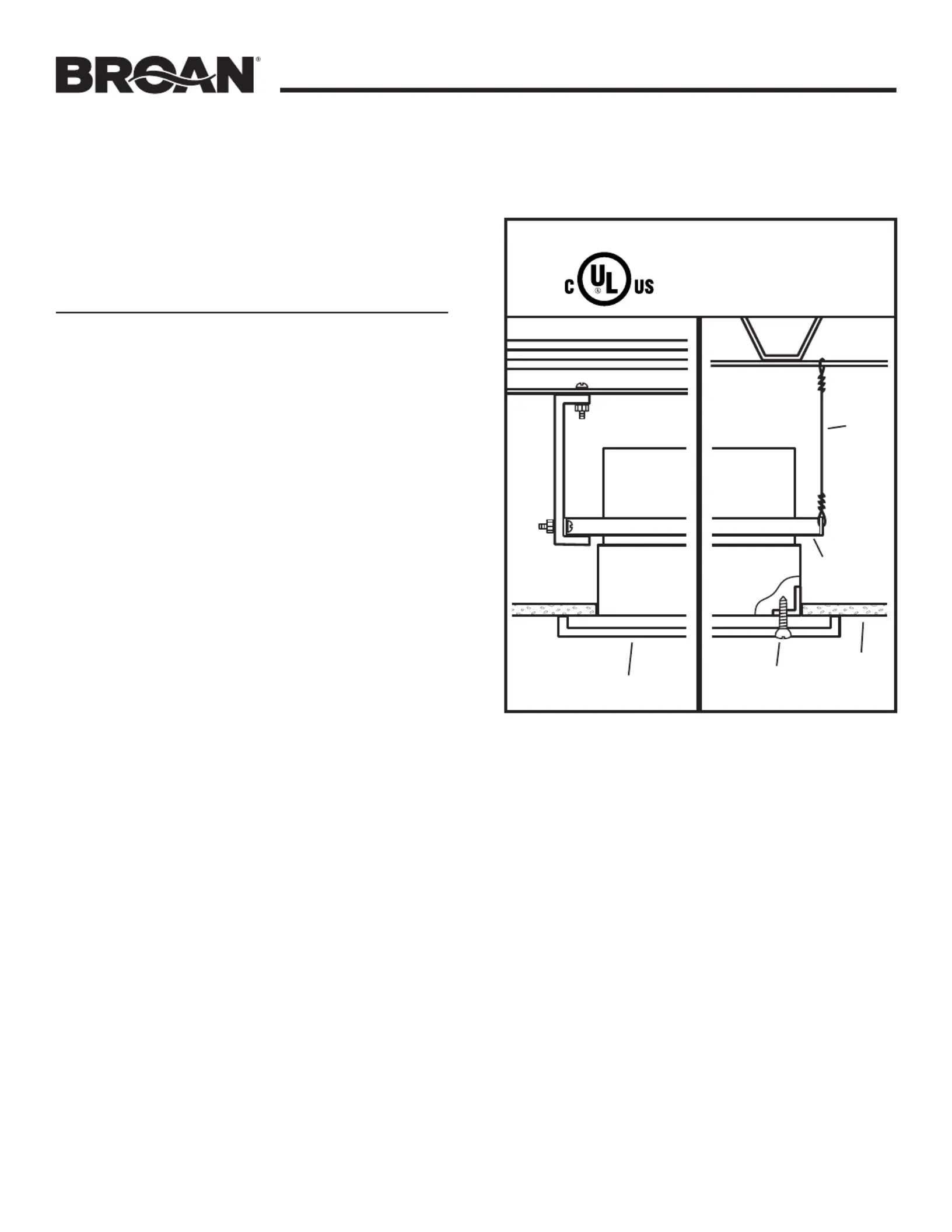

For Use in 1, 2 or 3 Hour Rated Floor-Ceiling and
Roof-Ceiling Designs.
Horizontal Mount Only.
For use with the following Broan ventilation fan models:
•80RDF, 110RDF, HD50RDF
The following components are included with this
accessory kit:
(1) Radiation Damper and Fan Housing Assembly
(1) Metal Duct Connector
(4) Support Angles
(1) Housing Mask
Identify the following ventilation fan (purchased
separately) components and discard:
•Plastic Fan Grille Assembly
•Plastic Duct Connector Assembly
ROUGH-IN KIT WITH
RADIATION DAMPER
READ AND SAVE THESE INSTRUCTIONS
METAL DUCT
CONNECTOR
HOUSING
SLIDE
CHANNEL
SUPPORT
ANGLE
RADIATION
DAMPER
ASSEMBLY

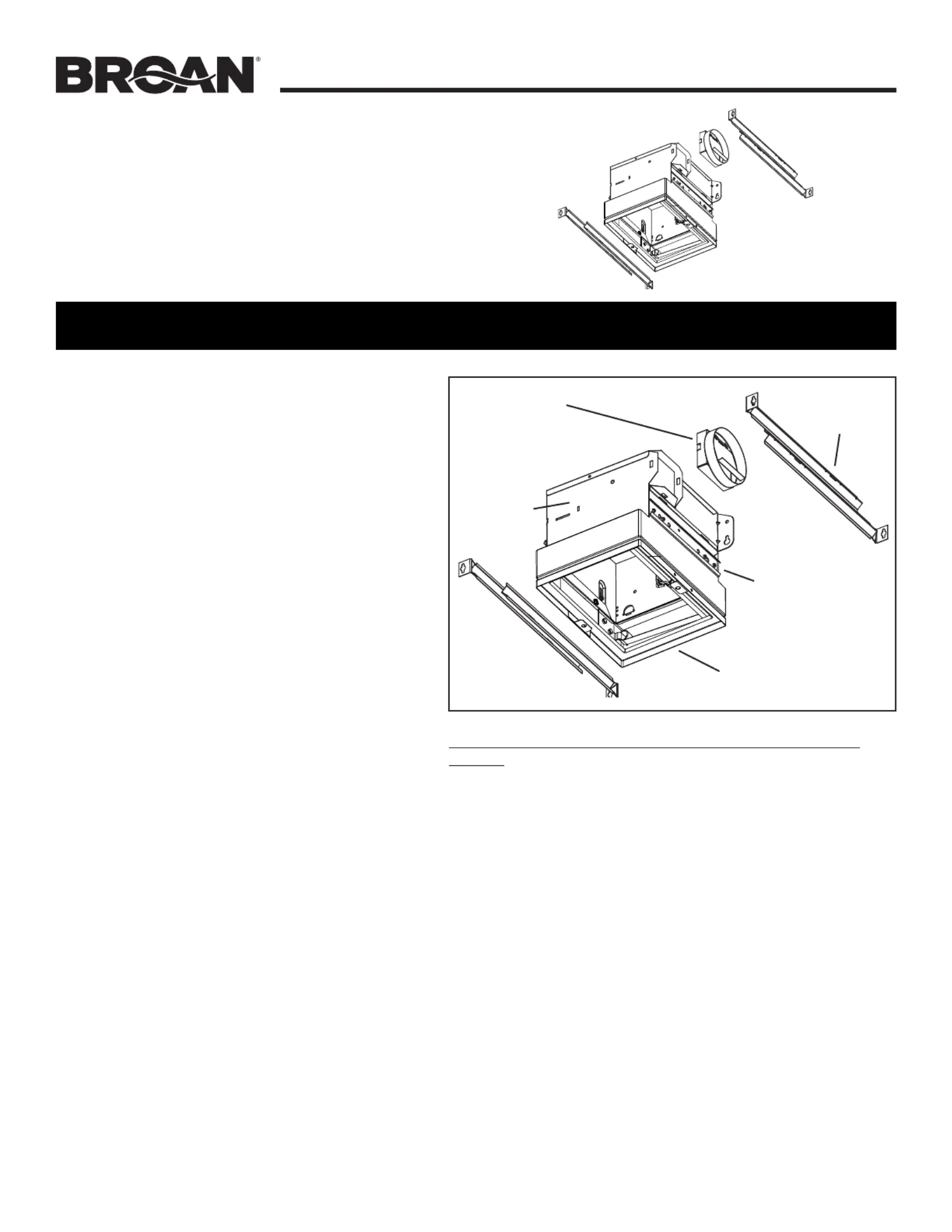

Assemble support angles and duct connector to ventilation fan
housing:
1. Snap metal duct connector onto housing. Make sure that tabs on
the duct connector lock into the slots on the housing. Damper flap
hinge should be positioned toward top of housing.
2. Slide channels can be adjusted up or down to accommodate
different ceiling thicknesses.

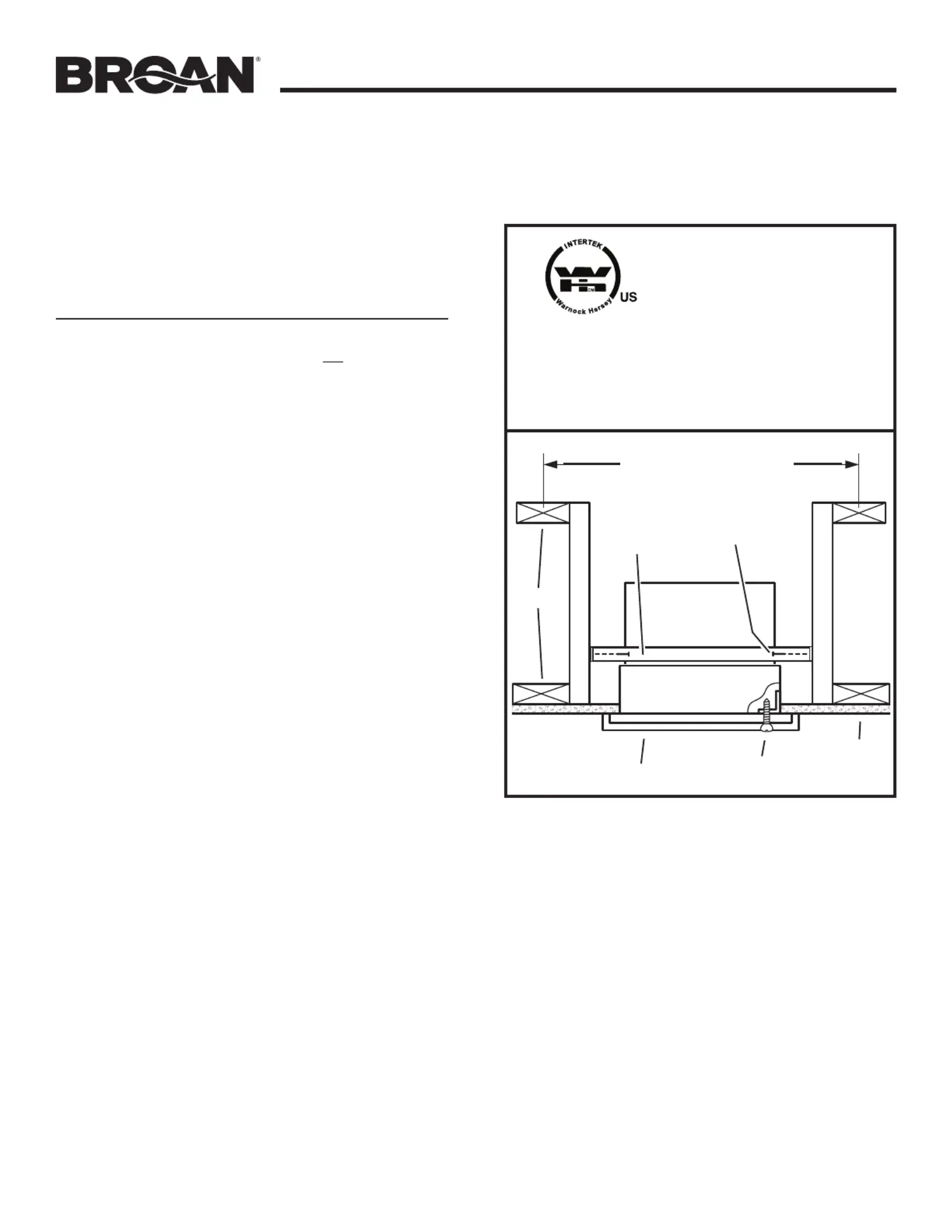

3. Insert (2) support angles into each slide channel.
