MBK106V installation manual - V1.01

Installation manual

MBK106V

Step 2:

Insert the M8 bolts through the rubber and metal washers

and into the center threaded holes (top and bottom).

The U-bracket will be placed between those rubber

washers and speaker should be placed to the desired slots.

The bolts should stay up just high enough so that the

intended slot in the bracket can be hooked in. Place the

speaker in the correct position and tighten both M8 bolts.

Attach the drop safety wire to one of the M10 flying points.

The other end of the wire is attached to a separate mounting

point on the wall.

Place the VEXO106 in your desired pitch angle and tighten

the bolts.

Step 1:

Mount the U-bracket at a designated location on the wall

or ceiling.

The screws are inserted into the holes provided on the

bracket. Use the correct fasteners for the surface on

which the bracket is to be mounted.

Caution:

Choose fasteners that are consistent with all local build

codes and requirements to support the weight of the

loudspeaker.

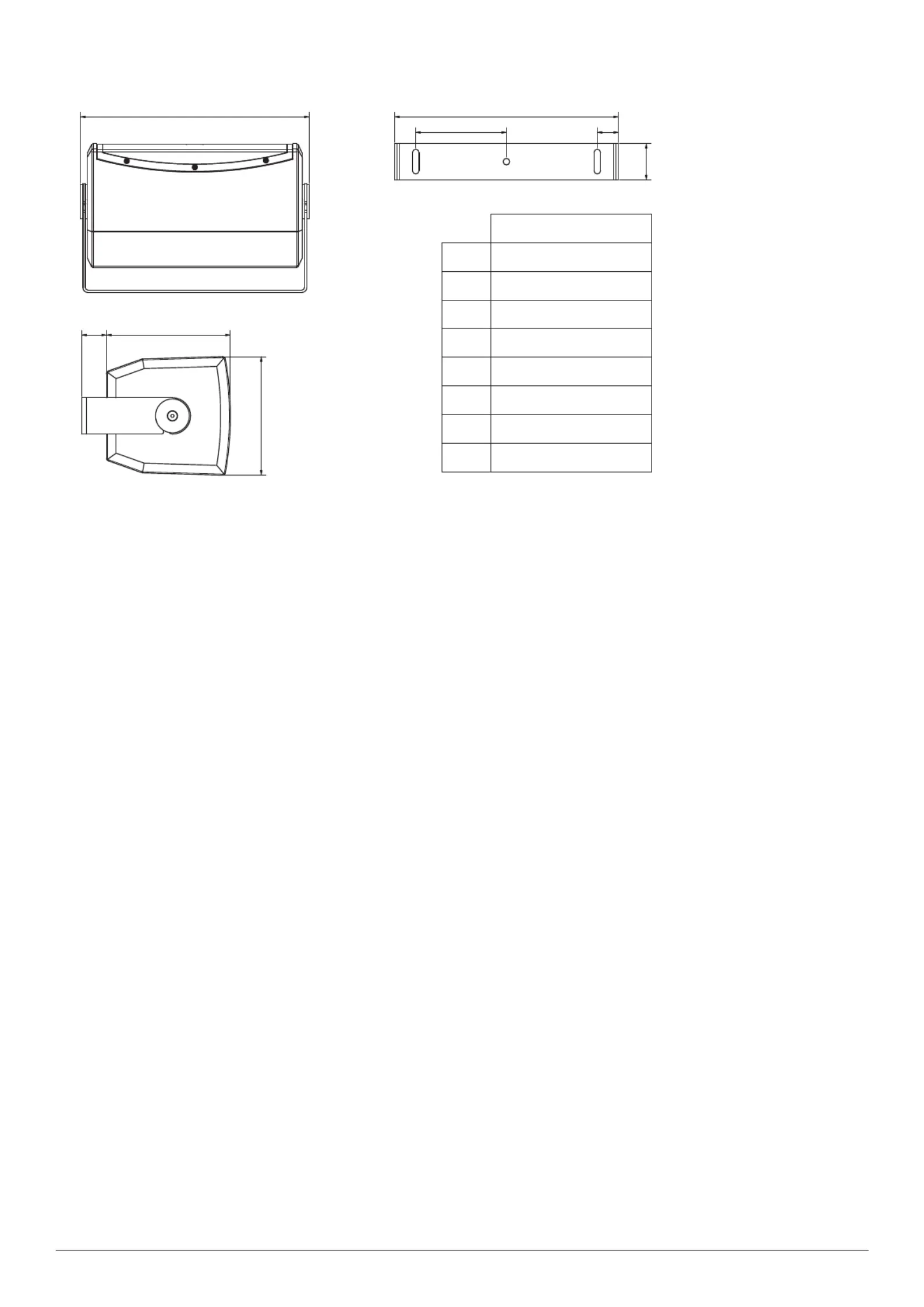

The MBK106V mounting bracket is specially designed for mounting the VEXO106 speaker. This optional clever

U-brackets allow the easy installation of the VEXO106 both horizontally and vertically. Thanks to the dual slotted

design, the VEXO106 can be mounted two different positions. The rear slot provides an installation closer to the

mounted surface that gives clear and neat impression.

Included hardware:

Installation:

Drop safety wire

x2

M8 screws with

washers

x2

Rubber washer

U-bracket

x2

Metal washer
