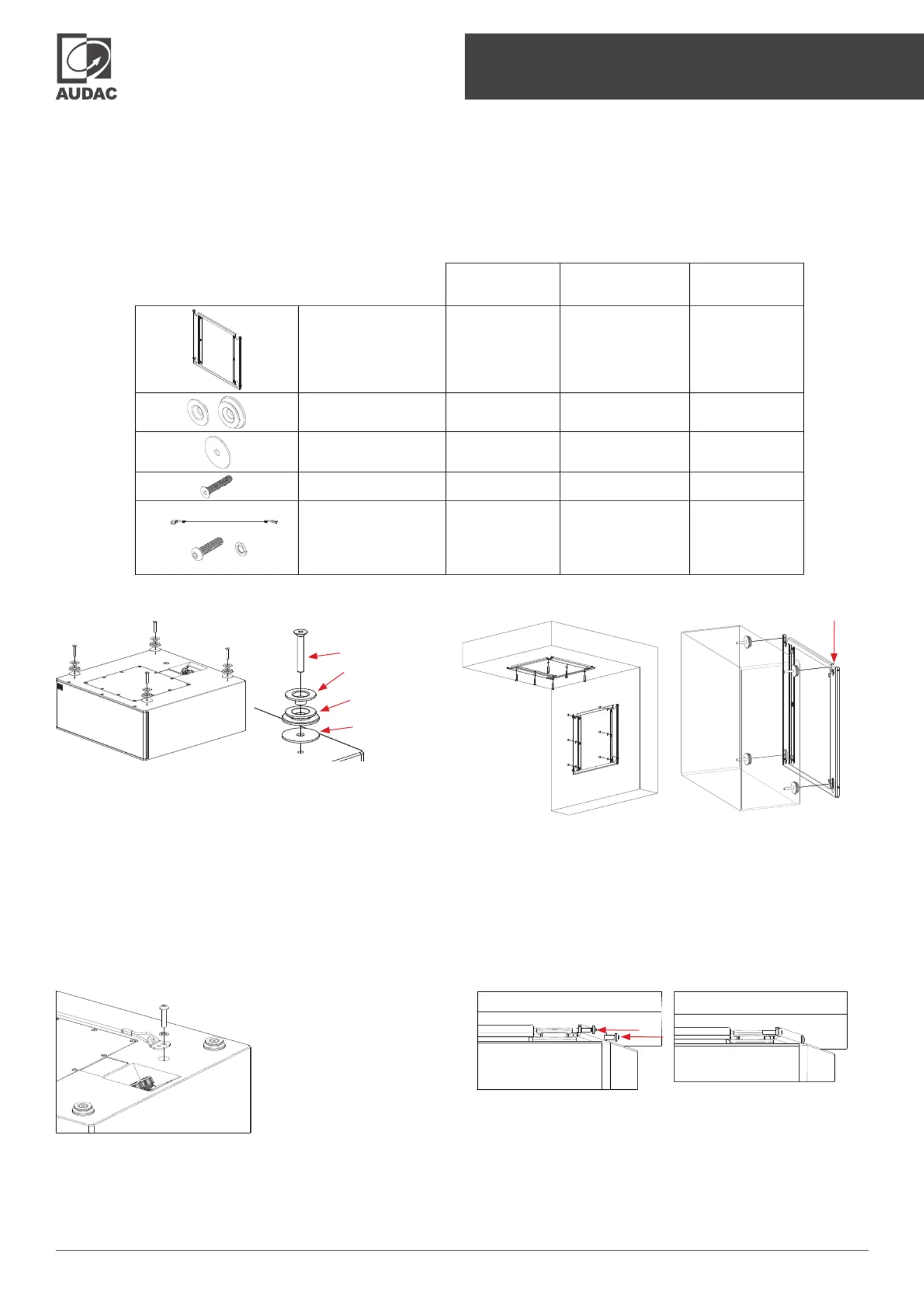

MBK62xA installation manual - V1 1
Installation manual
MBK62xA
The MBK62xA is a dedicated steel mounting bracket designed specifically for the AUDAC ARCHI series architectural
subwoofers, enabling secure and discreet installation on walls or ceilings. With its durable black finish and all necessary
mounting hardware included, the MBK62xA offers both reliability and ease of use. A smart sliding slot mechanism allows
the subwoofer to glide smoothly into place for easy and secure installation, whether mounted horizontally or vertically.
Rubber washers help minimize vibrations and protect mounting surfaces, while an integrated drop safety wire adds an
extra layer of security against accidental falls.
Included hardware:
MBK621A
(ARCHI10)
MBK622A
(ARCH10X)
MBK623A
(ARCHI210)
Mounting bracket*
*The image is for illustrative
purposes only, since it will
differ from the various
models.
1 piece 1 piece 1 piece
Silentblock washer and
rubber
4 pieces 4 pieces 4 pieces
Metal washer 4 pieces 4 pieces 4 pieces
M8x45 bolt
4 pieces 4 pieces 4 pieces
Drop safety wire with
buttonhead screw and
spring washer
1 piece
(M8 buttonhead
screw)
1 piece
(M10 buttonhead screw)
1 piece
(M8 buttonhead
screw)
Installation:
Step 1:
Remove the rubber feet from bottom of the cabinet or countersunk bolts from
rear of the cabinet, depending on whether you plan to mount it from the bottom
or the rear.
Insert the M8 bolts through Silentblock washer, then through the Silentblock
rubber and the metal washer.
Screw them into the four threaded holes at the corners.
The silentblock rubber is used to reduce vibrations and protect the bracket’s
mounting surfaces.
M8x45 Bolt
Silentblock
washer
Silentblock
rubber
Metal
washer
Step 2:
Install the drop safety wire to the
designated point using an M8 or
M10 buttonhead screw and spring
washer based on the model.
Secure the other end of the wire to
a different mounting point on the
wall or another structure that is
separate from the main suspension
surface.
Step 3:
Install the mounting bracket vertically or horizontally to the designated point on the
wall.
Insert the Silentblock into the slots in the mounting bracket and slide to secure.
Step 4:
Secure the speaker to the bracket by tightening the 4 lock screws against the
Silentblocks.
MBK62xA installation manual - V1 2

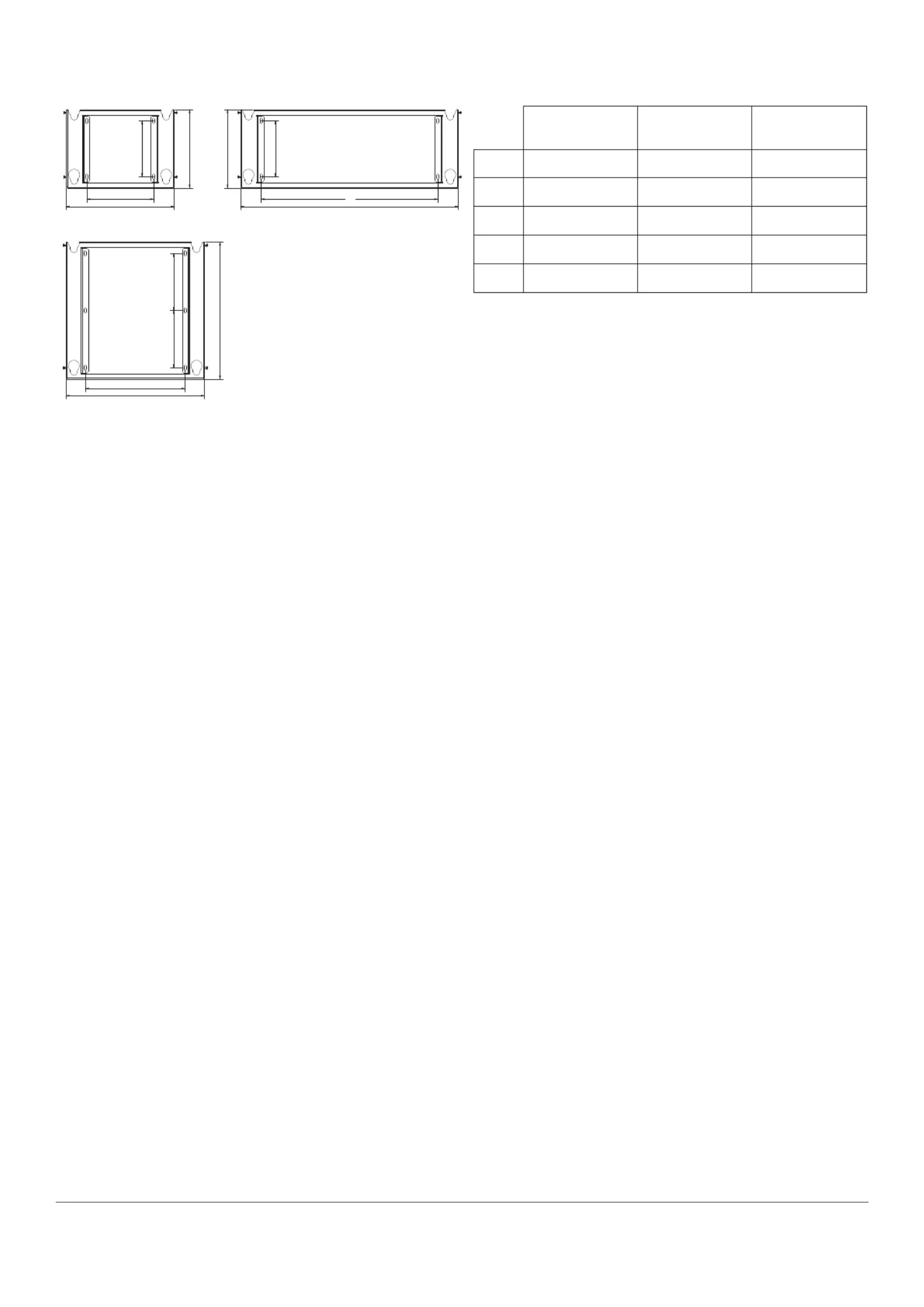

Dimensions:
ALWAYS FOLLOW THE LOCAL REGULATIONS AND
REQUIREMENTS REGARDING INSTALL ATION,
SUSPENSION AND CONNECTION OF T HIS
LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED
IN THIS DOCUMENT.
IT’S THE INSTALLERS RESPONSIBILITY TO ENSURE
INSTALLATION OF THE LOUDSPEAKERS AND
MOUNTING SYSTEMS IS PERFORMED IN ACCORDANCE
WITH ALL APPLICABLE CODES
UNSAFE MOUNTING OR OVERHEAD SUSPENSION
ON ANY HEAVY LOAD CAN RESULT IN SERIOUS
INJURY OR DEATH, AND PROPERTY DAMAGE. IT’S
THE INSTALLERS RESPONSIBILITY TO EVALUATE THE
RELIABILITY OF ANY MOUNTING METHOD USED FOR
THEIR APPLICATIONS
THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE
DONE BY QUALIFIED PERSONNEL ONLY.
PRECAUTIONS
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
NEVER THROW THEM AWAY
ALWAYS HANDLE THIS UNIT WITH CARE
CLEAN ONLY WITH DRY CLOTH
HEED ALL WARNINGS AND FOLLOW ALL
INSTRUCTIONS
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE,
ANY DRIPPING OR SPLASHING LIQUID.
DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A
HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
DO NOT USE HYDROCARBON BASED SOLVENTS,
LUBRICANTS OR CLEANING AGENTS OF ANY TYPE
ON OR AROUND THE DEVICE AND MOUNTING
HARDWARE DURING THE INSTALL ATION. THE
USE OF THESE PRODUCTS ON OR AROUND THE
MOUNTING ANCHORS AND SCREWS CAN LEAD TO
DEGRADATION OF THE PLASTIC MATERIAL, POSSIBLY
RESULTING IN CRACKING AND PREMATURE FAILURE
OF THE PRODUCT.
THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO
NOT USE IT OUTDOORS
ONLY INSTALL THE SPEAKER IN LOCATIONS THAT
CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE
SPEAKER. IGNORING THIS CAN BRING THE SPEAKER
DOWN.
DO NOT USE ANY OTHER METHOD THAN SPECIFIED
TO MOUNT THE SPEAKER. IF EXTREME FORCE IS
APPLIED TO THE SPEAKER, IT COULD FALL DOWN
ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS
MOUNTED HIGH UP. ONLY USE INDUSTRYACCEPTED
RIGGING TOOLS AND METHODS
CAREFULLY CHECK THE UNIT’S CONDITION AFTER
UNPACKING.
IF THERE IS ANY DAMAGE TO THE CARTON BOX
OR THE UNIT ITSELF, INFORM YOUR VENDOR
IMMEDIATELY.
CAUTION - SERVICING
This product contains no user serviceable parts. Refer all
servicing to qualified service personnel. Do not perform any
servicing (unless you are qualified to do so).
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements
and further relevant specifications described in following
directives: 2011/65/EU (RoHS2) and 1907/2006 (REACH)
DO NOT MAKE UNAUTHORIZED ALTERATIONS TO THE
PRODUCT.
•
The MBK621A mounting bracket is for the use with
ARCHI10 only.
•
The MBK622A mounting bracket is for the use with
ARCHI10X only.
•
The MBK623A mounting bracket is for the use with
ARCHI210 only.
MBK621A
(ARCHI10)
MBK622A
(ARCH10X)
MBK623A
(ARCHI210)
A
240 mm 634 mm 358 mm
B
387 mm 781 mm 497 mm
C
282 mm 282 mm 492 mm
D
200 mm 200 mm 205 mm
E
- - 205 mm
387
2
634
781
497
358
B
A
C
D
B
A
C
D
B
A
C
D
E
MBK621A MBK622A
MBK623A
