SAVE FOR FUTURE USE

7301962-100 Rev. E

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2014

Closet Carrier Support

Putty Knife

Sealant

Tape Measure

Regular Screwdriver

Adjustable Wrench

Carpenters Level

Flush Valve

RECOMMENDED TOOLS AND MATERIALS

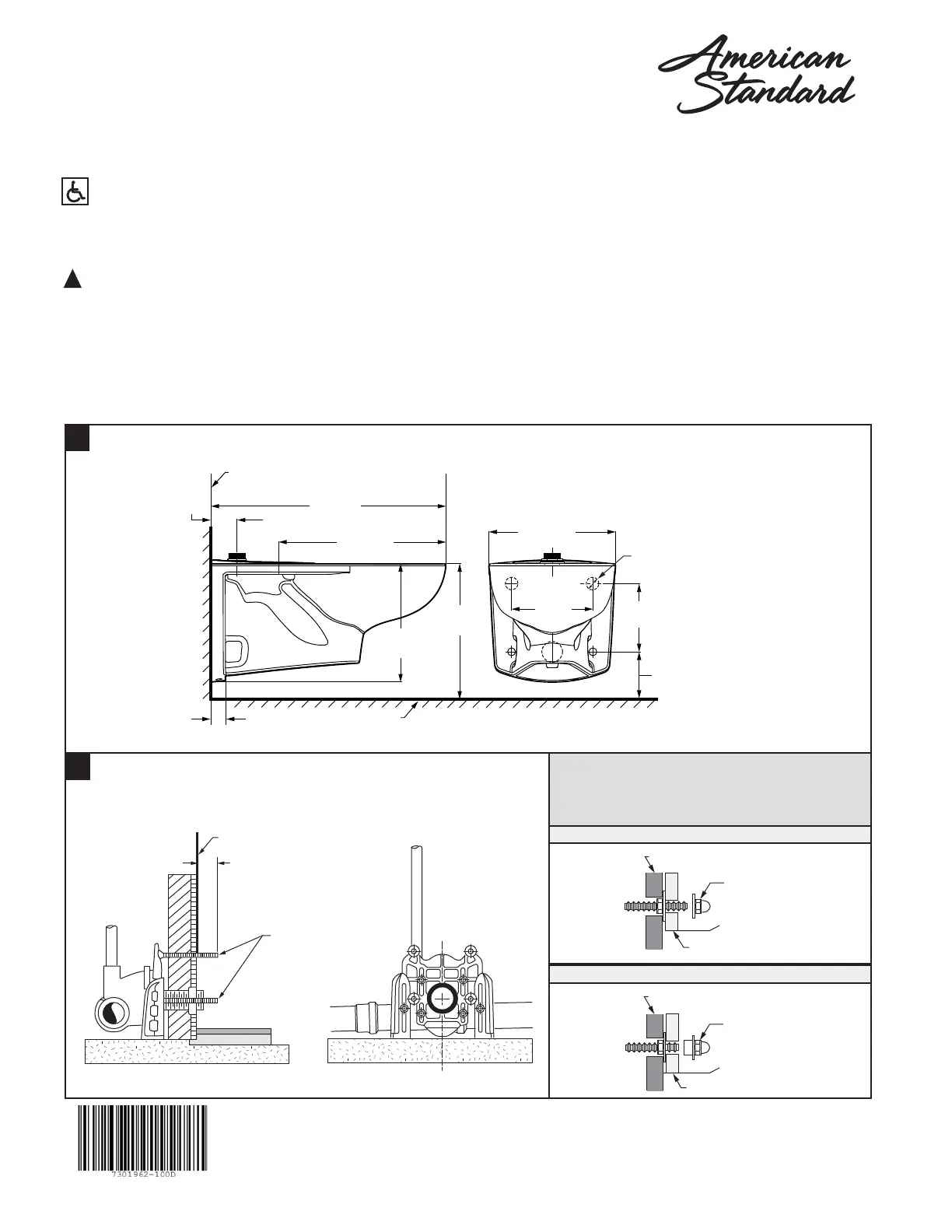

Models 3351.101, 3352.101, 3353.101, 3354.101, 2257.101, 2257.101.NAF, 2633.101, 2634.101

AFWALL

®

MILLENNIUM

™

FLUSHOMETER

WALL-MOUNTED TOILETS

INSTALLATION INSTRUCTIONS

CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING

TO AVOID BREAKAGE AND POSSIBLE INJURY!

NOTE: For proper operation product requires a minimum of 30 psi working line pressure

Meets the American Disabilities Act Guidelines and ANSI A117.1

Requirements for the Physically Challenged

Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product

is installed properly, please read these instructions carefully before you begin. (Certain installations may require

professional help.) Also be sure your installation conforms to local codes.

!

1

2

Pictures may not exactly define contour of china

FIXTURE MOUNTING

Fixture studs should project 58mm (2-1/4")

from face of finished wall.

FRONT VIEW

SIDE VIEW

FINISHED WALL

58mm

(2-1/4")

(4) STUDS

FINISHED WALL

FINISHED

FLOOR

(4) Ø 22mm

(7/8") HOLES

73mm

(2-7/8")

660mm

(26")

470mm

(18-1/2")

333mm

(13-1/8")

356mm

(14")

191mm

(7-1/2")

133mm

(5-1/4")

229mm

(9")

381mm

(15")

41mm

(1-5/8")

NOTE: If carrier bolt does not extend or is

flush with china, use retrofit caps

7381285-200.0070A

(sold separately).

STANDARD

BOLT CAP

CHINA / TOILET

WALL

RETROFIT

BOLT CAP

WALL

CHINA / TOILET

STANDARD BOLT CAP

RETROFIT BOLT CAP
