American Standard Town Square S T455501.002 Handleiding
Pagina's 3 Douchesysteem
Bekijk de handleiding van American Standard Town Square S T455501.002 gratis online of download de PDF. 7 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
- 1 -
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please
read these instructions carefully before you begin.
RECOMMENDED TOOLS
M965904 (4/18)

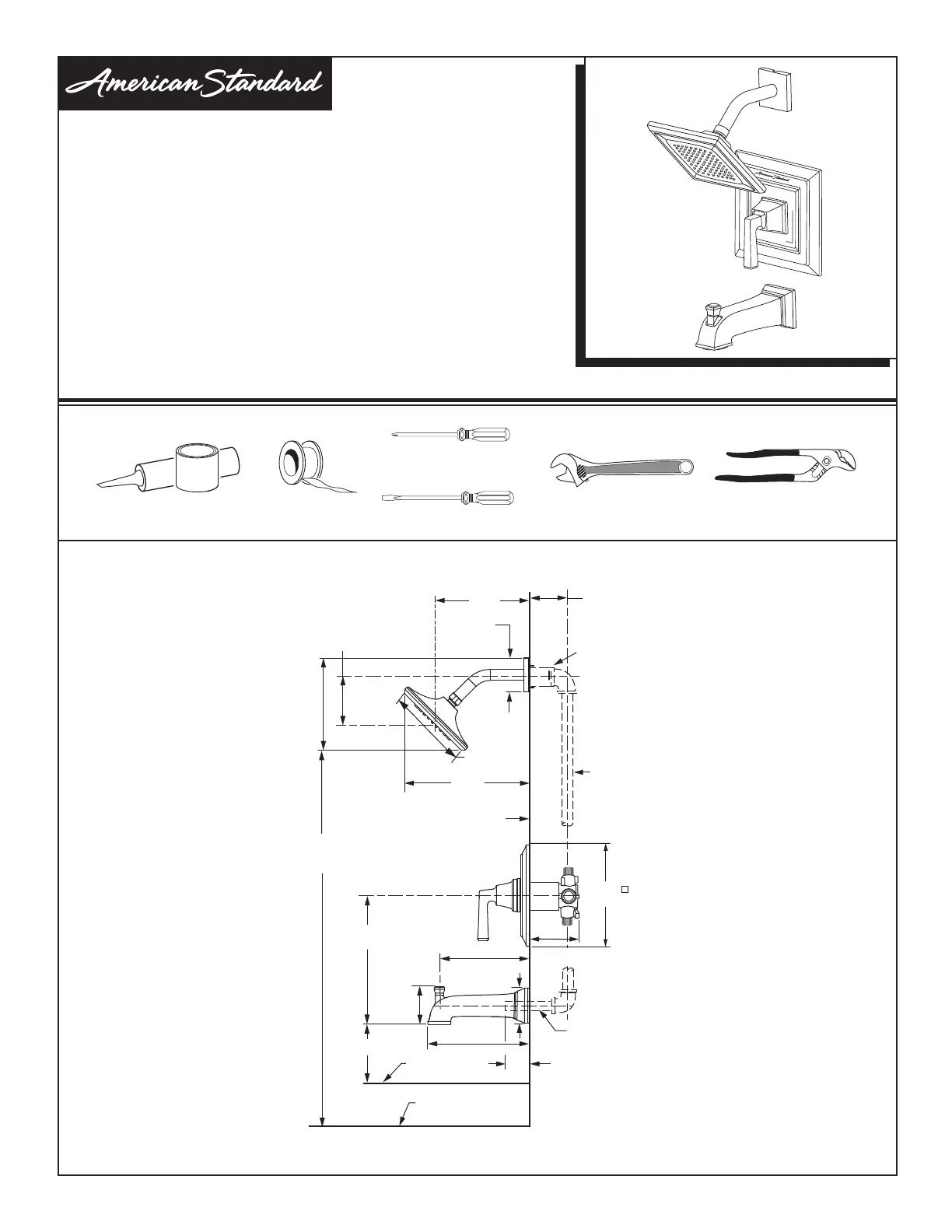

ROUGHING-IN DIMENSIONS
TOWN SQUARE
®
S
PRESSURE BALANCE
BATH AND SHOWER
TRIM KIT
INSTALLATION
INSTRUCTIONS
T455.50X
Plumbers’ Putty
or Caulking
Adjustable WrenchChannel Locks
Phillips Screwdriver
Certied to comply with ANSI A112.18.1M
• To assure proper positioning in relation to wall.
Note roughing-in dimensions.
Teon TapeFlat Blade Screwdriver
OFF
C
H
1-5/8" TO 3-1/4"
(41 mm TO 83 mm)
BOTTOM OF
TUB
1/2" NPT
FINISHED WALL
1/2" COPPER
TOP OF
TUB RIM
1-3/4" MIN.
(44 mm)
1/2" NPT
7-1/8"
(181 mm)
9-1/8"
(232 mm)
3-1/2"
(90 mm)
6-3/4"
(72 mm)
2-1/2"
(64 mm)
2-5/8"
(66 mm)
7-3/8"
(187 mm)
4" (102 mm)
74" FOR HEAD
CLEARANCE
(188 cm)
18" OPTIONAL
(457 mm)
2-7/8"
(72 mm)
6-5/16"
(160 mm)
7-3/8"
(188 mm)
2-3/4" MAX. (69 mm)
1-3/4" MIN. (45 mm)
Product specificaties
| Merk: | American Standard |
| Categorie: | Douchesysteem |
| Model: | Town Square S T455501.002 |
