American Standard Copeland T005508.002 Handleiding
Pagina's 4 Douchesysteem
Bekijk de handleiding van American Standard Copeland T005508.002 gratis online of download de PDF. 10 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
Recommended Tools
Flat Blade Screwdriver
Adjustable Wrench
Channel Locks
Plumbers' Putty or Caulking
Phillips Screwdriver
Teflon Tape
FINISHED WALL
4"
TOP OF TUB RIM
BOTTOM OF TUB
74" FOR HEAD
CLEARANCE
4-1/4" REF.
1-5/8" TO 3"
18" OPTIONAL
4-7/8" REF.
1/2" NPT
1/2" COPPER
FOR SLIP-ON
SPOUT
7-1/2"
1-1/2"
6" REF.
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 78'
"SEE ILLUSTRATION "
Certified to comply with ANSI A112.18.1

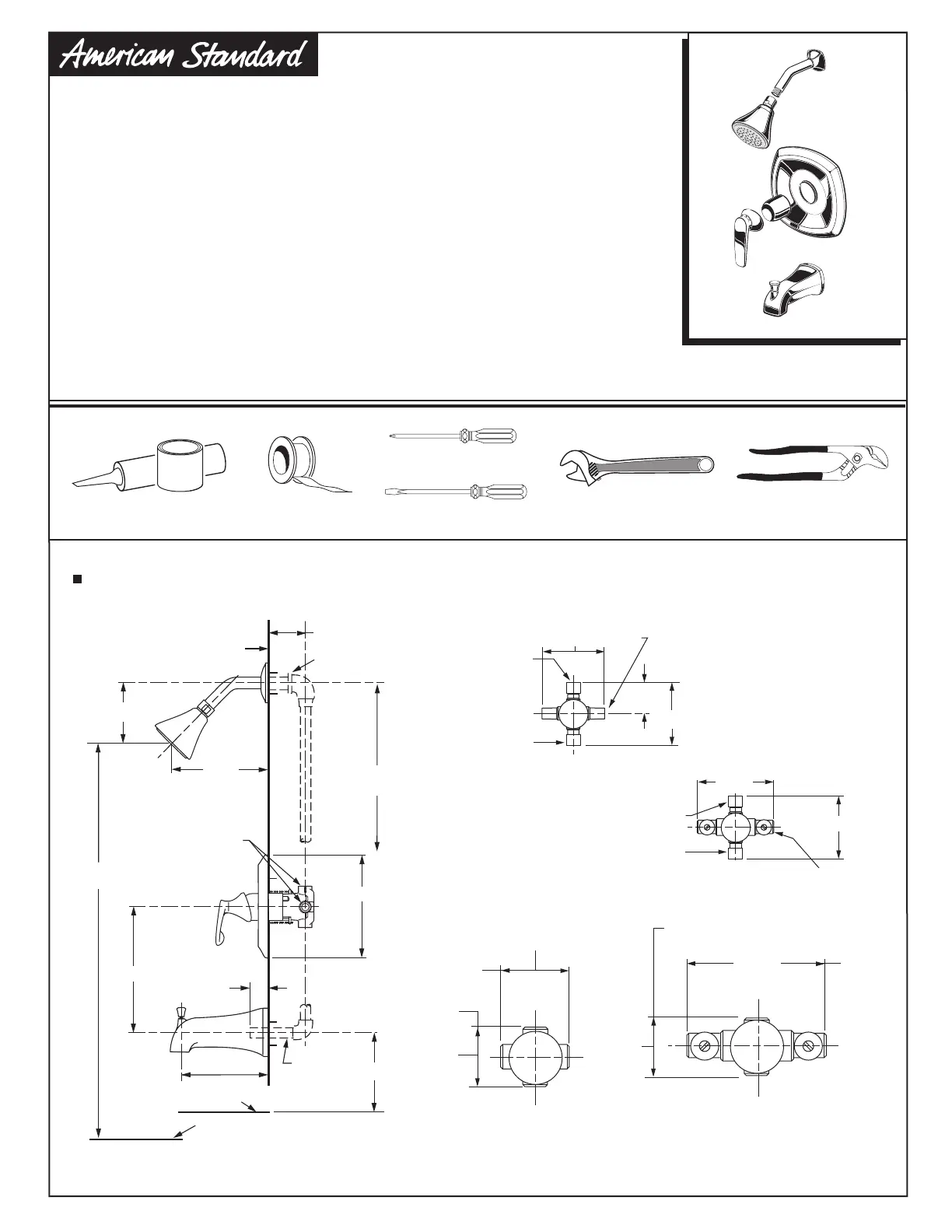

ROUGHING-IN DIMENSIONS (For reference only)
To assure proper positioning in relation to wall, note roughing-in dimensions.
PRESSURE BALANCING BATH
AND SHOWER TRIM KITS
COPELAND
Installation
Instructions
T005.5XX
THREADED INLETS (STOPS)
INLETS
1/2" NPT
5-7/8"
INLETS 1/2" NPT
OUTLETS
1/2" NPT
OUTLETS
1/2" NPT
3-3/8"
3-3/8"
3-3/8"
THREADED INLETS
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
4-1/16"
5-7/8"
INLETS
4-1/16"
4-1/16"
INLETS
1/2" NOM.
COPPER
SWEAT
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
2"
SWEAT
INLETS
SWEAT
INLETS (STOPS)
INLETS
1/2" NOM.
COPPER
SWEAT
M968636 Rev 1.2
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
