Recommended Tools
Flat Blade Screwdriver
Adjustable Wrench
Channel Locks
Plumbers' Putty or Caulking
Phillips Screwdriver
Teflon Tape
Certied to comply with ANSI A112.18.1

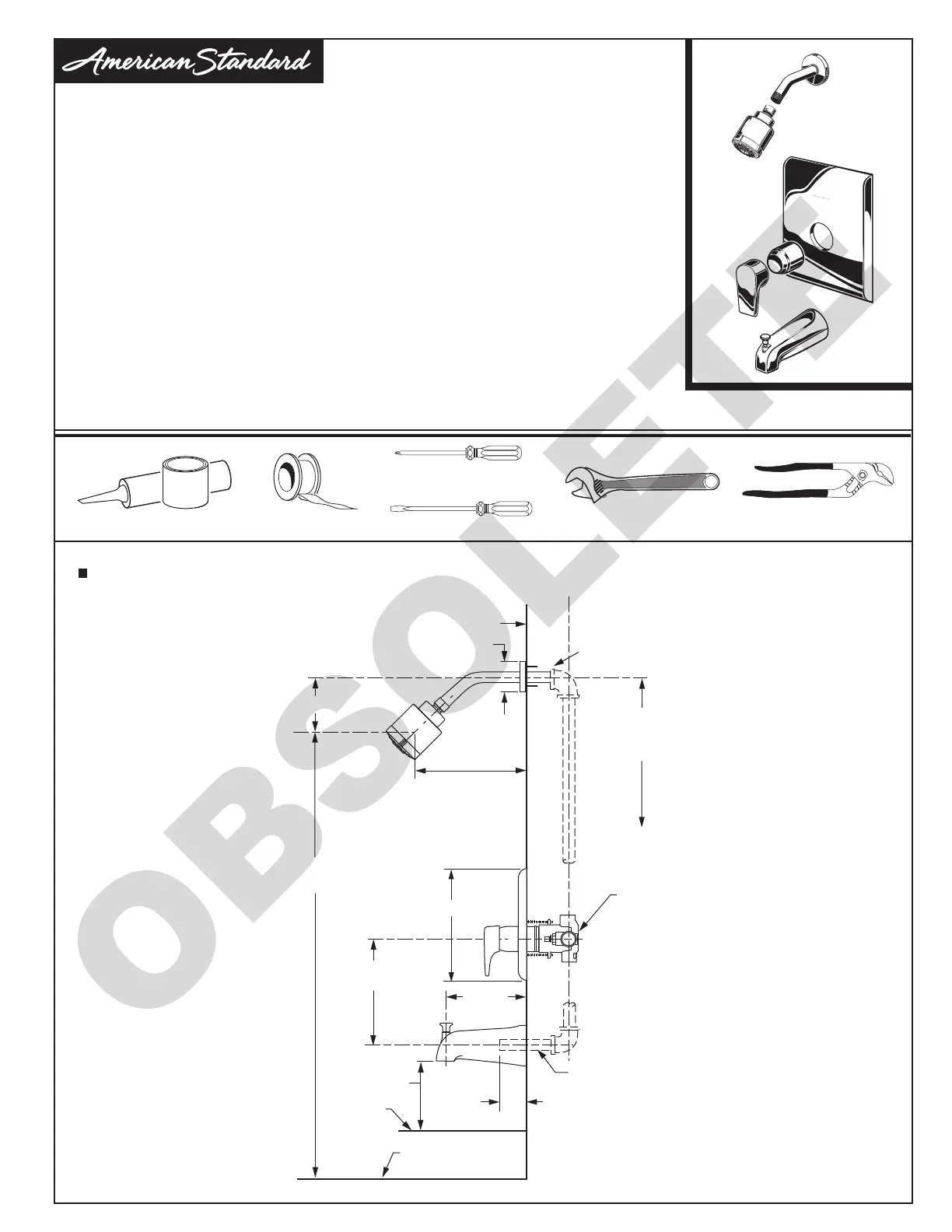

ROUGHING-IN DIMENSIONS (For reference only)
To assure proper positioning in relation to wall, note roughing-in dimensions.
PRESSURE BALANCING
BATH AND SHOWER
TRIM KITS
M965797 Rev. 1.0 (1/17)
T590.52X
Installation
Instructions
BOTTOM OF
TUB
74" FOR
HEAD CLEARANCE
1/2" NPT
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
80'' AND 86'
4"
4-3/4"
1/2" COPPER
18"
OPTIONAL
"SEE ILLUSTRATION"
TOP OF
TUB RIM
TUB
SHR
8-1/4"
STUDIO RETROFIT
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
1" MIN.
FINISHED WALL
2-3/8"
4-7/8" REF.
8-1/2" REF.
OBSOLETE
