American Standard Quentin T440508.002 Handleiding
Pagina's 4 Douchesysteem
Bekijk de handleiding van American Standard Quentin T440508.002 gratis online of download de PDF. 6 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
BOTTOM OF TUB
4-13/16" REF.
(121mm) REF.
1/2" COPPER
9-3/16"
(233mm)
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' (1651mm)
AND 80'' (1880mm)
TOP OF TUB RIM
Certified to comply with ANSI A112.18.1
Recommended Tools
Flat Blade Screwdriver
Plumbers' Putty or CaulkingPhillips Screwdriver

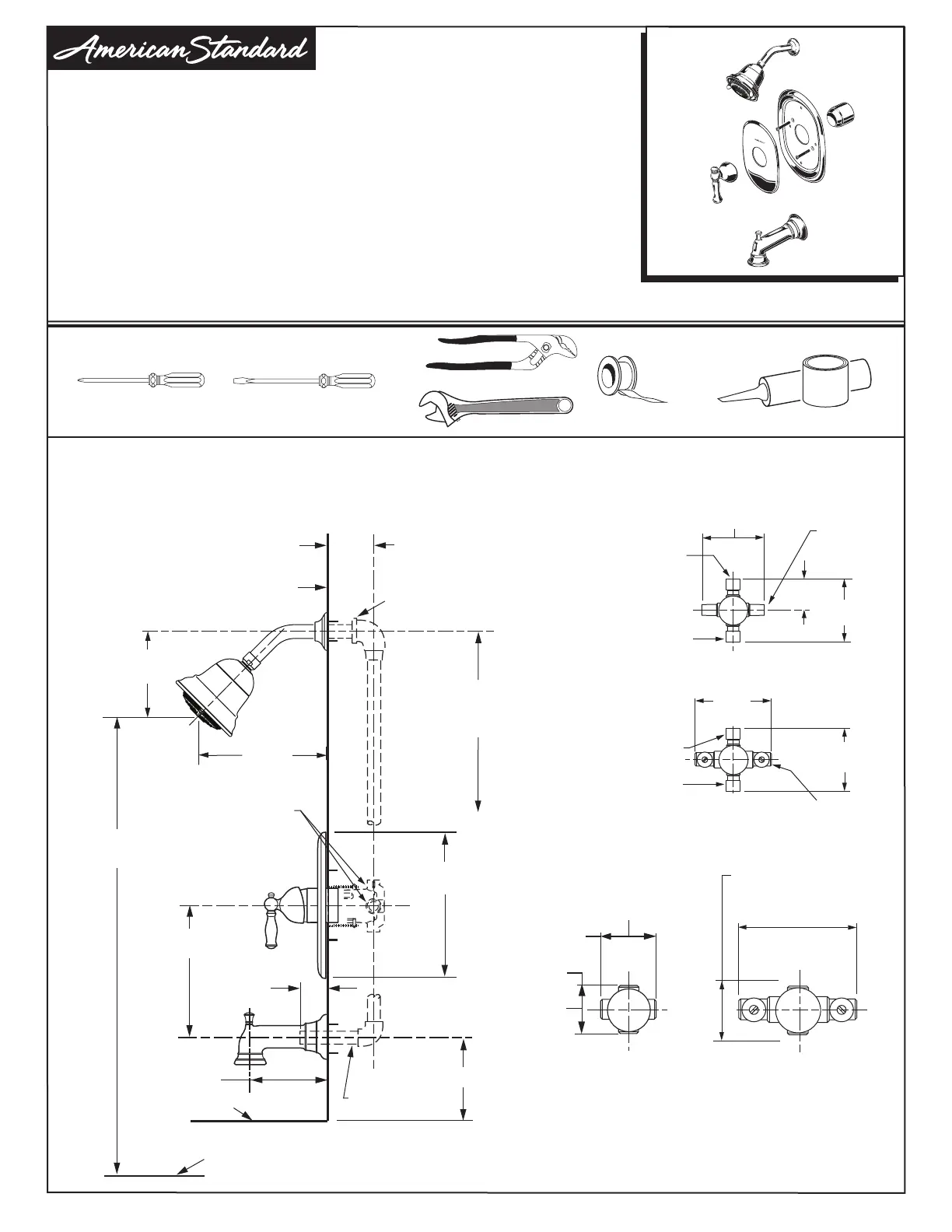

ROUGHING-IN DIMENSIONS
Installation for Bath/Shower, Shower only, or
Valve only Trim.
■Dimensions are for reference.
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
INSTALLATION
INSTRUCTIONS
T440.507
T440.508
QUENTIN™
BATH/SHOWER TRIM KITS
M965429
C
H
1-5/8" TO 3"
(41mm TO 76mm)
FINISHED WALL
4" (102 mm)
74" FOR HEAD
CLEARANCE
(188 cm)
18" OPTIONAL
(457mm)
1/2" NPT
(12,7 mm) NPT
216mm
(8-1/2")
REF.
125mm
(4-7/8")
REF.
1-1/2" REF.
(38mm) REF.
INLETS 1/2" NPT
OUTLETS
1/2" NPT
3-3/8"
(98mm)
3-3/8"
(98mm)
THREADED INLETS (STOPS)
INLETS
1/2" NPT
OUTLETS 1/2" NPT
3-3/8" (98mm)
THREADED INLETS
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
4-1/16"
(103mm)
4-1/16"
(103mm)
5-7/8"
(149mm)
5-7/8"
(149mm)
INLETS
4-1/16"
(103mm)
INLETS
1/2" NOM.
COPPER
SWEAT
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
2"
(51mm)
SWEAT
INLETS
SWEAT
INLETS (STOPS)
INLETS
1/2" NOM.
COPPER
SWEAT
"SEE ILLUSTRATION "
Adjustable Wrench
Channel Locks
Teflon
Tape
