M965227

Certified to comply with ANSI A112.18.1

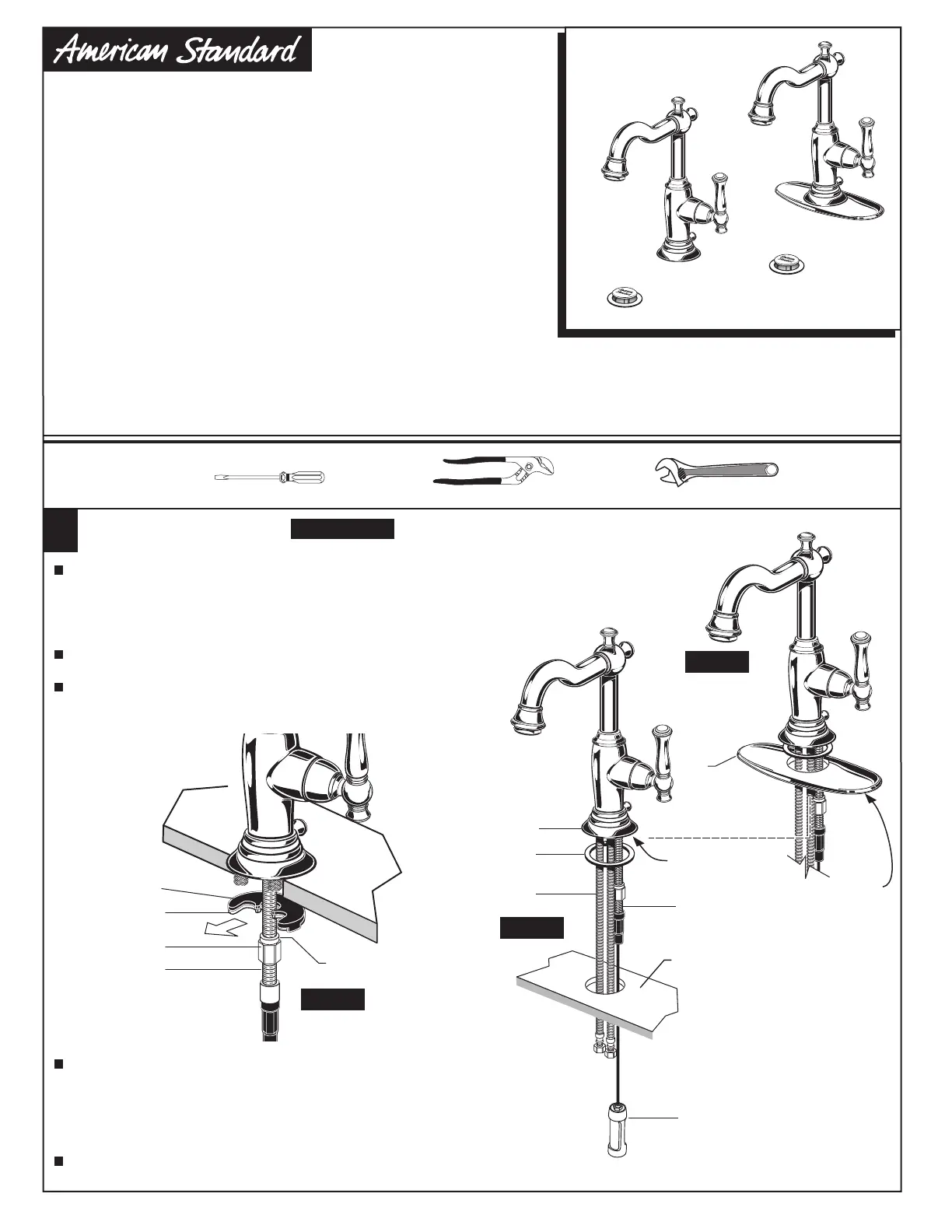

Installation

Instructions

MONOBLOCK LAVATORY

FAUCET with

Speed Connect™ Drain

Adjustable Wrench ScrewdriverChannel Locks

Recommended tools

7440.101

1

QUENTIN™

To ensure that your installation proceeds smoothly-please read these instructions carefully

before you begin.

Congratulations on purchasing your American Standard

faucet with Speed Connect drain, a feature found only

on American Standard faucets.

*Your new American Standard faucet is designed to work only with the Speed Connect drain.

Speed Connect Drain*

• Fewer parts, installs in less time

• Never needs adjustment

• Guaranteed to seal properly the first time, every time.

COLLAR ON

MOUNTING NUT

8

2

4

3

1

9

1

Turn off hot and cold water

supplies before beginning.

CAUTION

GROOVE

(FAUCET

BASE)

MOUNTING SURFACE

6

4

7

5

Fig.C.

Fig.B.

Fig.A.

PUTTY

IF REQUIRED

INSTALL FAUCET

Installation less ESCUTCHEON PLATE:

Seat SEAL (1) into under side of FAUCET BASE (2).

Feed FAUCET SUPPLIES (3), MOUNTING STUD (4) and DRAIN

CABLE ASSEMBLY (8) through the mounting hole of lavatory or

mounting surface. Fig. B.

Installation with ESCUTCHEON PLATE: Apply a light bead of plumbers putty

to underside of ESCUTCHEON PLATE (9) if mounting surface is uneven.Place ESCUTCHEON

PLATE (9) onto sink or mounting surface.

Feed FAUCET SUPPLIES (3), MOUNTING

STUD (4) and DRAIN CABLE ASSEMBLY (8) through

ESCUTCHEON PLATE and PUTTY

PLATE (9)

and mounting hole of lavatory or mounting surface. Fig. A.

From below, push GASKET (7) and RETAINING WASHER (5) onto

MOUNTING STUD (4). Secure Faucet with MOUNTING NUT (6),

pulling faucet to front of sink, so SUPPLIES (3) rests against

mounting hole. Before final tightening, make sure collar on

MOUNTING NUT (6) is seated into RETAINING WASHER (5).

Fig. C .

Adjust Faucet so that it is centered. Tighten MOUNTING NUT (6)

to complete faucet mounting.
