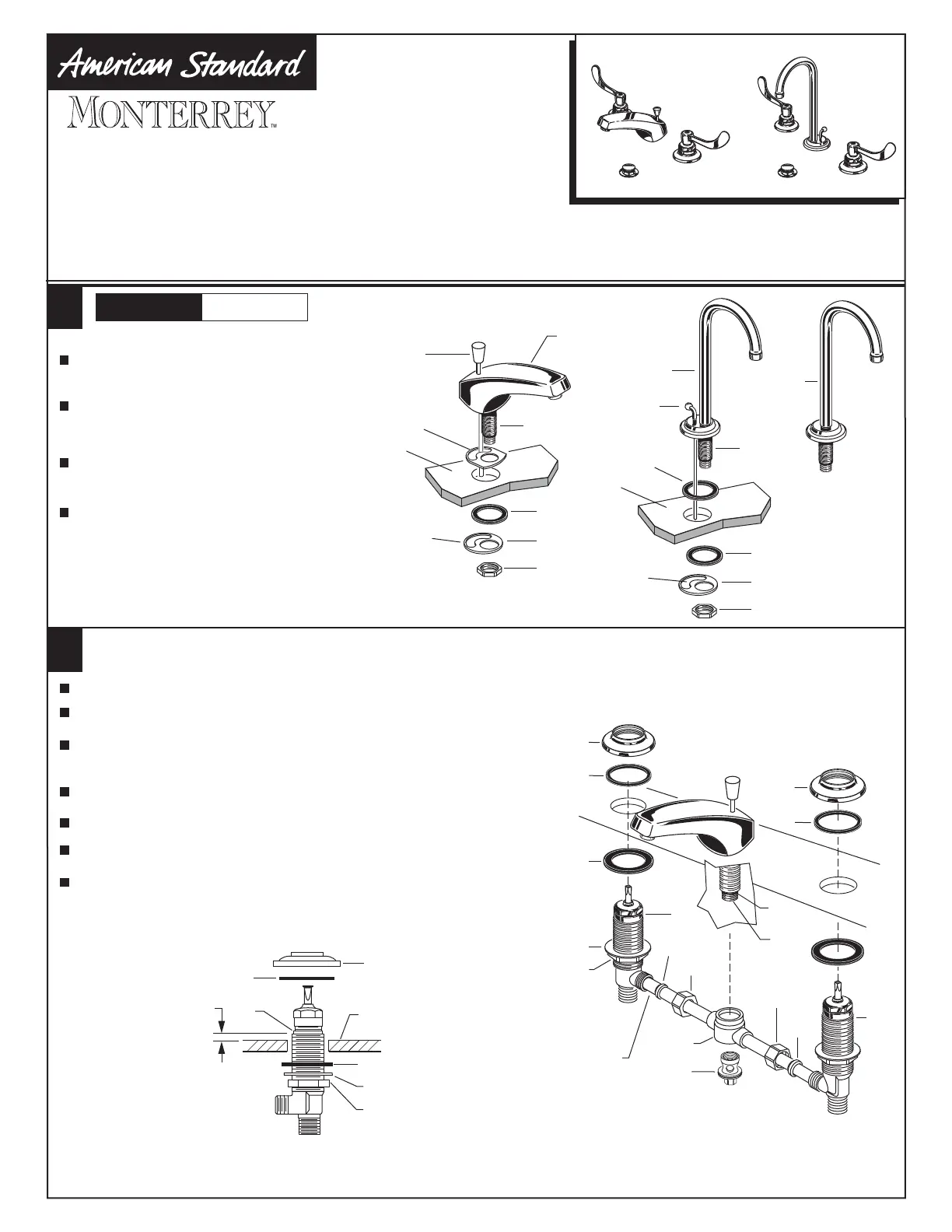

SPREAD LAVATORY

FAUCETS

Installation

Instructions

6500

6501

6502

6530

6531

6532

Thank you for selecting American-Standard...

the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--

please read these instructions carefully before you begin.

Certified to comply with ANSI A112.18.1M

60186 Rev. 1.3

1

GOOSE NECK

SPOUT (POP-UP)

CONVENTIONAL SPOUT

Insert SPOUT SHANK (1, 1a) through

center hole of SINK, making sure

RUBBER GASKET (2, 2a) is properly positioned.

CONVENTIONAL OR GN SPOUT ASSEMBLY

Assemble RUBBER WASHER (3),

RETAINER (4) and LOCKNUT (5) onto

threads of SPOUT SHANK (1, 1a) from

underside of SINK.

Insert LIFT ROD (6, 6a) through SPOUT

and slot of BRASS WASHER (4).

Align SPOUT and tighten LOCKNUT (5).

Be sure slot in BRASS WASHER (4) is

positioned to the rear as shown.

Turn off water at

main supply.

CAUTION

SINK

SLOT

SINK

SLOT

GOOSE NECK

SPOUT

10

3

5

5/16'' MIN.

MOUNTING SURFACE

11

11

1

2

3

1

2

1

3

4

6

6a

5

3

4

5

2

2a

2

Push TUBING (4) ends into VALVE (5) side outlets. Insert VALVES (5)

into mounting holes from underside of ledge.

Install LOCKNUTS (1), BRASS WASHERS (2) and RUBBER WASHERS (3) onto valve shanks.

Place RUBBER RING (11) into DECK ADAPTERS (10) and thread onto

valves until snug against internal stop.

Tighten LOCKNUT (1) to secure VALVE (5) position.

Slide FERRULE (13) and COUPLING NUT (14) to outlet of VALVE (5) and tighten

COUPLING NUT (14) firmly.

Connect HOT water supply to inlet of left VALVE and COLD water supply to inlet of

right VALVE using appropriate connector.

VALVE ASSEMBLY

HOT

COLD

13

5

14

8

7

9

6

14

13

4

5

10

MOUNTING

LEDGE

11

10

Press TEE (6) onto SPOUT SHANK (7) making certain that the O-RING (8) is

properly seated on SHANK (7). Push COUPLING (9) into TEE (6) and

attach to SPOUT SHANK (7) and tighten.

1a
