SAVE FOR FUTURE USE
7301962-100 Rev. C
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Closet Carrier Support
Putty Knife
Sealant
Tape Measure
Regular Screwdriver
Adjustable Wrench
Carpenters Level
Flush Valve
RECOMMENDED TOOLS AND MATERIALS

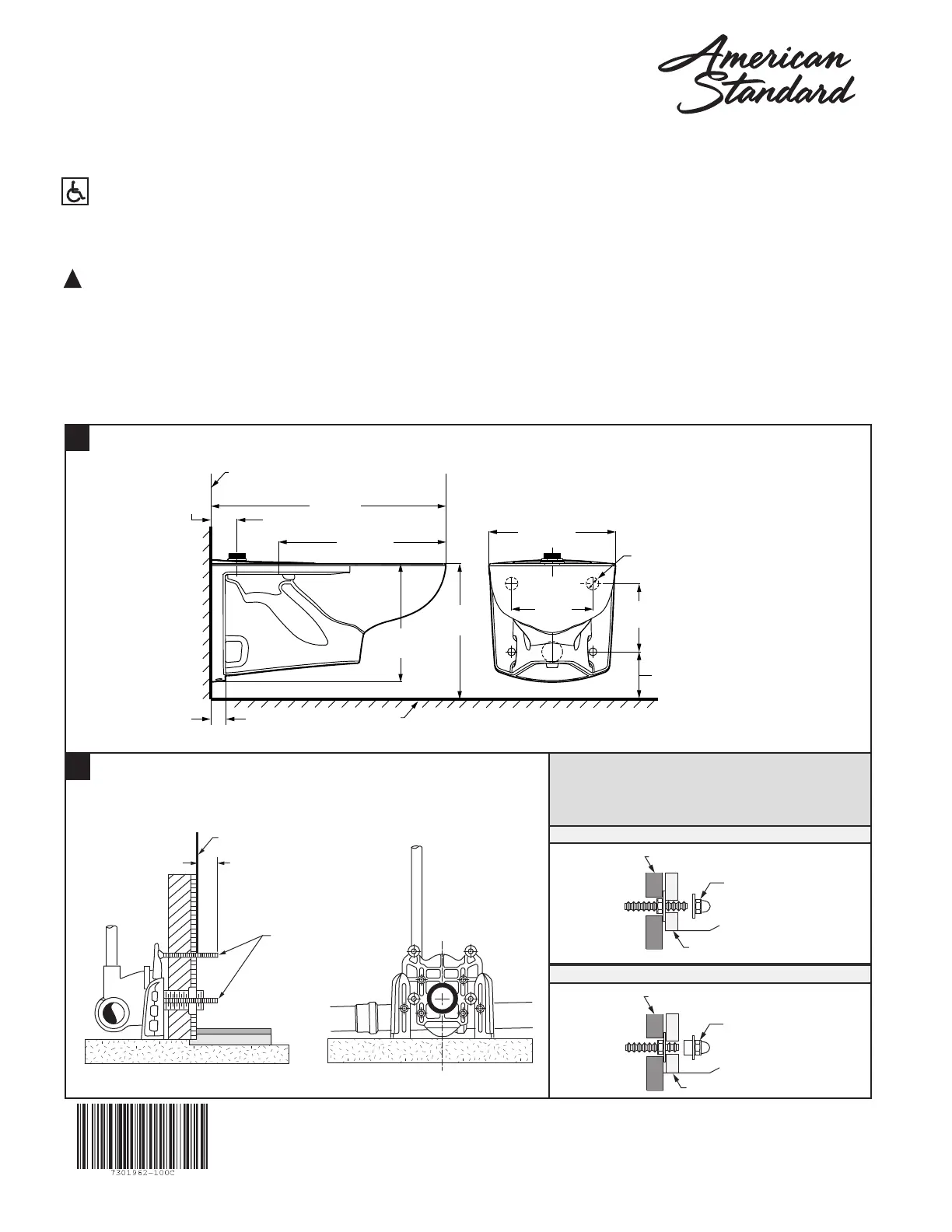

Models 3351.101, 3352.101, 3353.101, 3354.101, 2257.101, 2257.101.NAF, 2633.101, 2634.101
AFWALL
®
MILLENNIUM
™
FLUSHOMETER
WALL-MOUNTED TOILETS
INSTALLATION INSTRUCTIONS
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING
TO AVOID BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the Physically Challenged
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product
is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
!
1
2
Pictures may not exactly define contour of china
FIXTURE MOUNTING
Fixture studs should project 58mm (2-1/4")
from face of finished wall.
FRONT VIEW
SIDE VIEW
FINISHED WALL
58mm
(2-1/4")
(4) STUDS
FINISHED WALL
FINISHED
FLOOR
(4) Ø 22mm
(7/8") HOLES
73mm
(2-7/8")
660mm
(26")
470mm
(18-1/2")
333mm
(13-1/8")
356mm
(14")
191mm
(7-1/2")
133mm
(5-1/4")
229mm
(9")
381mm
(15")
41mm
(1-5/8")
NOTE: If carrier bolt does not extend or
is flush with china, use retrofit caps
7381285-200 (sold separately).
STANDARD
BOLT CAP
CHINA / TOILET
WALL
RETROFIT
BOLT CAP
WALL
CHINA / TOILET
STANDARD BOLT CAP
RETROFIT BOLT CAP
