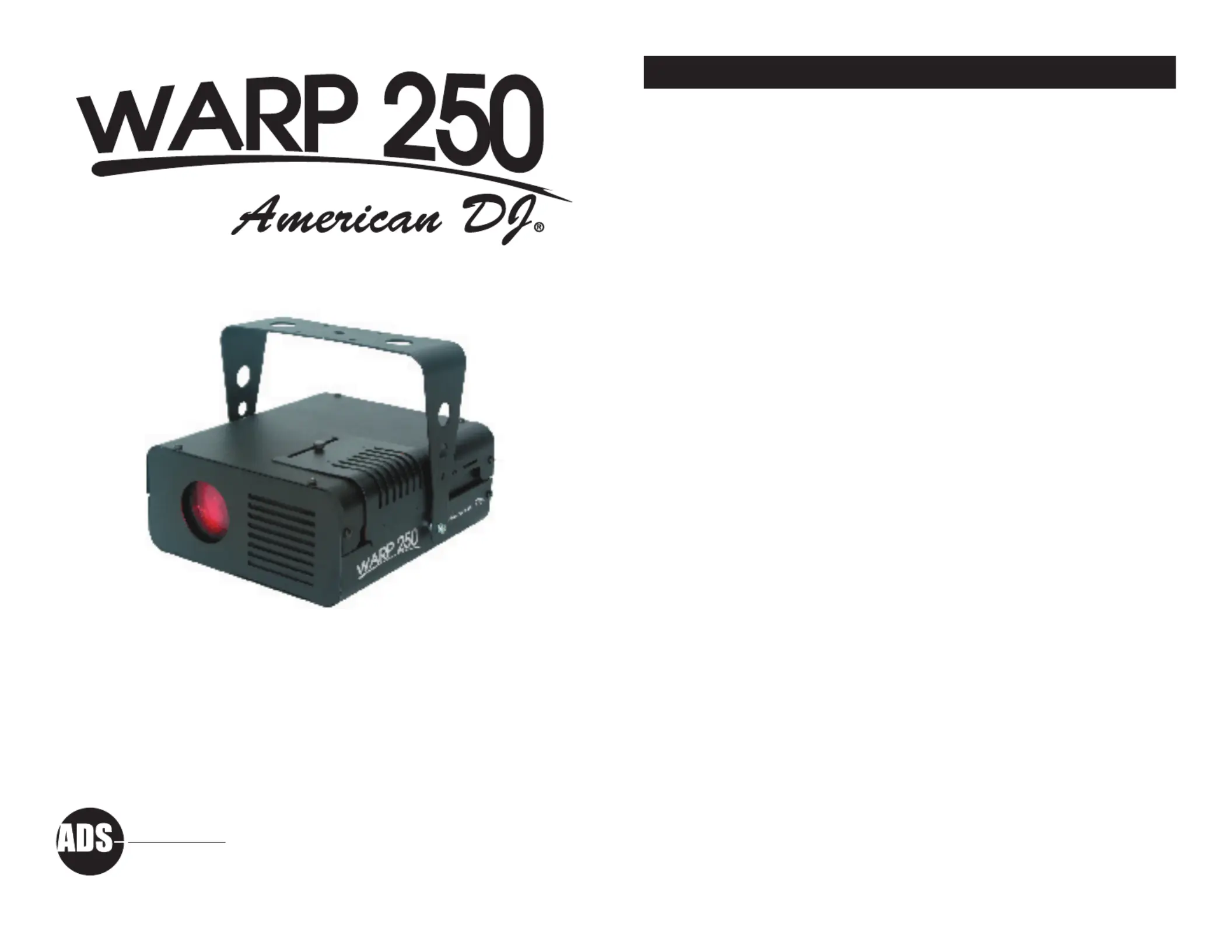

User Instructions
Unpacking: Thank you for purchasing the Warp 250™ by American
DJ . Every Warp 250™ has been thoroughly tested and has been ®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all accessories necessary to operate the unit
have arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Please, do not return this unit to your dealer without
rst contacting customer support.
Introduction: The Warp 250™ uses 11 color/gobo combinations to
create a colorful hightech moonflower effect, that changes to the beat
of music. This unit is part of the Advanced Drive Series (ADS). Any unit
that has the ADS logo is designed to interconnect and work together.
When several ADS effects are linked together they can form an inex-
pensive system that creates an intelligent look. This unit is best used in
multiples of four or more. For best results mix and match several ADS
units together with a fog or haze machine to enhance the beam output.
An optional MINI/C controller may be purchased separately and will
control a blackout function.
Warning! The 1/4” jack on the unit is for the optional MINI/C. Do not
attempt to connect an audio signal to this jack, this will damage the
PC board and void your manufactures warranty!
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to 5:
00 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact American DJ customer support.®
Warp 250™ Introduction
© ® American DJ www.americandj.com Warp 250™ Instruction Manual Page 2
ADVANCED
DRIVE SERIES
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit
• Do not attempt to operate this unit if the power cord has been fray-
ed or broken. Do not attempt to remove or break off the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short
• Disconnect from main power before making any type of connection
• Do not remove the cover under any conditions. There are no user
serviceable parts inside
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall
• Do not attempt to operate this unit, if it becomes damaged
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties
• During long periods of non-use, disconnect the unit’s main power
• Always mount this unit in safe and stable matter
• Power cords should be routed so they are not likely to be walked
on, pinched by items placed upon or against them.
• Cleaning -The xture should be cleaned only as recommended by
the manufacturer. See page 9 for cleaning details
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (in-
cluding ampliers) that produce heat.
• The xture should be serviced by qualied service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
© ® American DJ www.americandj.com Warp 250™ Instruction Manual Page 3 American DJ www.americandj.com Warp 250™ Instruction Manual Page 4© ®
• Advanced Drive Series Lighting Effect - Units Link Together with
other Advanced Drive Series Lights via XLR In and Out
• MINI/C Blackout Controller (Sold Separately)
• Fan Cooled
• 2 Sound Activated Modes: Slow Sound Active or Fast Sound Active
• Master/Slave Compatible
• Includes Built-In Mounting Bracket
• ZB-ELC 24v/250w Lamp
• Volume Sensitivity Knob
• 11 Gobos
• 10 Colors Plus White
Introduction..........................................................................2
Features................................................................................3
Safety Precautions...................................................................3
Operation..............................................................................5
Dipswitch Settings..............................................................6
Set-Up................................................................................7
Lamp Replacement...............................................................8
Cleaning.............................................................................9
Trouble Shooting.............................................................9
Warranty............................................................................10
Specifications...........................................................................11
Warp 250™ Warranty Registration
The Warp 250™ carries a one year (365 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) num-
ber. The R.A. number must be clearly written on the outside of the
return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included
in the shipping container. If the unit is under warranty, you must pro-
vide a copy of your proof of purchase invoice. You may obtain a R.A.
number by contacting customer support at (800) 322-6337.
Warp 250™ Features
Warp 250™ Contents
Warp 250™ Safety Precautions
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Warp 250™ General Instructions
Operating Modes: You can operate the Warp 250
™
in two different
modes:
• Stand-Alone mode (Usually for single unit operation) - The unit will
react to sound, chasing through the built-in program. You can also
use the optional MINI/C remote control to blackout the unit.
• Master/Slave mode - Allows you to daisy chain up to 16 ADS fix-
tures together for a synchronized light show. The fixtures will react
to sound chasing through the built-in program. You can also use the
optional MINI/C remote control to blackout the units.
NOTE: Stand-Alone and Master/Slave operation require a sound
source to operate properly. The units will blackout to conserve lamp
life when inactive for more than 15 seconds. A single sound source
will reactivate the units.
Power Supply: Before plugging your unit in, be sure the source
voltage in your area matches the required voltage for your American
DJ Warp 250.™ Because line voltage may vary from venue to venue, ®
you should be sure your unit voltage matches the wall outlet voltage
before attempting to operate you xture.
Stand Alone Mode:
1. To operate a single unit or several units as individuals in stand
alone mode, flip dipswitch number 1 to the “on” position (see
page 6) and plug the unit(s) in. If you are running more than one
unit in stand alone mode do not link the units together.
2. Adjust the reaction dipswitch (dipswitch 2) on the side the unit
to create the effect you want. When this dipswitch is in the “on”
position the light will have a slower reaction to sound, when this
switch is in the “off” position this unit will react faster to sound.
3. Use the sound sensitivity knob on the side of the unit to make the
unit more or less sensitive to sound. This will effect sound
sensitivity and not the reaction. Turing the knob clockwise will
make the unit more sensitive to sound and turning the knob
counter-clockwise will make the unit less sensitive to sound.
Master-Slave Operation (Sound Active): This operations allows
you to link up to 16 ADS units together to create a synchronized light
show with an intelligent look. In Master-Slave operation one unit will
act as the controlling unit, the others will react to the controlling units
Warp 250™ Operation
programs. Any unit can act as a master or a slave.
1. Using standard XLR microphone cables, daisy chain your ADS
units together via the XLR connectors on the rear of the unit.
Remember the Male XLR connector is the input and the Female
XLR is the output. The rst unit in (master) will use the female XLR
connector only. Refer to the set-up procedures beginning on page
7.
2. Follow the Master-Slave dipswitch chart below for proper dip-
switch settings.
3. The optional MINI/C Controller may be used in this operation
mode to control a blackout function.
4. Adjust the reaction dipswitch (dipswitch 2) on the side the unit
to create the effect you want. When this dipswitch is in the “on”
position the light will have a slower reaction to sound, when this
switch is in the “off” position this unit will react faster to sound.
5. Use the sound sensitivity knob on the side of the unit to make the
unit more or less sensitive to sound. This will effect sound
sensitivity and not the reaction. Turing the knob clockwise will
make the unit more sensitive to sound and turning the knob
counter-clockwise will make the unit less sensitive to sound.
Warp 250™ Operation
© ® American DJ www.americandj.com Warp 250™ Instruction Manual Page 5 American DJ www.americandj.com Warp 250™ Instruction Manual Page 6© ®

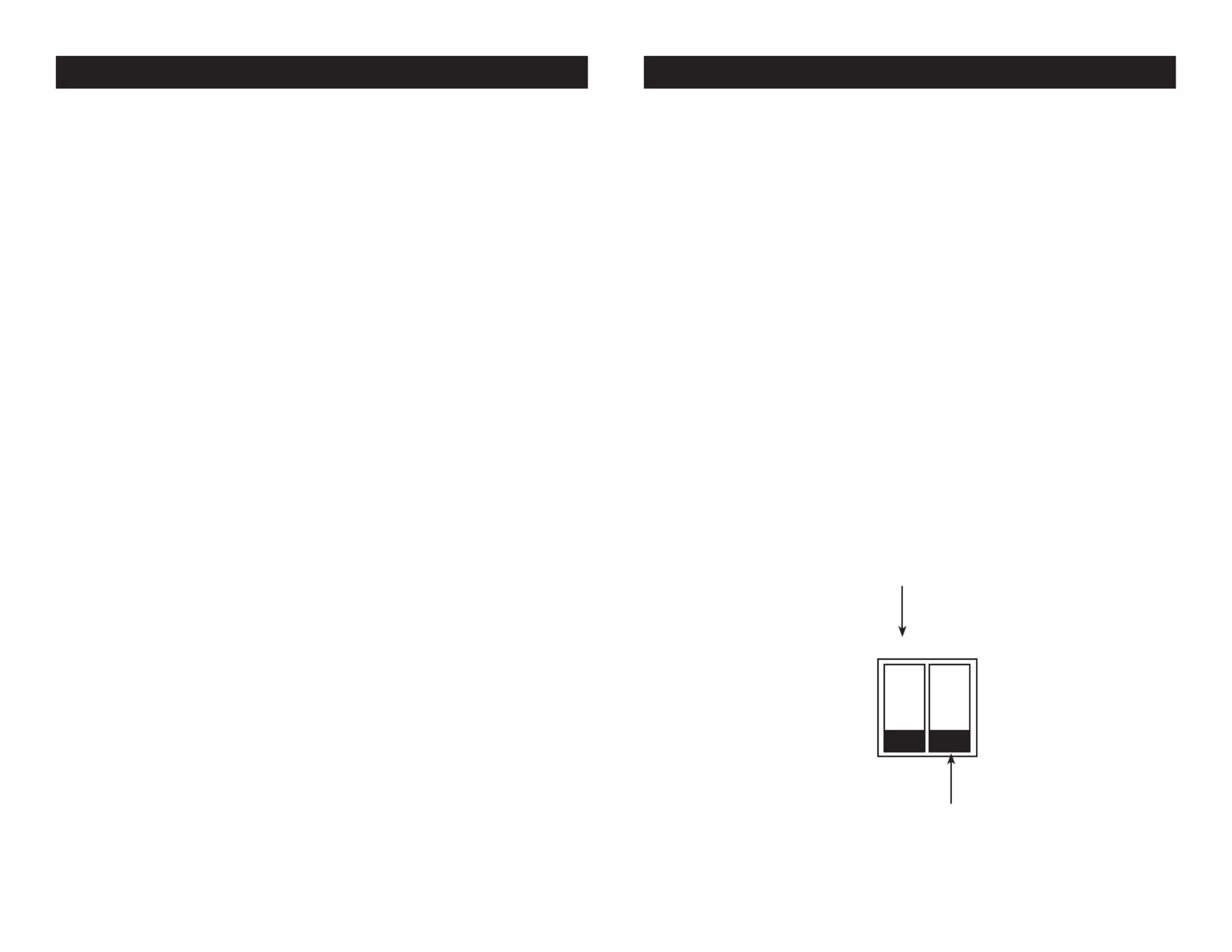

Dipswitch 1 - Controls Master/Slave Mode
Dipswitch “ON” = Master Mode
Dipswitch “OFF” = Slave Mode
Dipswitch 2 - Controls Sound Active Mode
Dipswitch “ON” = Slow Reaction to Sound
Dipswitch “OFF” = Fast Reaction to Sound
Dipswitches are located on the
side panel of the unit.
1 2
Product specificaties
| Merk: | American Audio |
| Categorie: | Niet gecategoriseerd |
| Model: | Warp 250 |
Heb je hulp nodig?
Als je hulp nodig hebt met American Audio Warp 250 stel dan hieronder een vraag en andere gebruikers zullen je antwoorden
Handleiding Niet gecategoriseerd American Audio
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
Handleiding Niet gecategoriseerd
- CE Labs
- Maxcom
- Arktic
- XD-Design
- Alcatel
- Gourmetmaxx
- Multibrackets
- Zoom
- Signature Hardware
- Garmin
- Nimbus
- AeroCool
- SKB
- Unicol
- Dell
Nieuwste handleidingen voor Niet gecategoriseerd
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
15 Augustus 2025
