Pagina 1/19

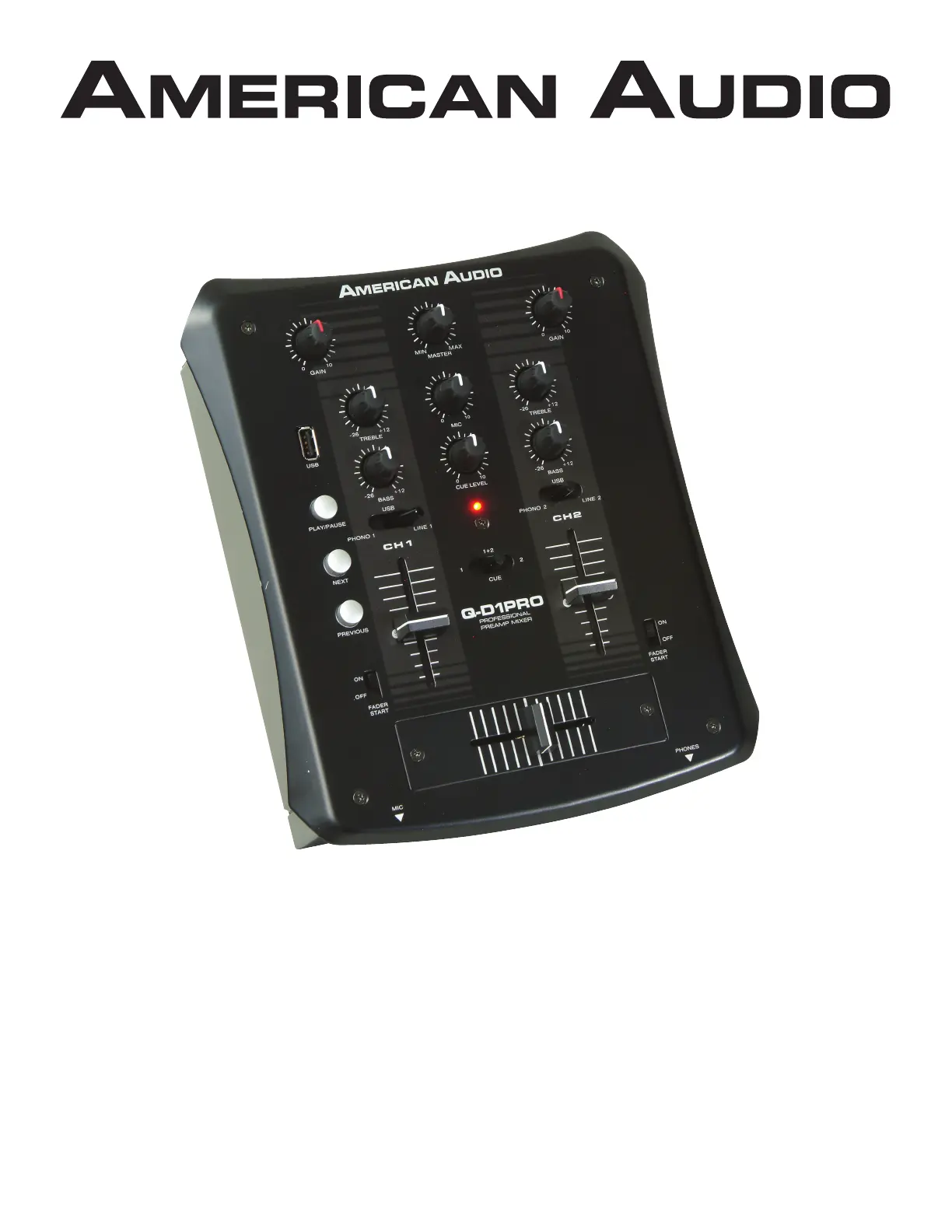

Q-D1 PRO
Professional Preamp Mixer
User Instructions
American Audio
4295 Charter Street
Los Angeles Ca. 90058
www.AmericanAudio.us
3/07
©American Audio® - www.AmericanAudio.us - Q-D1 PRO Instruction Manual Page 2
MAIN FEATURES....................................................................................................................................2
WARRANTY REGISTRATION..................................................................................................................2
SAFETY PRECAUTIONS........................................................................................................................3
ELECTRICAL SAFETY PRECAUTIONS.................................................................................................4
SAFETY INSTRUCTIONS.......................................................................................................................5
UNPACKING...............................................................................................................................6
INTRODUCTION....................................................................................................................................6
SET-UP PRECAUTIONS.........................................................................................................................6
QUICK START.........................................................................................................................................7
FUNCTIONS AND CONTROLS
FRONT PANEL............................................................................................................................8
REAR PANEL............................................................................................................................11
TYPICAL MIXER SET-UP .....................................................................................................................13
CLEANING......................................................................................................................15
CROSS FADER REPLACEMENT..........................................................................................................15
WARRANTY.........................................................................................................................................16
SPECIFICATIONS.......................................................................................................................17
Q-D1 PRO CONTENTS
Q-D1 PRO MAIN FEATURES
• Fader “Q” Start • Independent Gains Per Channel
• Q-Start Compatible (for use with compatible • Front Access Headphone Jack
(American Audio CD Players ) • Low Residue Resistance Crossfader
• Equipped with high quality Crossfader • 2 Band EQ per channel
(Replaceable) • 2 Phono, & 2 Line Level Inputs
• High output to headphones • Turntable Ground Prong
• Cue Mixing • Front Access 1/4” Mic Jack
• Extremely clean signal to noise ratio • Record Out
• USB Input
The Q-D1 PRO carries a one year limited warranty. Please fill out the enclosed warranty card to
validate your purchase. All returned service items whether under warranty or not, must be freight pre-
paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A. number
must also be written down on a piece of paper and included in the shipping container. If the unit is
under warranty, you must provide a copy of your proof of purchase invoice. You may obtain a R.A.
number by contacting customer support at (800) 322-6337.
Q-D1 PRO WARRANTY REGISTRATION
Please Note: Specications and improvements in the design of this unit and this manual are subject
to change without any prior written or published notice.
For service parts visit http://parts.americandj.com
