User Instructions
American DJ
6122 S. Eastern Ave.
Los Angeles Ca. 90040
www.americandj.com
Introduction: The American DJ Projector 150™ is a truly unique ®
lighting product. This unit can be used to create three different types
of effects when used with optional attachments. The unit ships with
four useful projection slides to project different patterns on a wall
or at surface. Customized patterns may be made at home using
your computer, printer, and transparencies. The optional 35mm slide
attachment allow you to project a standard 35mm slide. The optional
oil wheel allows you to use the projector as a liquid oil lamp.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments
or suggestions. For service related issue please contact American
DJ . Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. ®
Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact American DJ.
PLEASE recycle the shipping carton when ever possible.
© ®American DJ Supply - www.americandj.com - Projector 150™ Instruction Manual Page 2
Projector 150™ Introduction
Rev 1/09
Unpacking: Every Projector 150™ has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping. If
the carton appears to be damaged, carefully inspect your units for any
damage and be sure all accessories necessary to operate the system
have arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for
further instructions. Please do not return the system to your dealer
without rst contacting customer support.
Projector 150™ Unpacking
Projector 150™ Precautions
© ®American DJ Supply - www.americandj.com - Projector 150™ Instruction Manual Page 3
Reset Breaker:
To reset the breaker, push the breaker button in until you hear it pop
back in to place. If the breaker continues to pop, stop using the unit
and contact customer support the unit may require service.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit
• Be sure that the local power outlet match that of the required volt-
age for your unit
• Do not attempt to operate this unit if the power cord has been fray-
ed or broken. Do not attempt to remove or break off the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short
• Disconnect from main power before making any type of connection
• Do not remove the cover under any conditions. There are no user
serviceable parts inside
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall
• Do not attempt to operate this unit, if it becomes damaged
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties
• During long periods of non-use, disconnect the unit’s main power
• Always mount this unit in safe and stable matter
• Power cords should be routed so they are not likely to be walked
on, pinched by items placed upon or against them.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 7 for cleaning details
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (in-
cluding amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Projector 150™ Warranty Registration
The Projector 150™ carries a one year (365 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) num-
ber. The R.A. number must be clearly written on the outside of the
return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included
in the shipping container. If the unit is under warranty, you must pro-
vide a copy of your proof of purchase invoice. You may obtain a R.A.
number by contacting customer support at (800) 322-6337.
Projector 150™ Features
• Includes Built-In Hanging Yoke
• Includes Four Transparencies
• Easy Access Lamp Replacement
• Optional 35mm Adaptor
• Optional Oil Wheel Attachment
• Fully Focusing
• ZB-FCS 24v/150w, 50hrs.
Halogen Lamp Warning: This fixture is fitted
with halogen lamps which are highly susceptible
to damage if improperly handled. Never touch the
lamps with your bare fingers as the oil from your
hands will shorten lamp life. Also, never move the
fixture until the lamps have had ample time to cool.
Remember, lamps are not covered under warranty
conditions.
Projector 150™ Halogen Lamp Precautions
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Projector 150™ General Instructions
© ®American DJ Supply - www.americandj.com - Projector 150 ™ Instruction Manual Page 3
Introduction: The Projector 150’s wheel will rotate slowly making a
unique, vibrant effect that produces a multi-colored and multi-textured
effect. For best results, shine on a light colored wall or ceiling (or any
surface). Adjust focusing lens to desired effect. Use an American DJ ®
high quality mobile pro fog machine.
Operating Instructions: This unit has been fitted with a lamp at the
factory and is ready to go. Plug the unit into a matching power out-
let. Motor rotation will start when unit is plugged in. For best results,
shine on a light colored wall or ceiling (or any surface). Adjust focus-
ing lens to desired effect. Use an American DJ high quality mobile ®
pro fog machine or other special effects smoke to enhance the
beams. This will make the colored beams of light more visible and
enhance the overall effect.
Mounting: When used with included mounting bracket, this unit may
be mounted in any safe position or set on a flat stable surface.
Caution! Be sure not to obstruct cooling vents and keep this unit in a
well ventilated area. Never open the unit while in use. Avoid touching
the lamps, the lamp will get extremely hot under normal usage and
may cause serious injury.
Projector 150™ Operation
Due to fog residue, smoke, and dust, cleaning the internal and exter-
nal optical lenses must be carried out periodically to optimize light
output.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Use a brush to wipe down the fan grill.
3. Clean the external optics with glass cleaner and a soft cloth every
20 days. Situation may very. If used heavily in clubs with lots of
fog, cleaning may be required more often.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the
unit in.
Cleaning frequency depends on the environment in which the fixture
operates (i.e. smoke, fog residue, dust, dew). Proper cleaning may
extend the life of your unit drastically
Projector 150™ Cleaning
© ®American DJ Supply - www.americandj.com - Projector 150™ Instruction Manual Page 4© ®American DJ Supply - www.americandj.com - Projector 150™ Instruction Manual Page 5
Projector 150™ Transparencies
Projector 150™ Optional Accessories

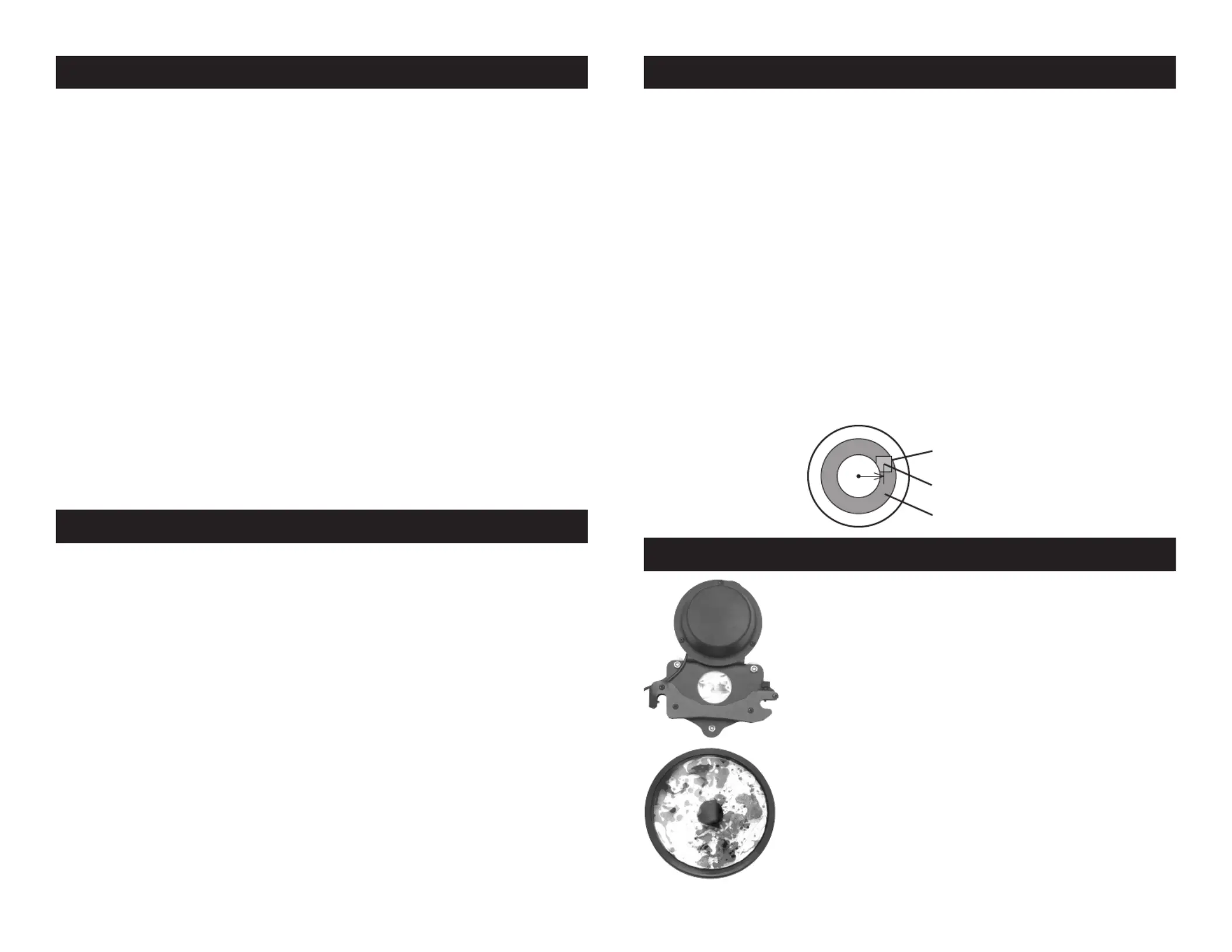

35mm Slide Adaptor - This adaptor allows allow
the unit to project a standard 35mm slide to a
wall or at surface. This adaptor can be used to
consistently rotate the slide in one direction, or
disconnect the power to connection to the slide
adaptor to project the without any rotation.
Oil Wheel - This wheel may be used to project an
oil wheel effect to a wall or at surface. With this
wheel the effect is constantly changing. The wheel
is lled with different color oils that constantly shift
directions caused by the spinning of the wheel
and the warming effect from the lamp.
The projector transparencies can be changed with custom transpar-
encies created on a home computer and ink jet printer. With a little
creativity anyone can create unique patterns, logos, and greetings to
be projected to a wall, this is a sure way to tailor an event or evening.
For best result when creating a custom transparencies, please follow
the guidelines listed below;
1. Try not to use heavy or dark colors. These colors will not project
very well and may project as black.
2. Any transparency may work, but for best result use 3M Universal
Ink Jet Transparency Film (CG3480) or similar.
3. The transparency should have a radius of 5 1/2 inches (14mm).
This will allow the transparency to fit between the two pieces of
glass without slipping.
4. If a symbol or text is going to part of the transparency. The
image should be no wider than 1” and the center of the image
should be 1 1/2” from the center.
Viewable Text or Symbol
Area
Center of Text or Symbol
Area = 1.5” From Center
Text or Symbol should be
no wider than 1”
