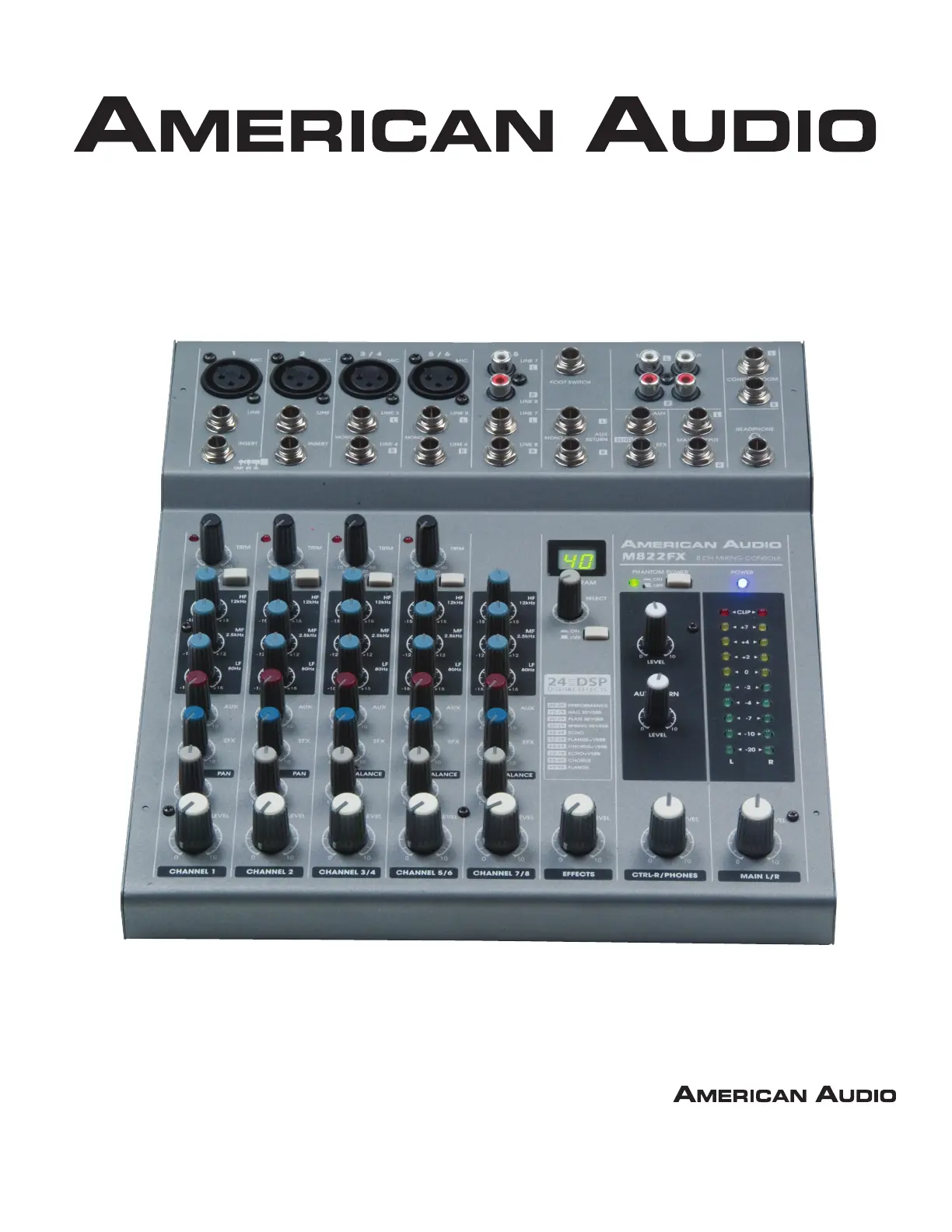

User Guide
and Reference Manual
6/08
M822FX
6122 S. Eastern Ave
Los Angeles, CA 90040
www.AmericanAudio.us
©American Audio® - www.americanaudio.us - M822FX Instruction Manual Page 2
M822FX CONTENTS
M822FX MaiN FEaTURES
MAIN FEATURES....................................................................................................................................2
ELECTRICAL PRECAUTIONS................................................................................................................3
SAFETY PRECAUTIONS........................................................................................................................5
INTRODUCTION....................................................................................................................................6
SET-UP PRECAUTIONS.........................................................................................................................6
UNPACKING.........................................................................................................................................7
QUICK START........................................................................................................................................7
CONTROLS AND FUNCTIONS
CHANNEL CONTROL.................................................................................................................8
MAIN CONTROL.......................................................................................................................11
INPUT & OUTPUT CONNECTIONS.........................................................................................13
CONNECTORS..............................................................................................................15
HOME/STUDIO RECORDING SET-UP.................................................................................................17
LIVE PERFORMANCE SET UP.............................................................................................................18
EFFECTS LIST......................................................................................................................................19
CLEANING......................................................................................................................21
TROUBLESHOOTING......................................................................................................................21
WARRANTY.........................................................................................................................................22
SPECIFICATIONS.....................................................................................................................23
• 2 Mono & 3 Stereo Channel Inputs
• Stereo Main Outputs & ALT 3/4 Output
• Trim With Peak LED, HPF, 3-Band EQ, 1 Aux, 1 EFX & Pan For Mono Input
• Main L/R, Headphone/Control Room, Aux Return, Tape Level, & Phantom Power
• 24-Bit DSP Effect, 100 Presets, EFX On/Off & EFX Level
• Tape With PFL Switch, HP/Control Room & Phantom Power
• 4 XLR Mic/Inputs
• XLR & 1/4” Phone Jack Balanced & 1/4” Phone Jack for Mono Input
• XLR & 1/4” Phone Jack For Stereo (Ch 3-Ch 6) &
1/4” Phone & Phono Jack For Stereo Input (Ch 7-Ch 8)
• 1/4” Phone Jack For Stereo Return & Phono Jack For Tape In
• 1/4” Phone Jack For Main, Aux Send, EFX Send, Control Room & Headphone
• Phono Jack For Tape & 1/4” Phone Jack For Footswitch
