Pagina 1/8
American DJ
4295 Charter Street
Los Angeles CA. 90058
www.americandj.com
Revised 8/01
User Instructions
Unpacking: Thank you for purchasing the Centurion™ by American
DJ . Every Centurion™ has been thoroughly tested and has been ®
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without rst contact-
ing customer support.
Introduction: This unit use a single color/gobo wheel combination
for vibrant colors and extravagant gobo patterns. The Centurion™ is
an intelligent fixture that can operate in DMX mode, as a stand alone
sound active piece, or in a Master/Slave configuration. The Centurion™
comes with several build in programs and is best used in multiples of
four. This piece is best used with a fog or haze machine to enhance
the beam output. When used in DMX mode the fixture requires 3 DMX
channels. When used as a stand alone unit or when used in multiples
linked in a master/slave configuration an optional IRC/2 controller may
be used to control a blackout function.
Customer Support: American DJ provides a toll free customer sup-®
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ .®
Centurion™ General Information
© ®American DJ - www.americandj.com - Centurion™ Instruction Manual Page 2
© ®American DJ - www.americandj.com - Centurion™ Instruction Manual Page 3
• EFP 12v/100w Lamp
• DMX-512 Compatible
• 14 Colored Gobo Combinations, Plus White Spot
• Fan Cooling.
• Built-In 15 Second Lamp Life Protection Circuitry
• Master/Slave Operation
• Linkable
Centurion™ Main Features
The Centurion™ carries a one year (365 days) limited warranty.
Please fill out the enclosed warranty card to validate your purchase.
All returned service items whether under warranty or not, must be
freight pre-paid and accompany a return authorization (R.A.) number.
If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. Please contact American DJ customer support for ®
a R.A. number.
Centurion™ Product Registration
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage
for your unit.
• Do not attempt to operate this unit if the power cord has been frayed
or broken.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when itʼs cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors
voids all warranties.
• During long periods of non-use, disconnect the unitʼs main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 13 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (includ-
ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Centurion™ Safety Precautions
© ®American DJ - www.americandj.com - Centurion™ Instruction Manual Page 4
To optimize the performance of this product, please read these operat-
ing instructions carefully to familiarize yourself with the basic operations
of this unit. These instructions contain important safety information
regarding the use and maintenance of this unit. If you do not wish to
read through the manual, listed below are the master/slave dip switch
setting. Link the units together using microphone cables and follow the
dip switch chart for sound activation mode. Please keep this manual
with the unit, for future reference.
Centurion™ Quick Start Instructions

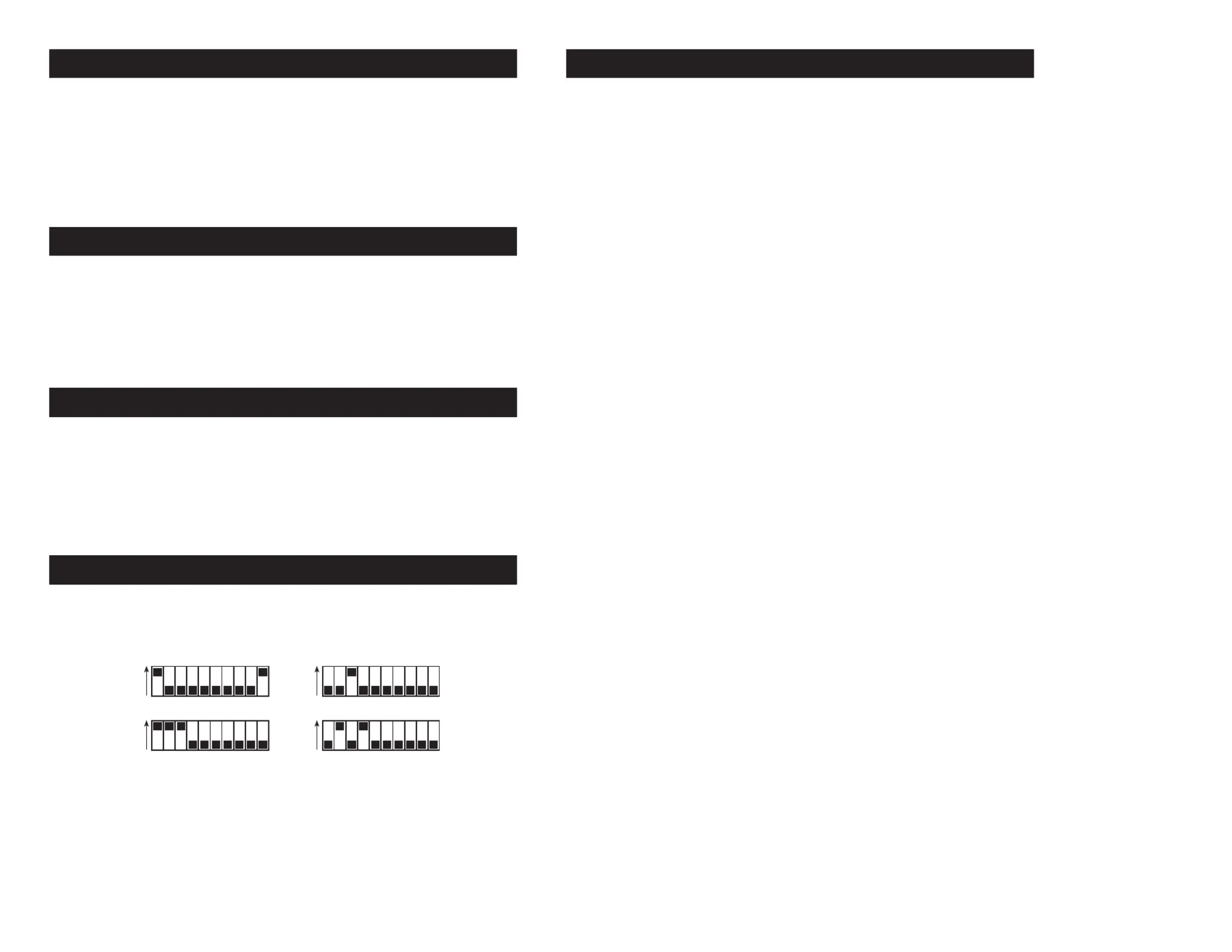

Centurion™ Master/Slave Settings
This chart details the Master/Slave dip switch setting for Master/Slave
configuration. Use this configuration only when you will be using your
fixtures in a Master/Slave configuration. Be sure the number 2 function
switch is set to the on position for sound-active operation.
ON ON
ON ON
1 98765432
10
Head 4
1 98765432
10
Head 3
1 98765432
10
Head 2
1 98765432 10
Master - Head 1
© ®American DJ - www.americandj.com - Centurion™ Instruction Manual Page 6© ®American DJ - www.americandj.com - Centurion™ Instruction Manual Page 5

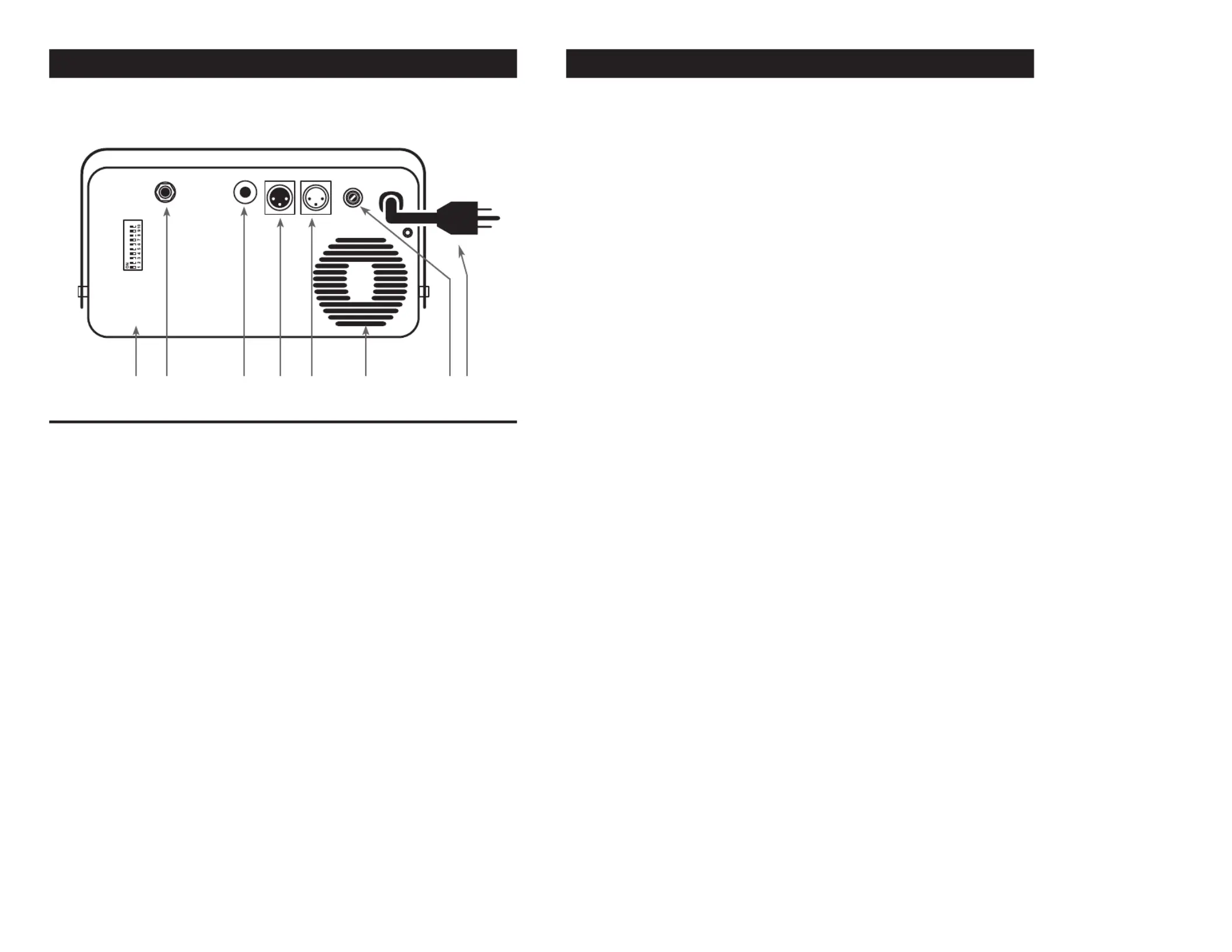

Centurion™ Controls and Functions
REAR
1. Dip Switches -
These switches serve two functions. In master slave mode these
switches are used to assign a specic head address. In DMX mode
these switches are used to assign a DMX address to the unit. In DMX
mode each switch corresponds to a specic value based on binary
code. See page 7 for a detailed explanation of DMX binary code.
2. IRC/2 Controller Jack -
This is for use the optional IRC/2 Black out controller only. Do not
attempt to connect an audio signal this jack, this will damage the
PC board and void your manufactures warranty!
3. Microphone -
This microphone receives external low frequencies to trigger the unit in
Sound-Active and Master/Slave mode.
4. XLR Input Jack -
This jack is used to accept an incoming DMX signal or Master/Slave
signal.
Centurion™ Controls and Functions
2 85431 76
5. XLR Output Jack -
This jack is used to transmit the incoming DMX signal to another DMX
xture, or in master/slave mode transmit a Master/Slave signal to the
next Centurion™ in the chain. For best results in DMX or Master/Slave
mode terminate this jack if it is the last unit in the chain. See “Termina-
tor” on page 11.
6. Cooling Fan -
Keep the fan grill clean. Never block the fan vents, always allow at least
four inches between the fan and any other surface. Improper cooling
may result in premature lamp failure.
7. Fuse Holder -
This housing stores the 5 amp GMA protective fuse. Always replace
with the exact same type fuse, unless otherwise instructed, by an
authorized American DJ service technician.®
8. Power Cord -
Connect only to a matching power outlet. Never use this xture is the
ground prong has been removed or broken off.
